Power Mirror Control Module: Locations

Door Component Views

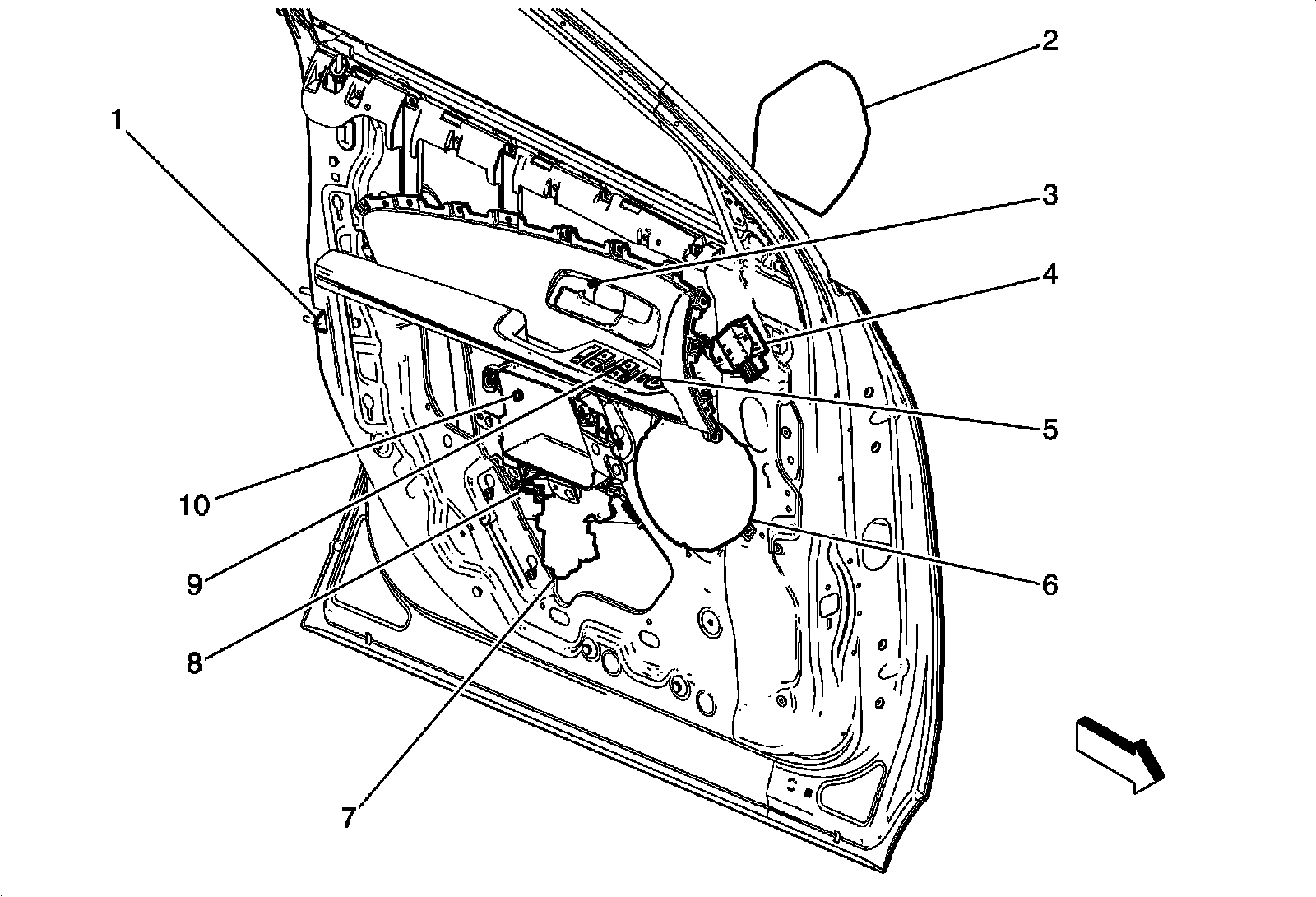

Driver Door Components




1 - A23D Door Latch Assembly - Driver
2 - A9A Outside Rearview Mirror - Driver
3 - E1C Accent Lamp - Driver Door Handle (LTZ or SLT)
4 - K96L Mirror Control Module - Left (LTZ or SLT)
5 - S52S Outside Rearview Mirror Switch
6 - P19G Speaker - Left Front
7 - M74D Window Motor - Driver
8 - B63LF Side Impact Sensor - Left Front
9 - S79D Window Switch - Driver
10 - E1D Accent Lamp - Driver Door (LTZ or SLT)
