Memory Positioning Module: Diagrams




Component Connector End Views

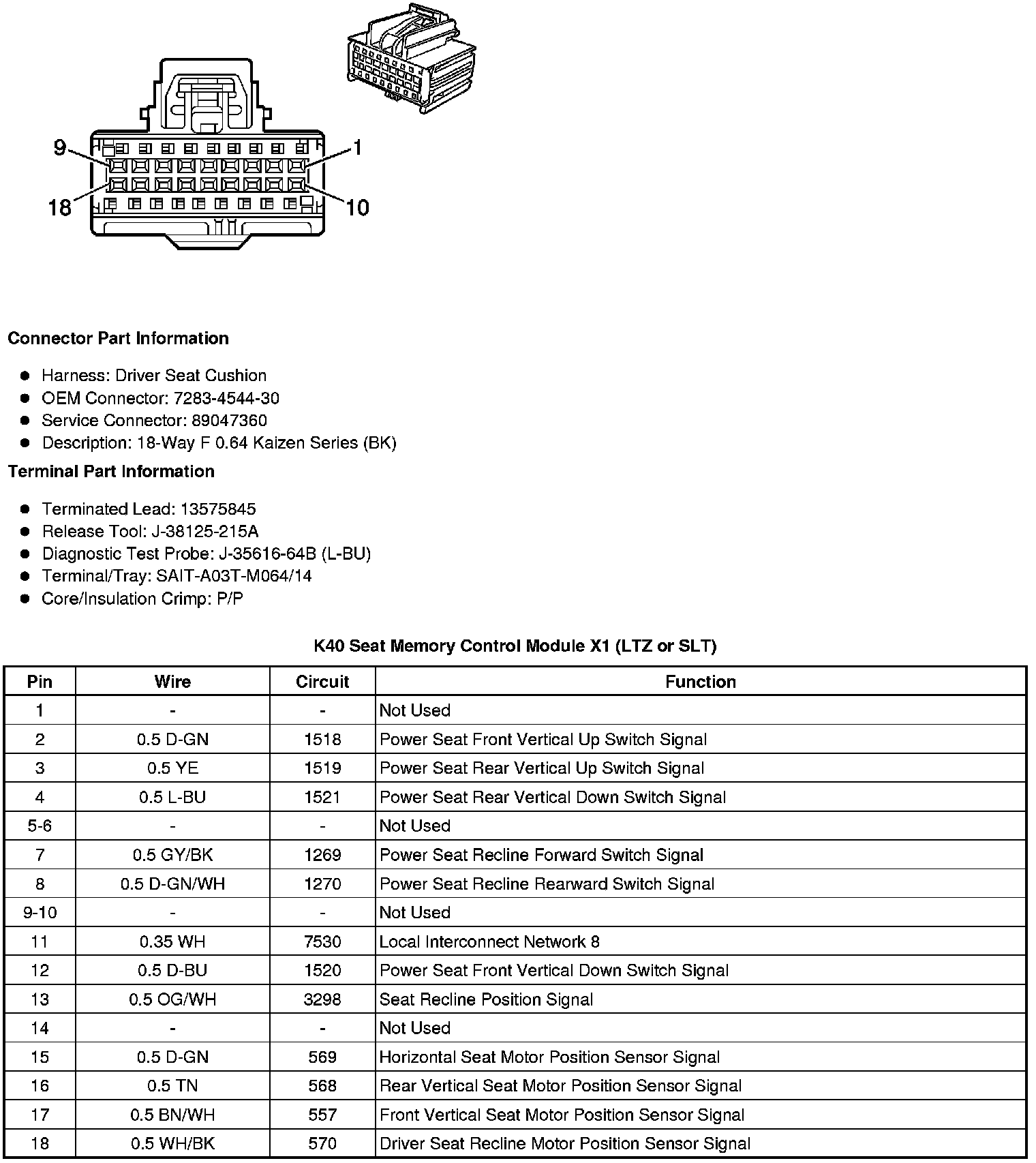

K40 Seat Memory Control Module X1 (LTZ or SLT)

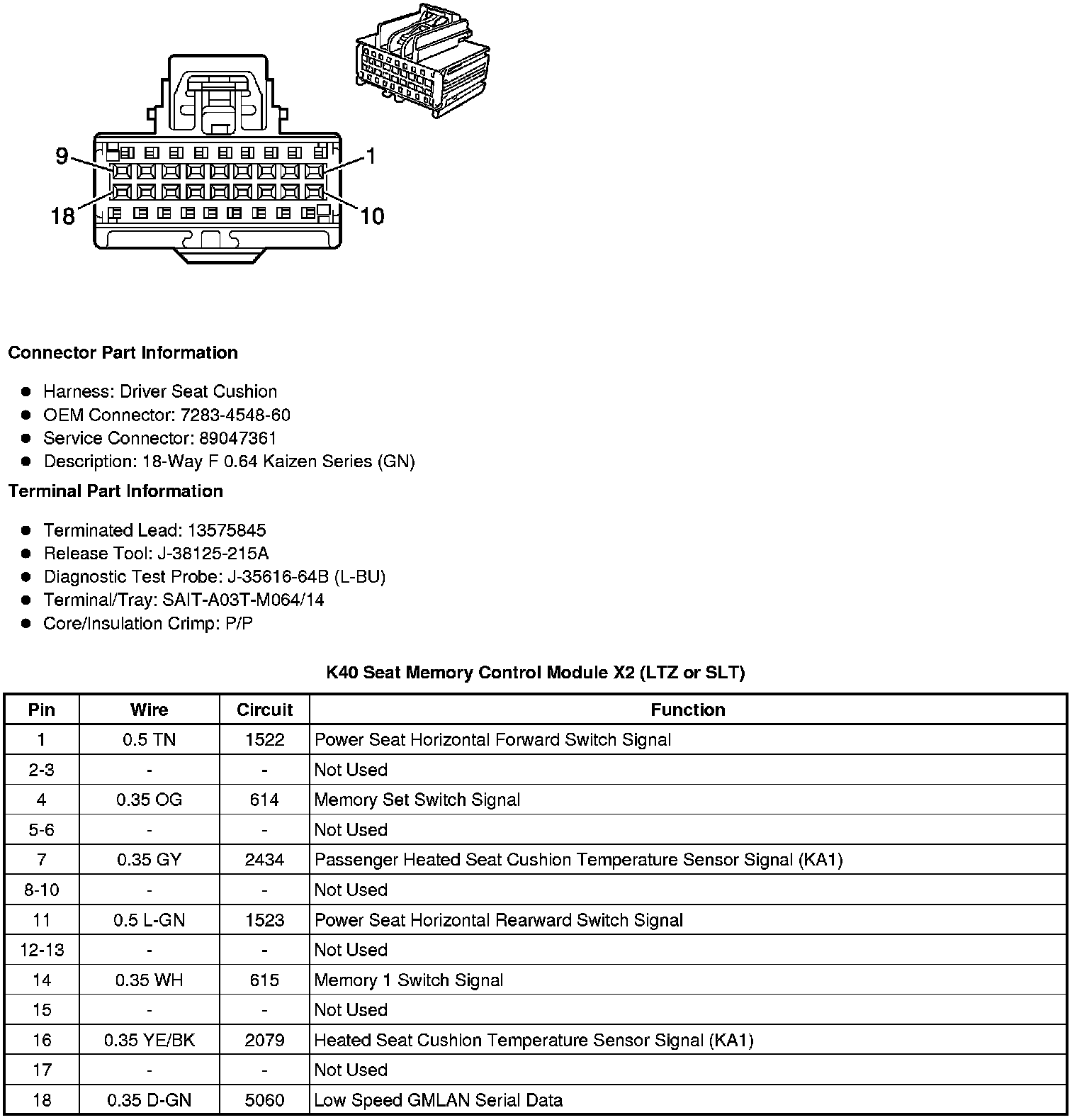

K40 Seat Memory Control Module X2 (LTZ or SLT)

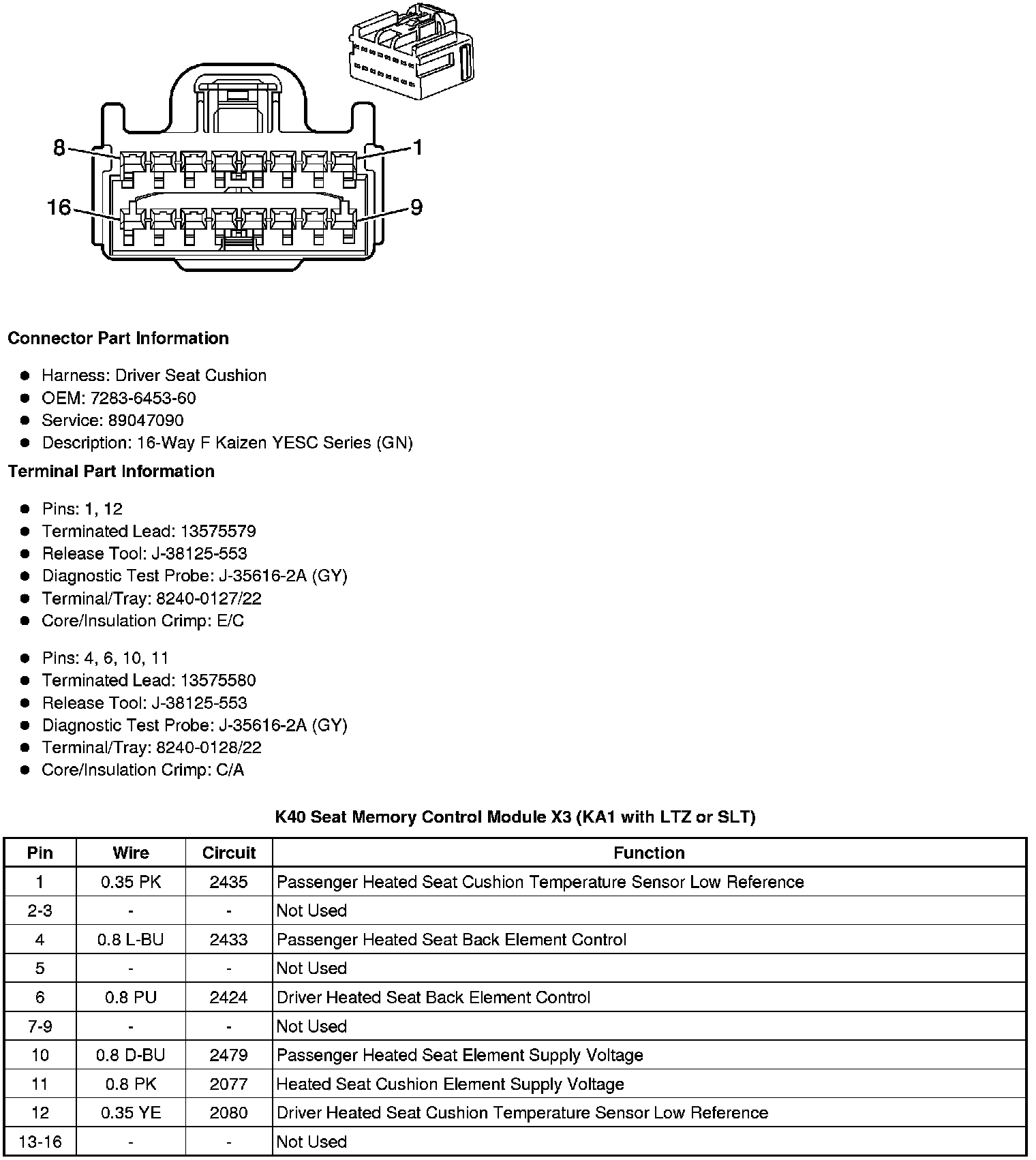

K40 Seat Memory Control Module X3 (KA1 with LTZ or SLT)

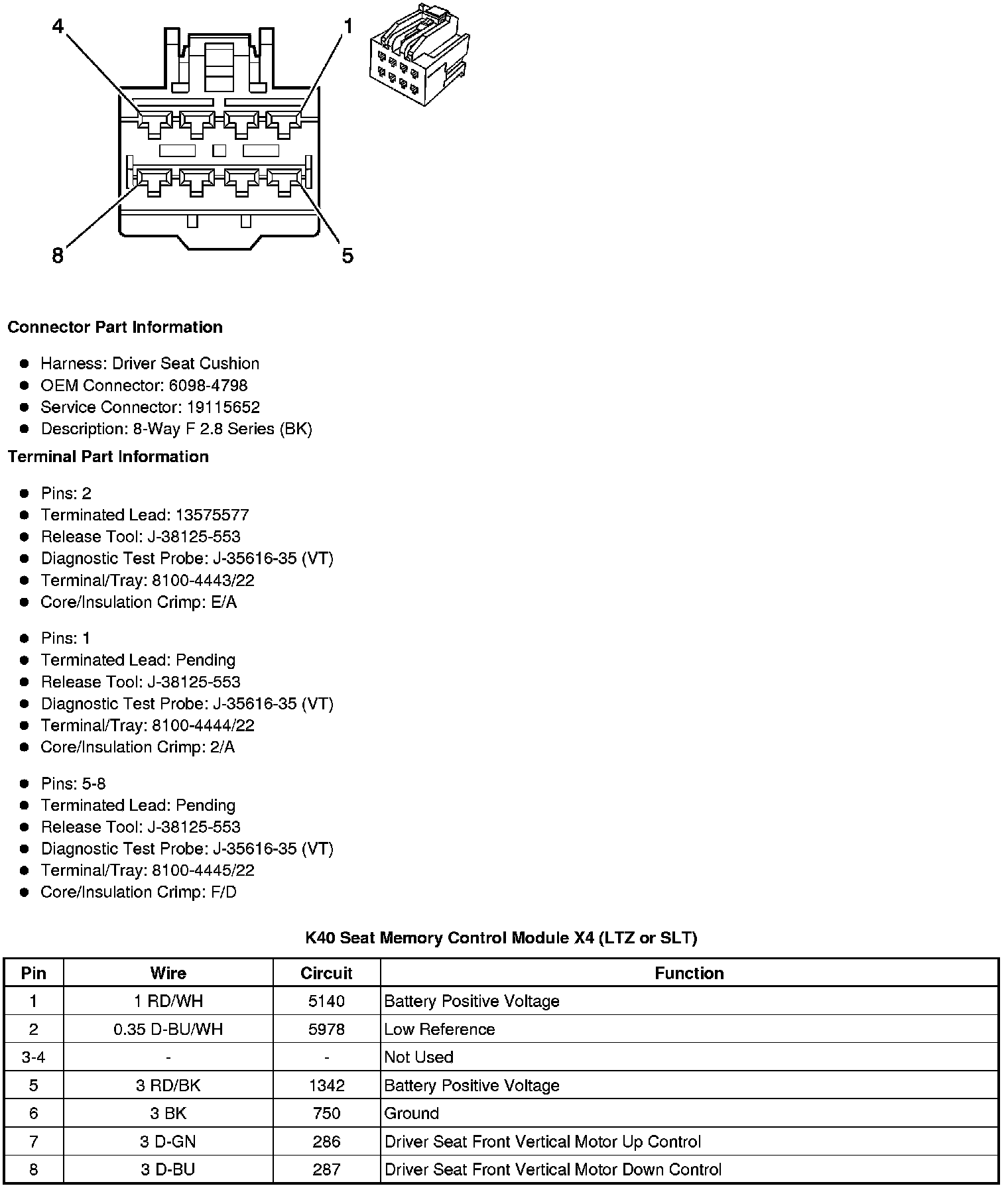

K40 Seat Memory Control Module X4 (LTZ or SLT)

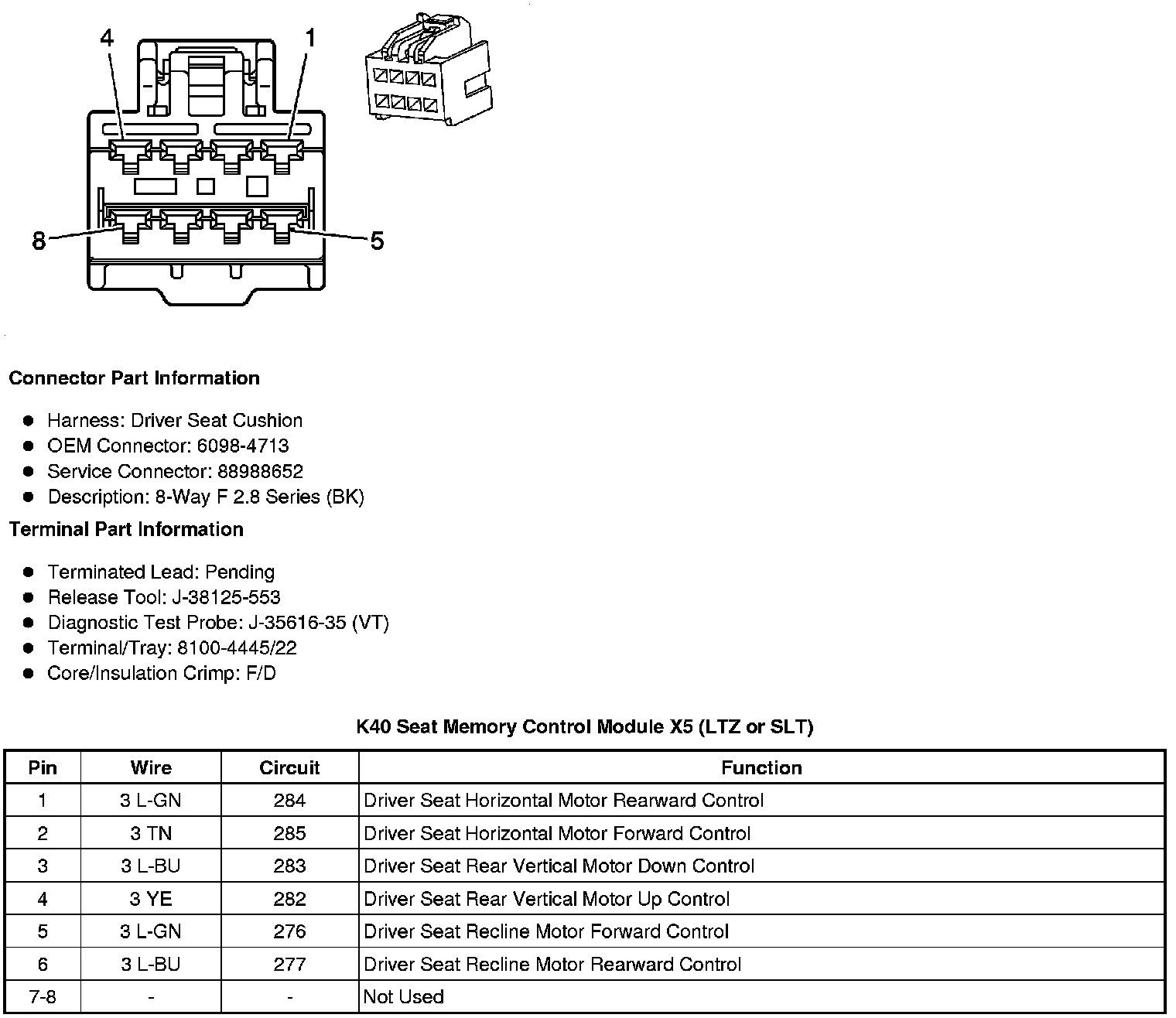

K40 Seat Memory Control Module X5 (LTZ or SLT)
