Ambient Light Sensor




Component Connector End Views

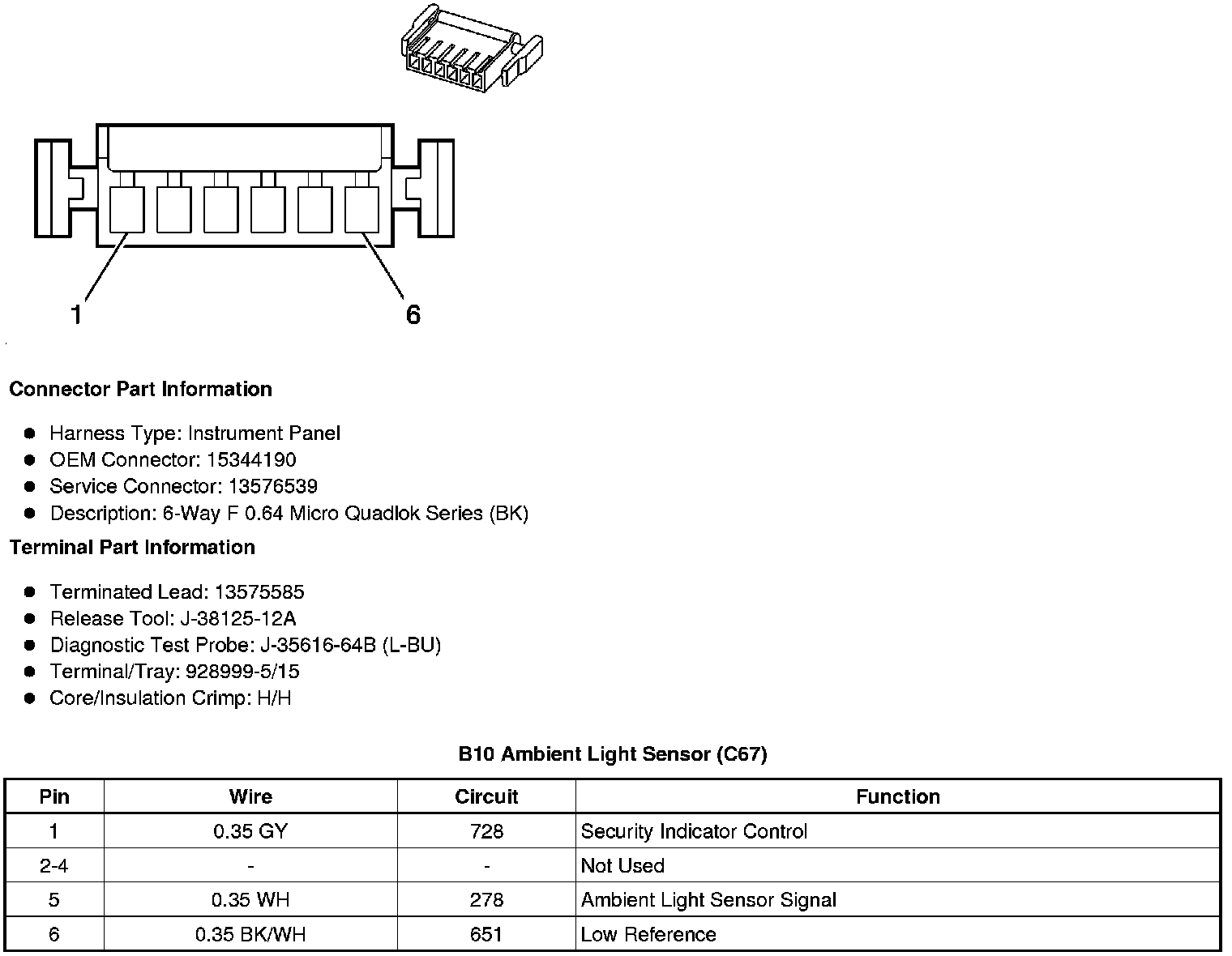

B10 Ambient Light Sensor (C67)

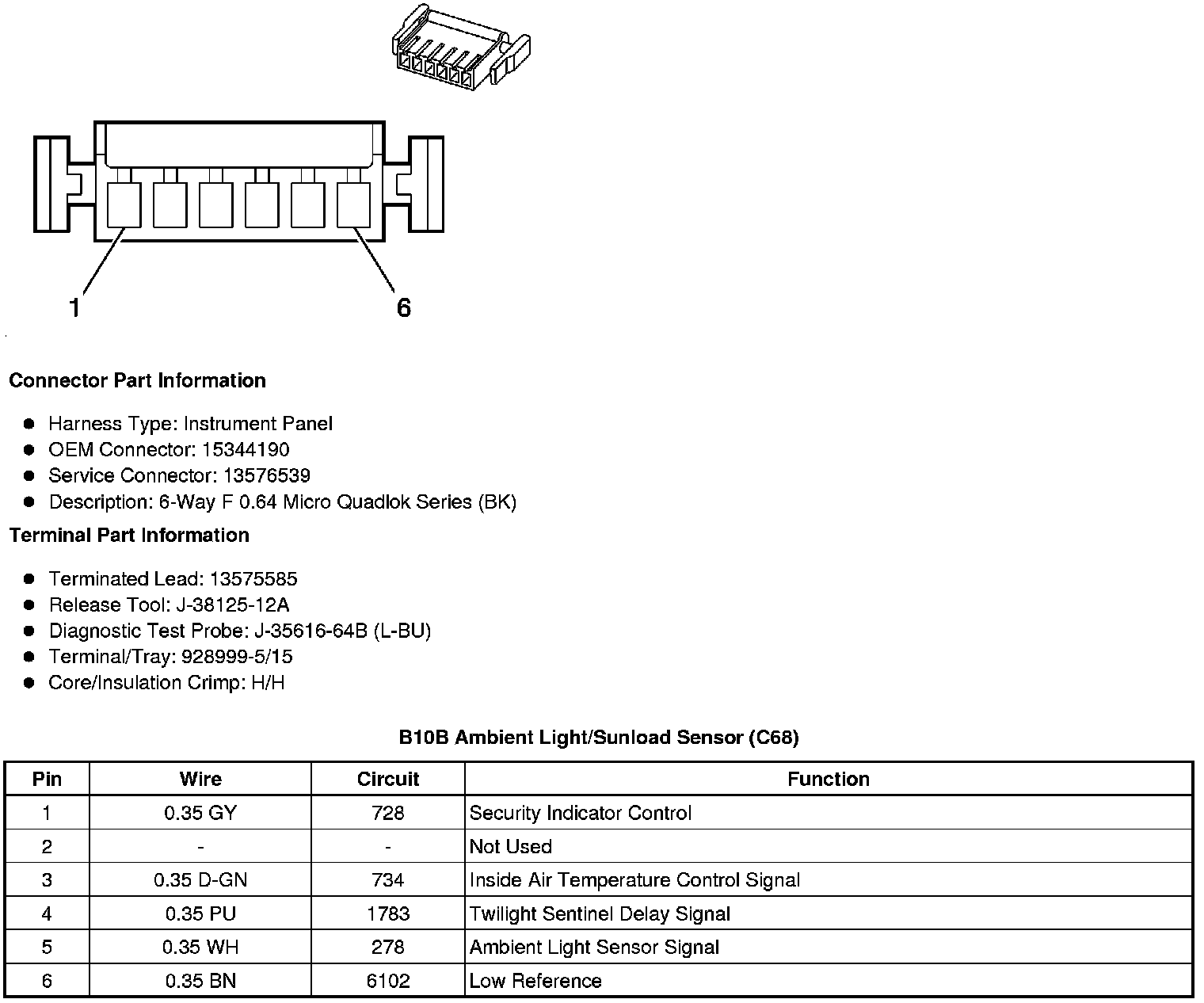

B10B Ambient Light/Sunload Sensor (C68)
