Engine Control Module
Component Connector End Views

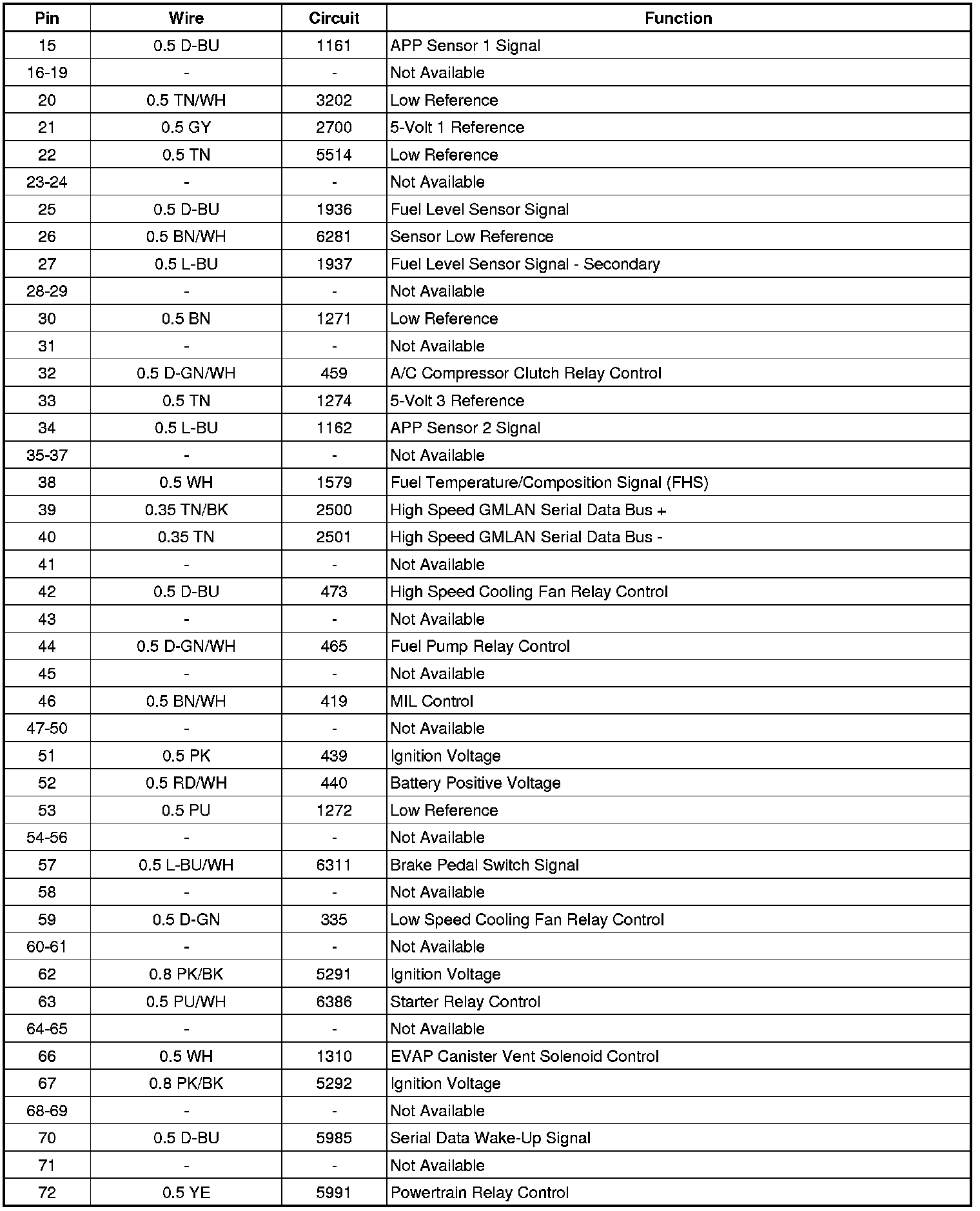

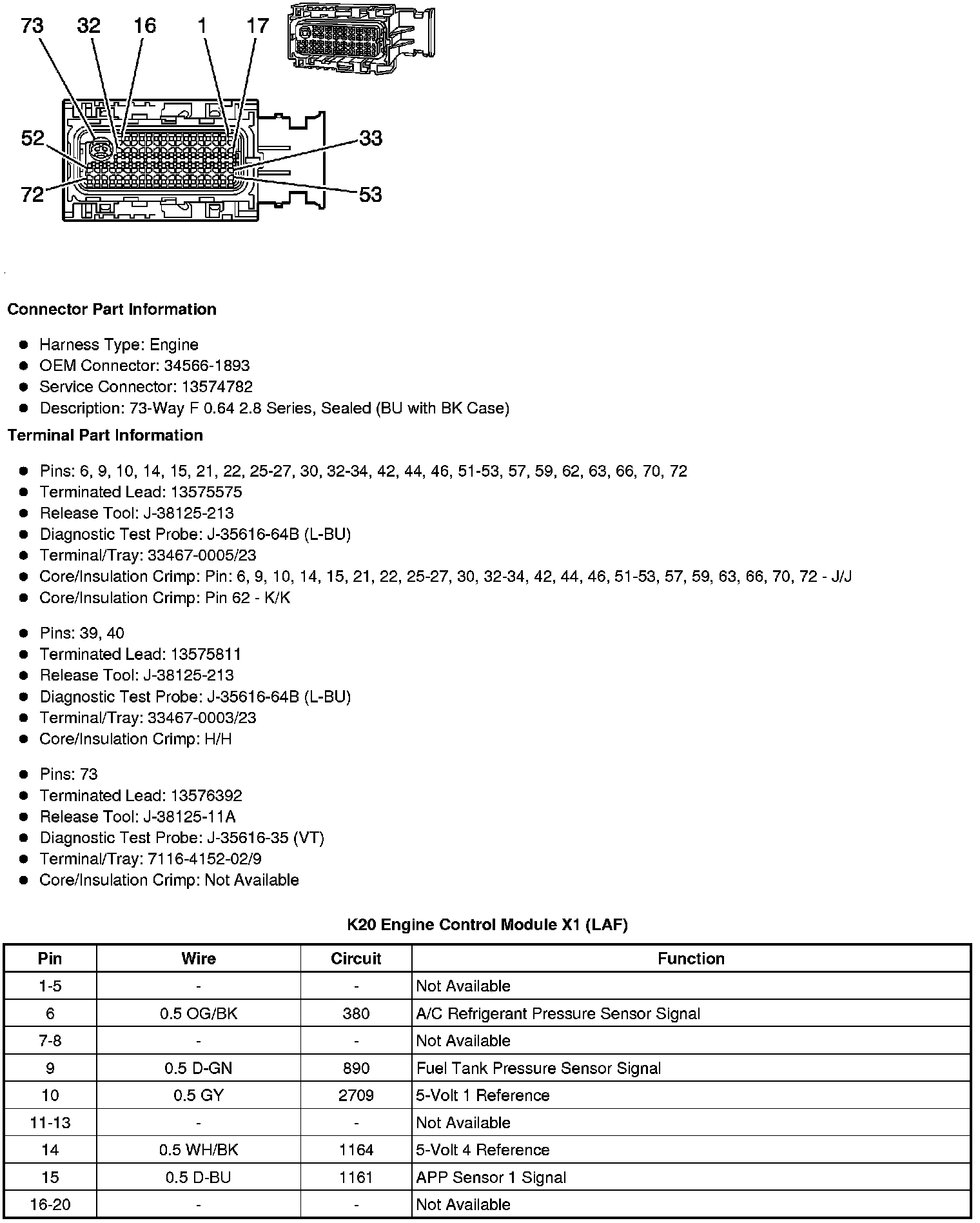

K20 Engine Control Module X1 (LAF)

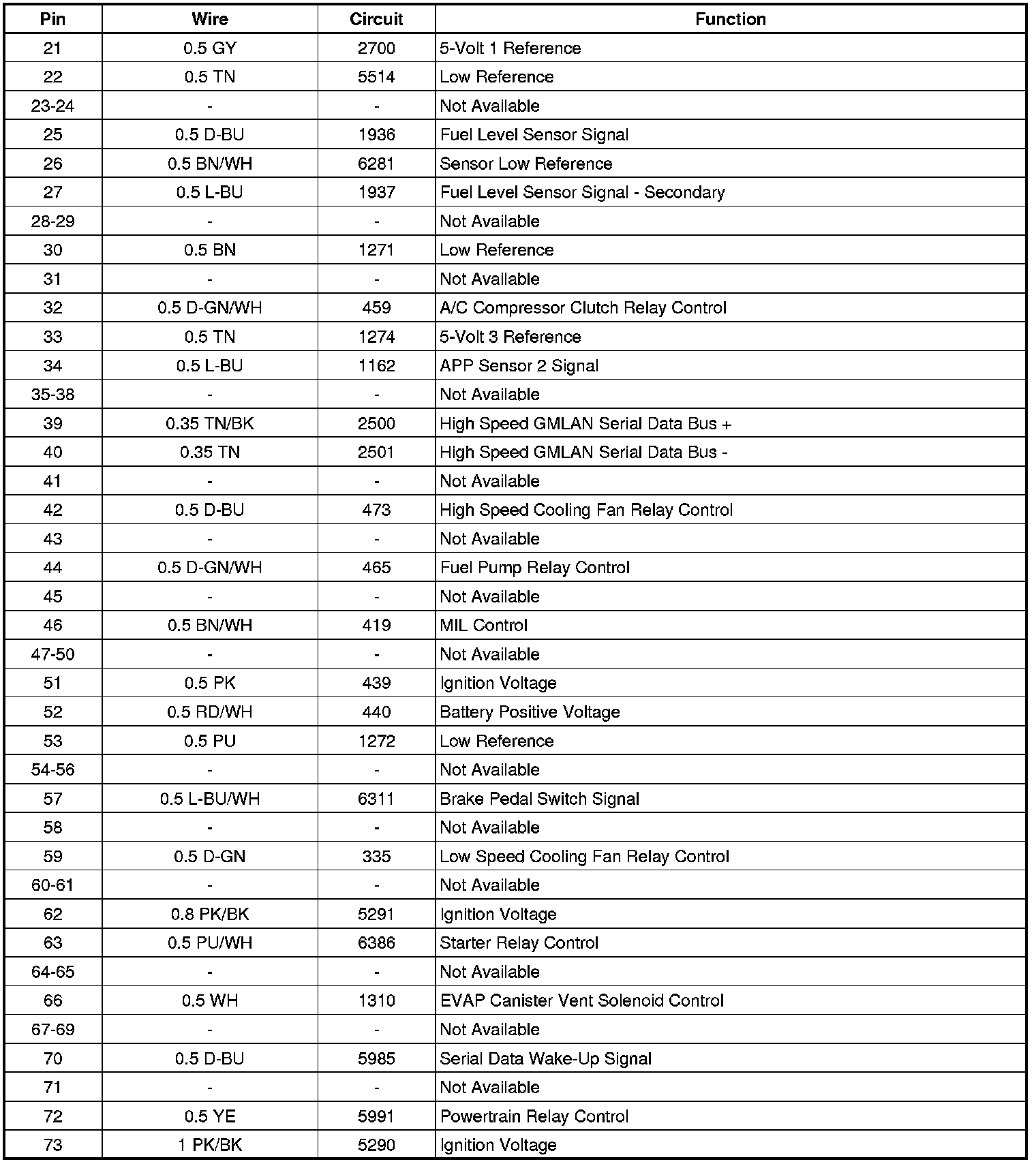

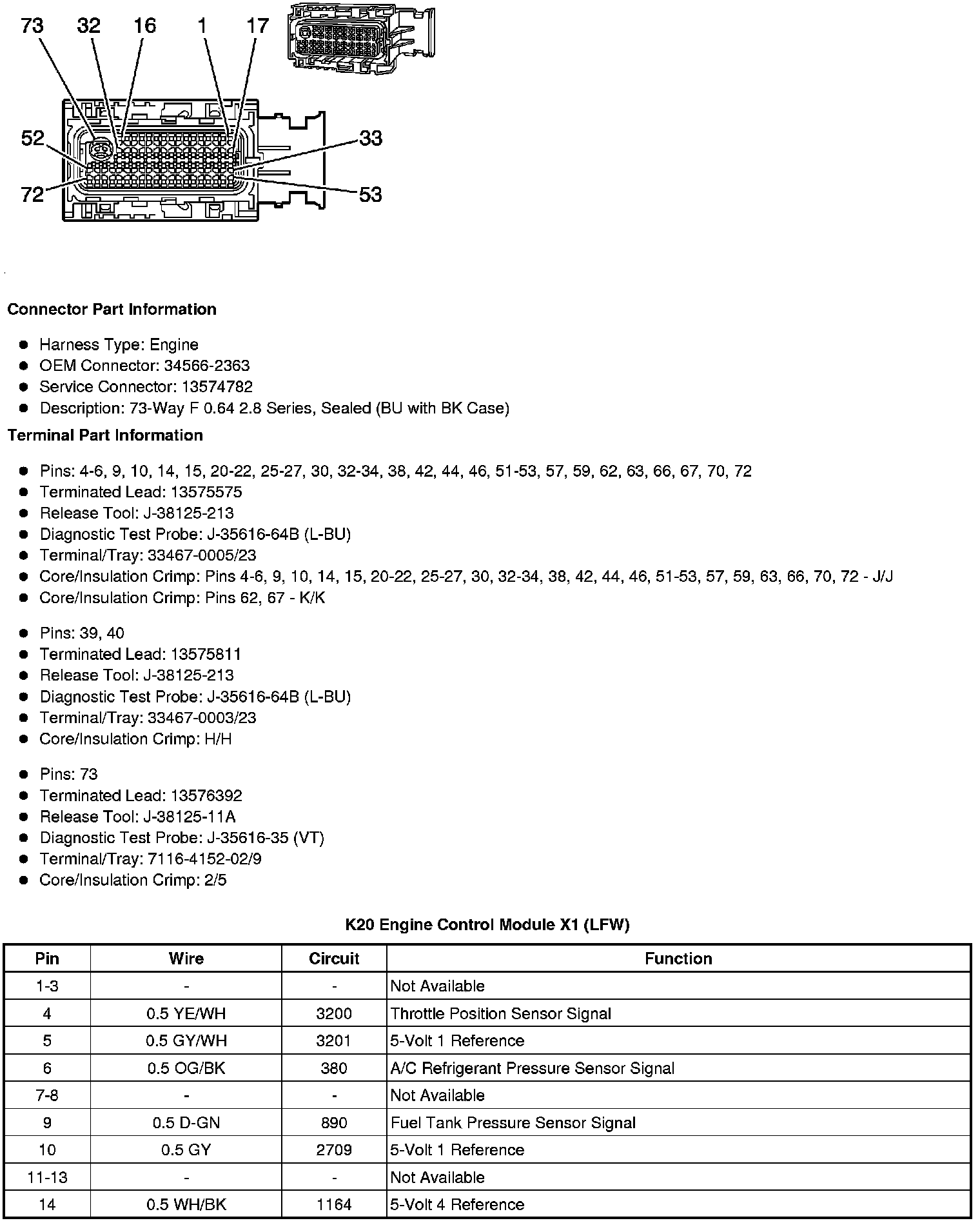

K20 Engine Control Module X1 (LFW)

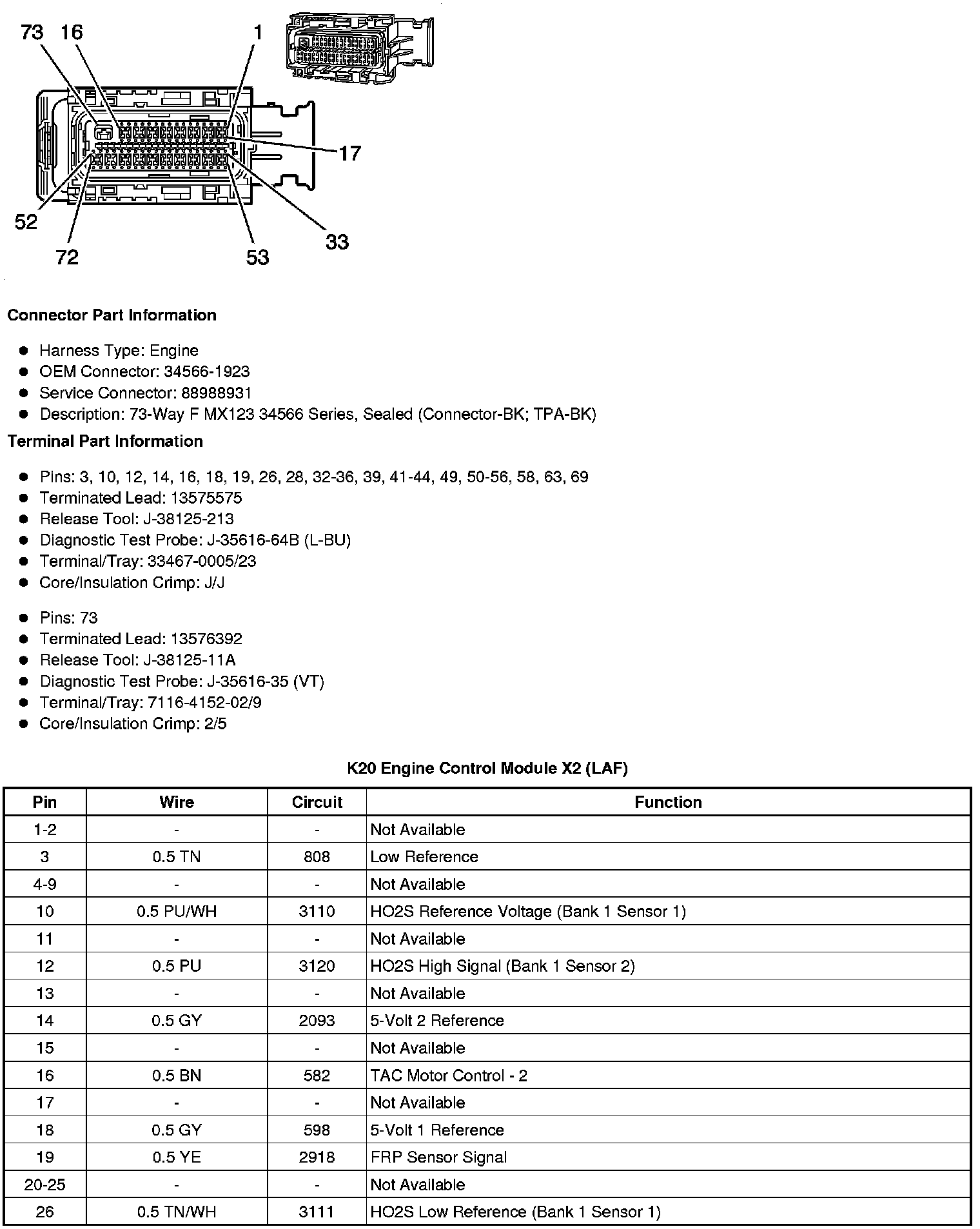

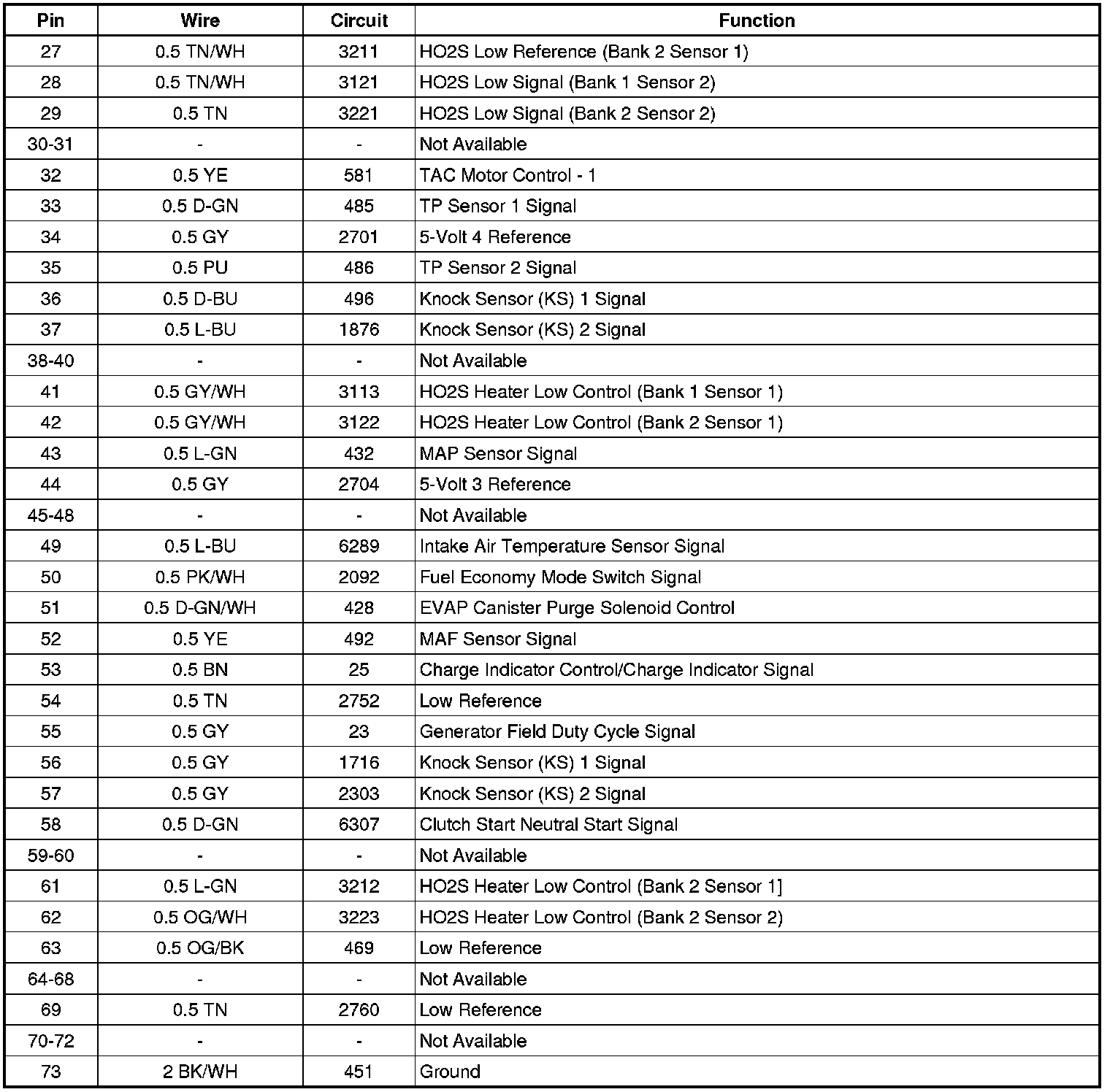

K20 Engine Control Module X2 (LAF)

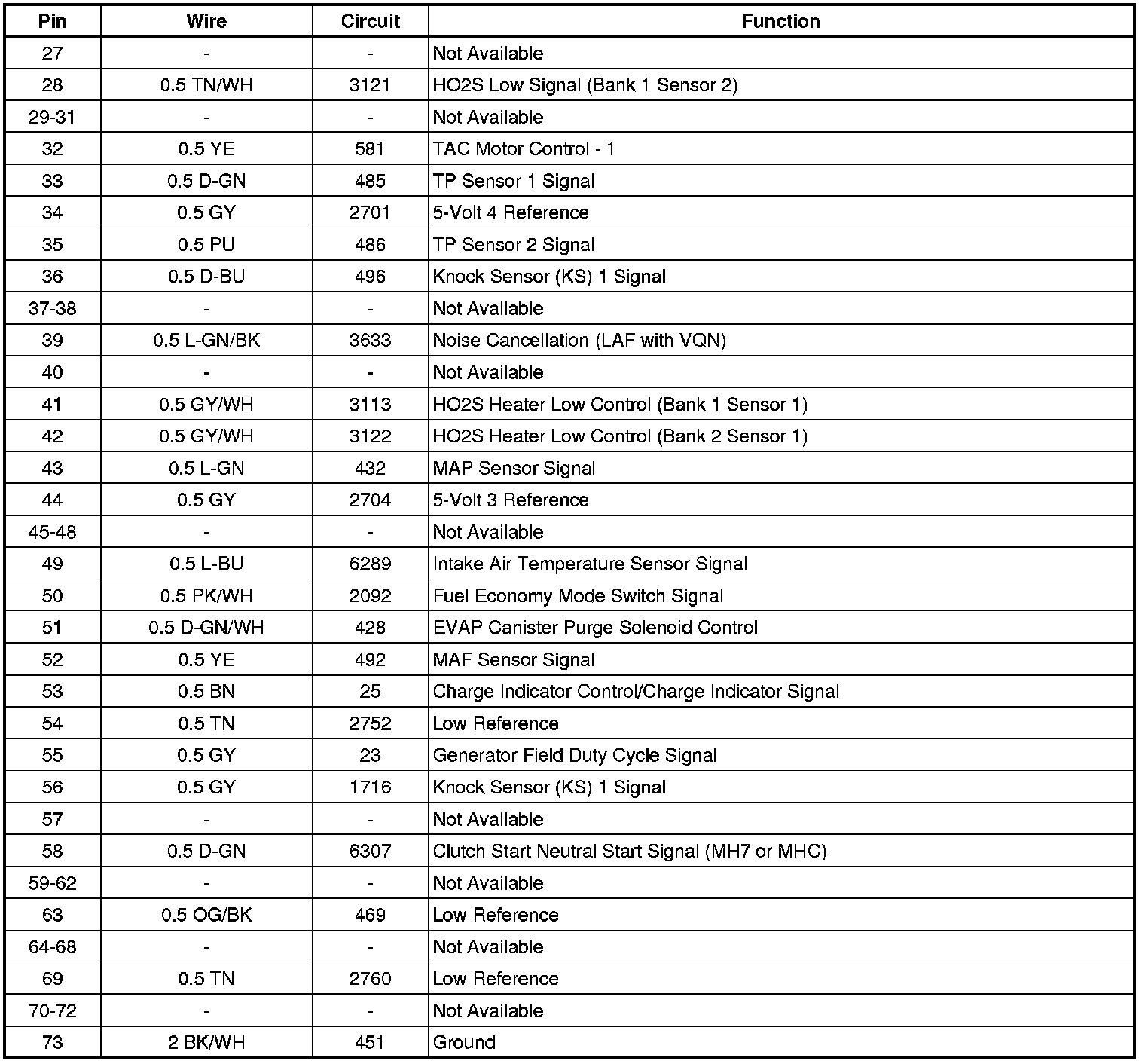

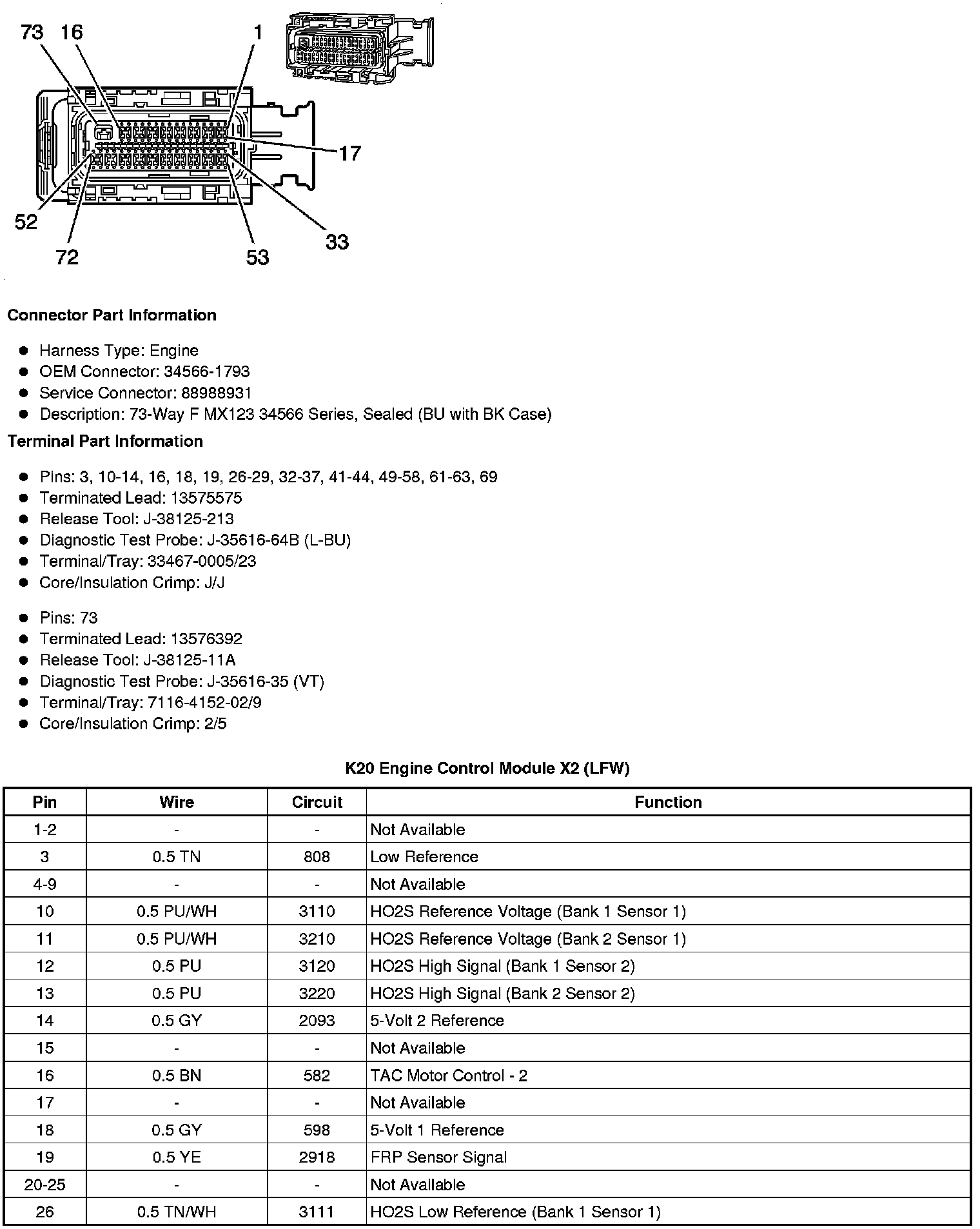

K20 Engine Control Module X2 (LFW)

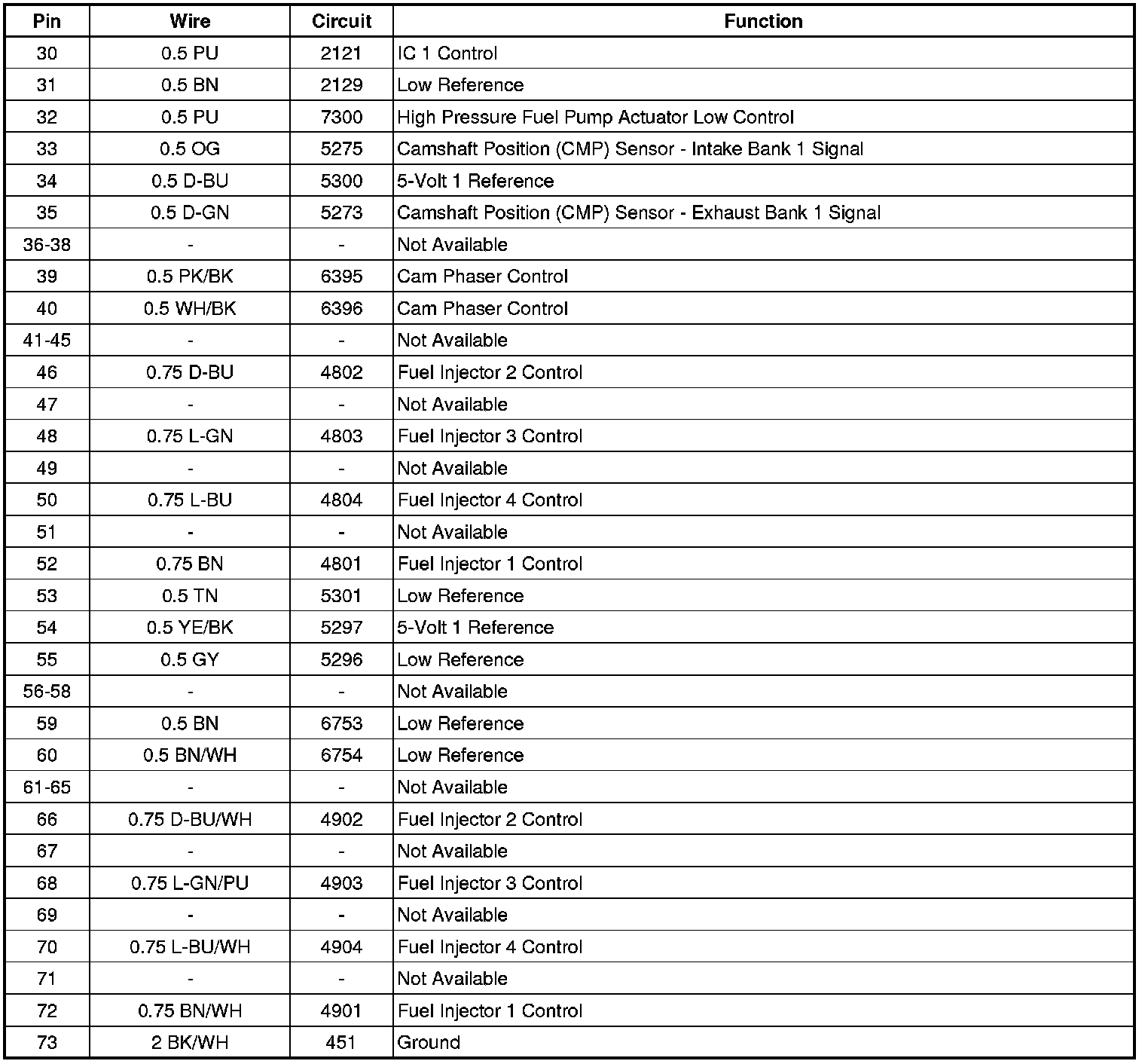

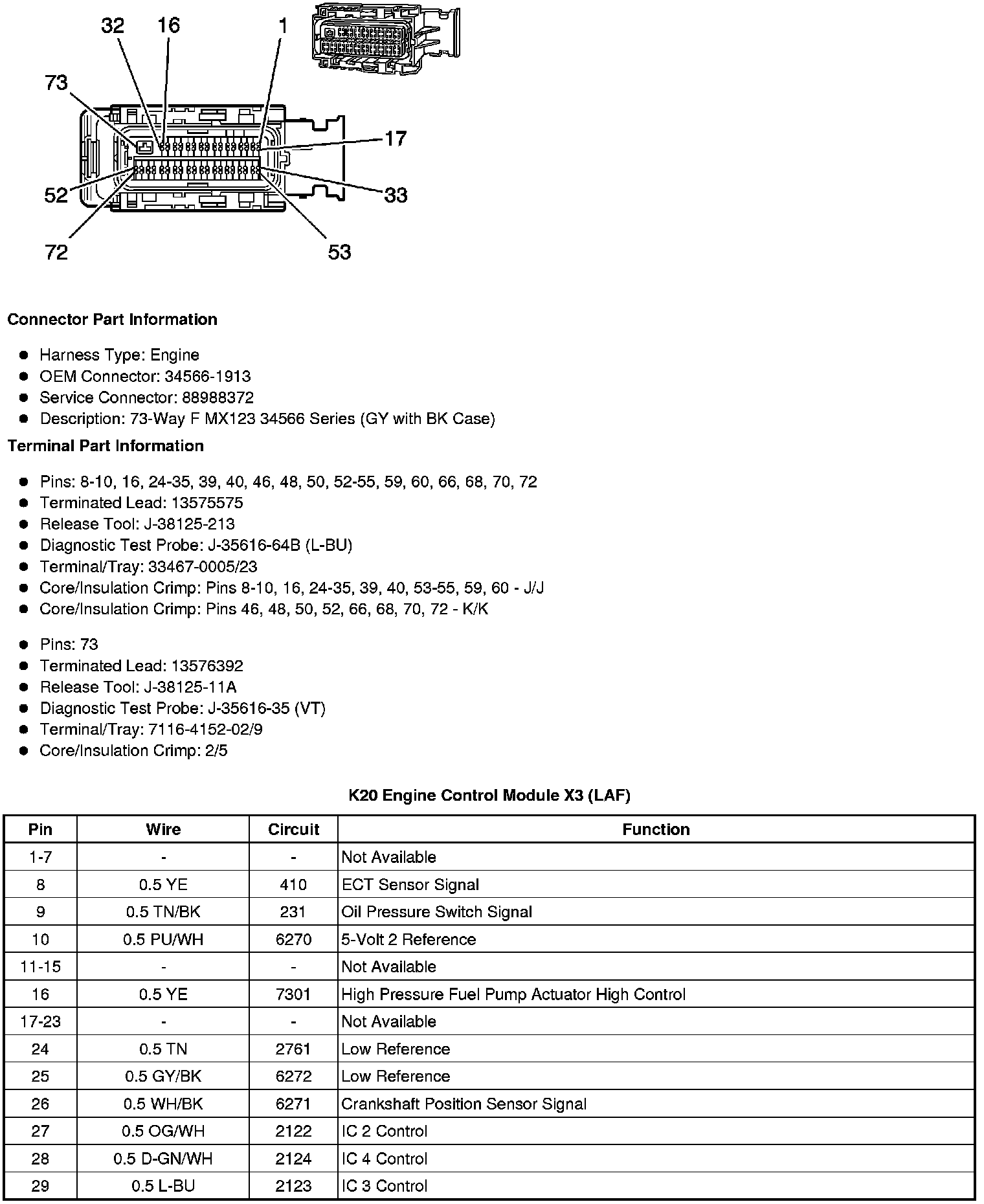

K20 Engine Control Module X3 (LAF)

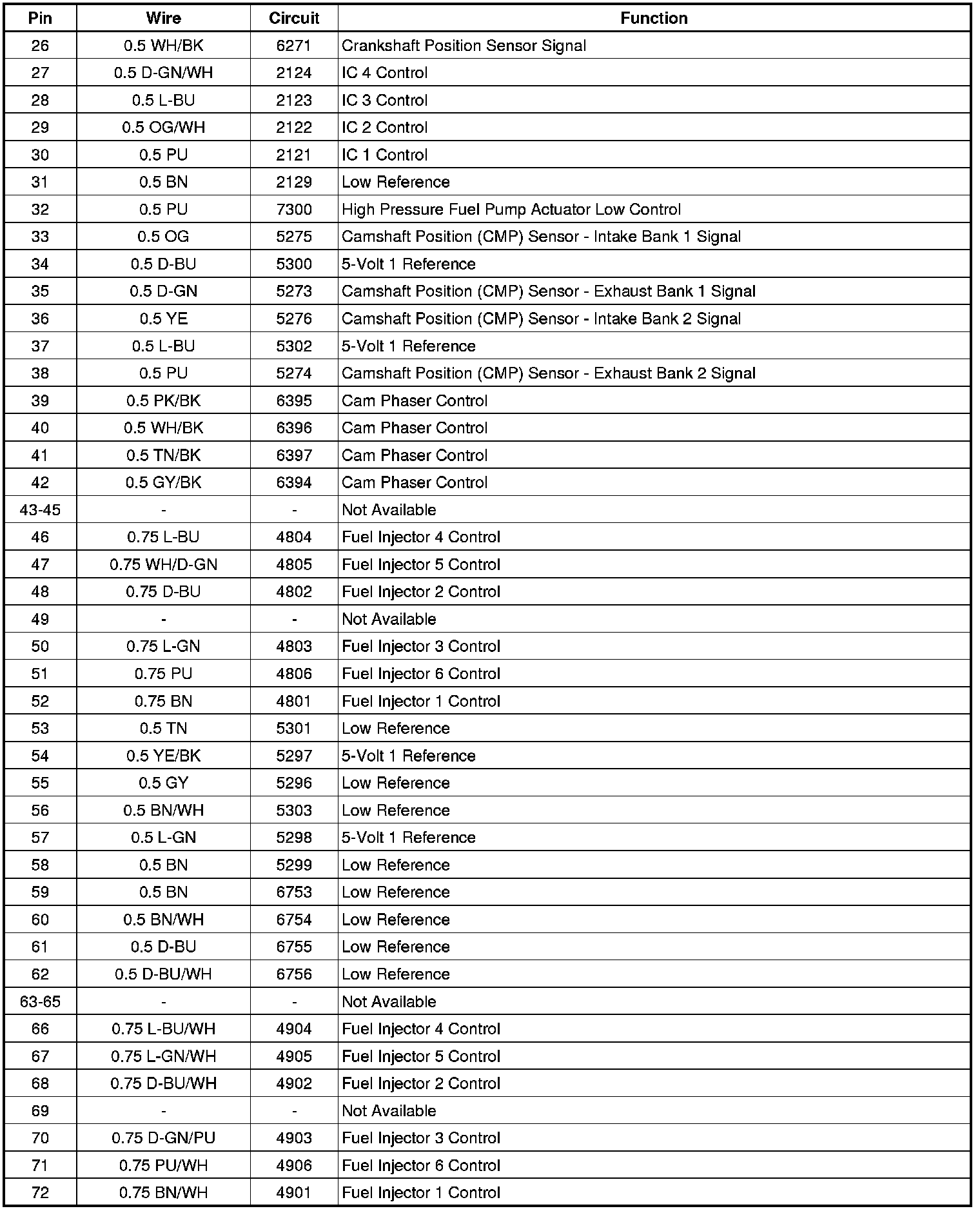

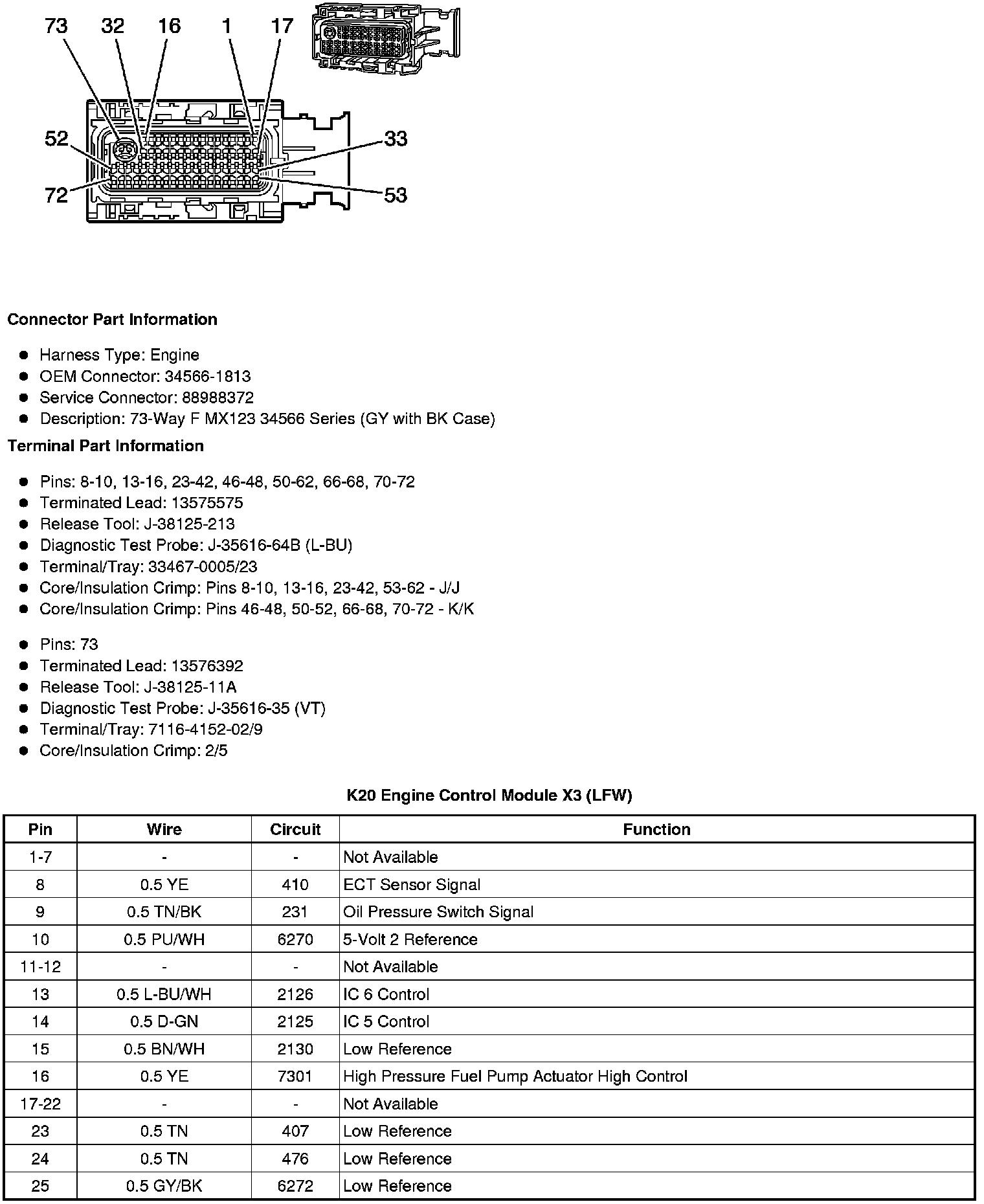

K20 Engine Control Module X3 (LFW)
