Entertainment System Control Module
Component Connector End Views

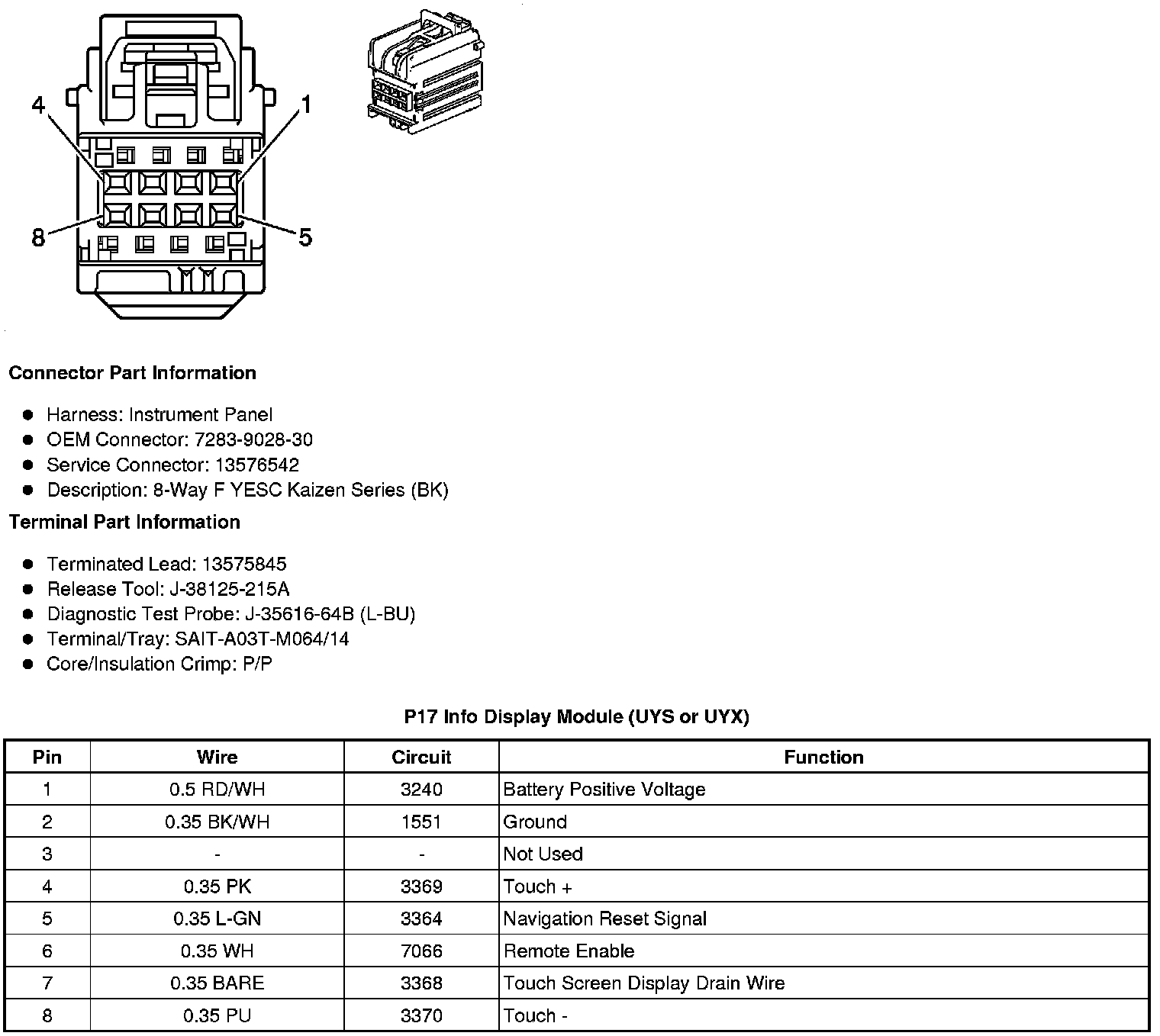

P17 Info Display Module (UYS or UYX)

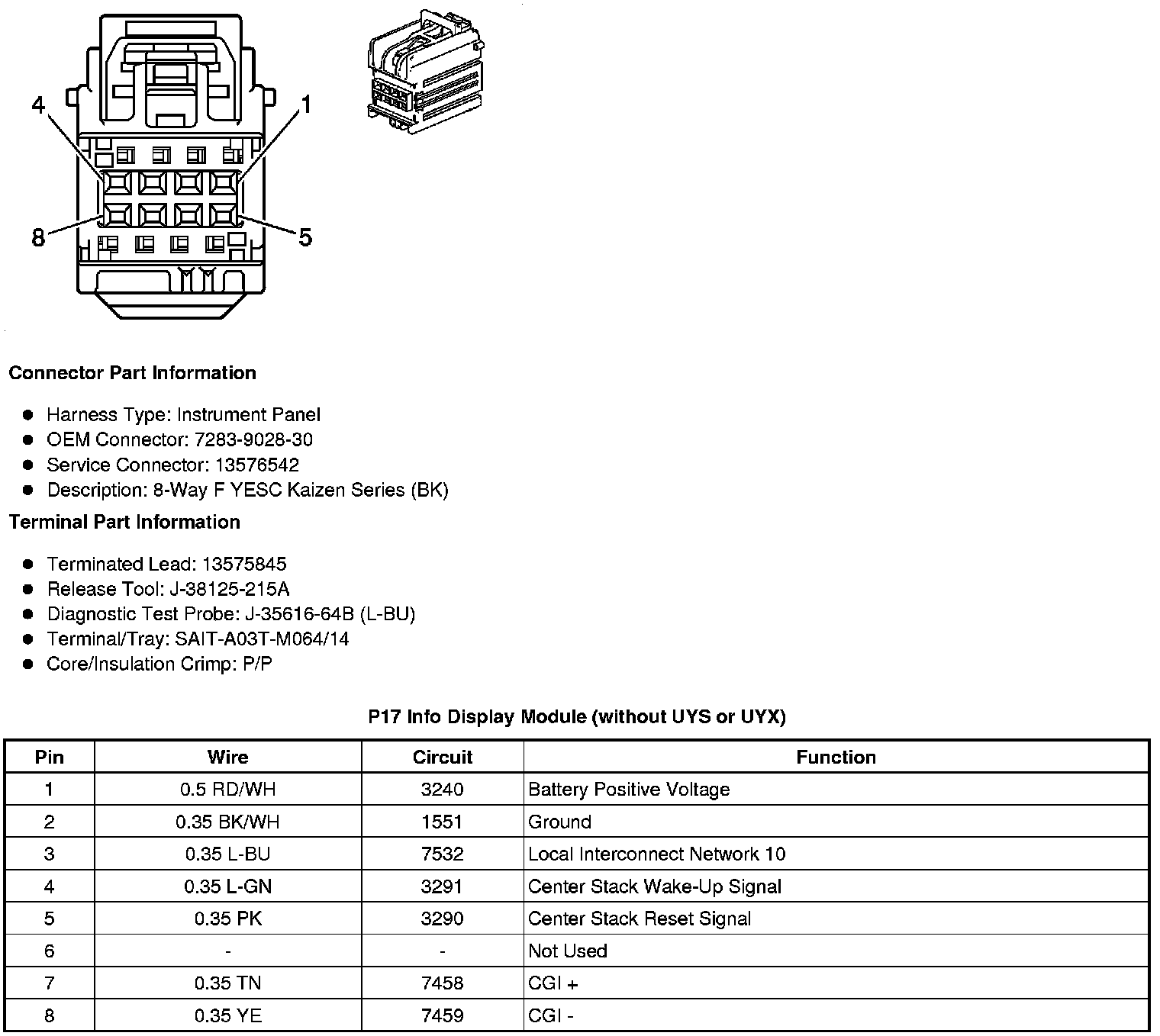

P17 Info Display Module (without UYS or UYX)

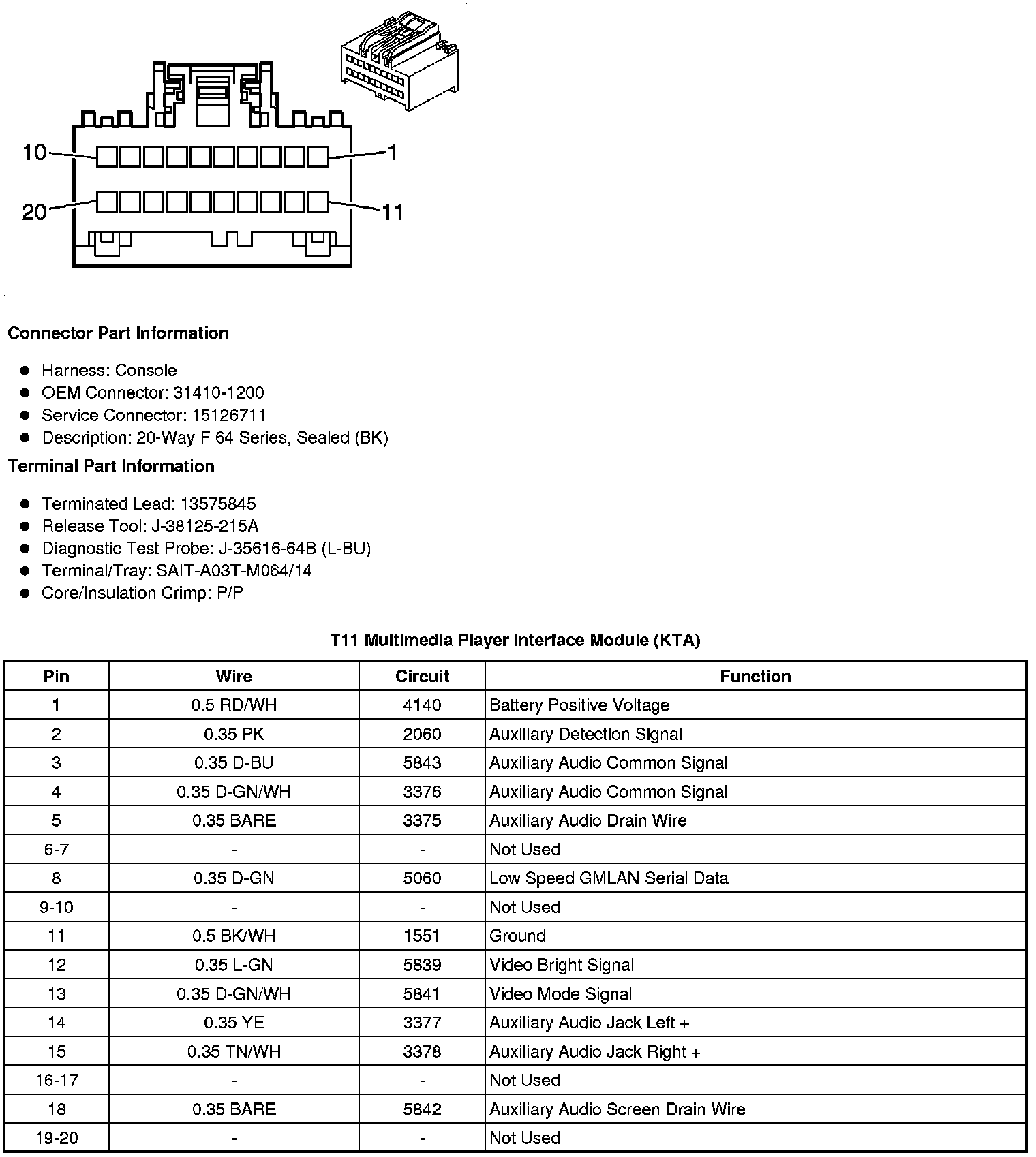

T11 Multimedia Player Interface Module (KTA)
Component Connector End Views
P17 Info Display Module (UYS or UYX)
P17 Info Display Module (without UYS or UYX)
T11 Multimedia Player Interface Module (KTA)
