Marker Lamp




Component Connector End Views

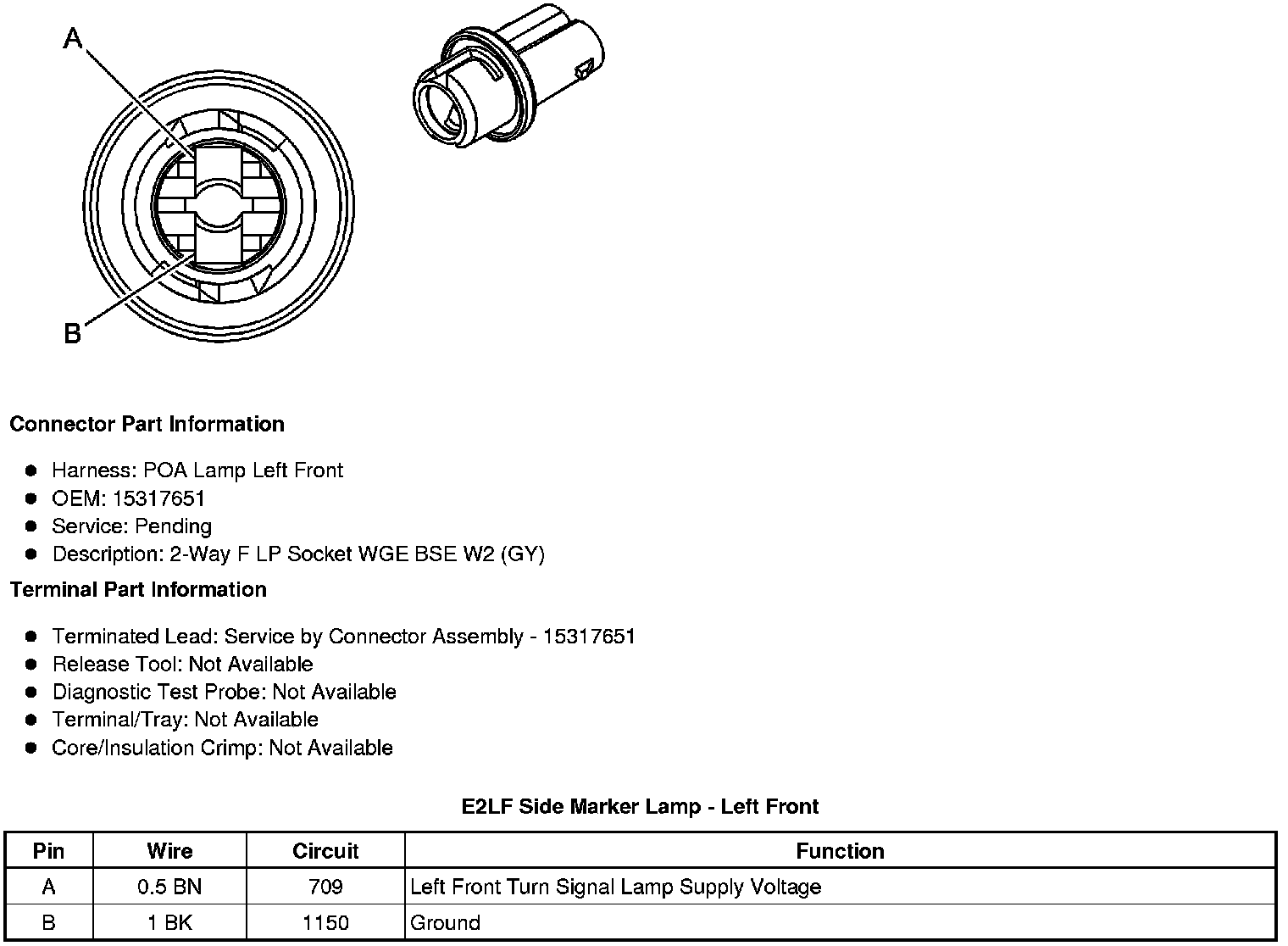

E2LF Side Marker Lamp - Left Front

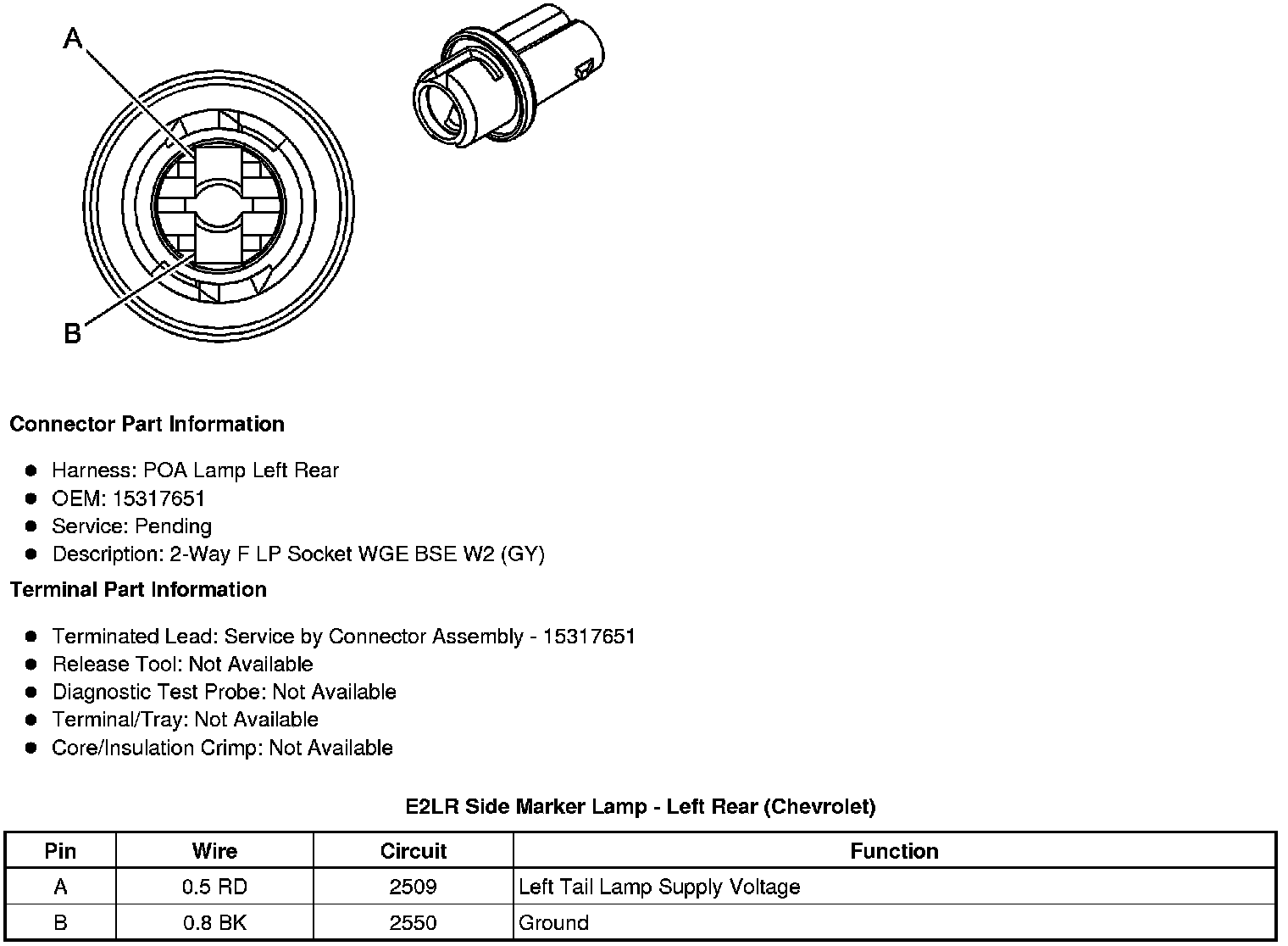

E2LR Side Marker Lamp - Left Rear (Chevrolet)





E2RF Side Marker Lamp - Right Front

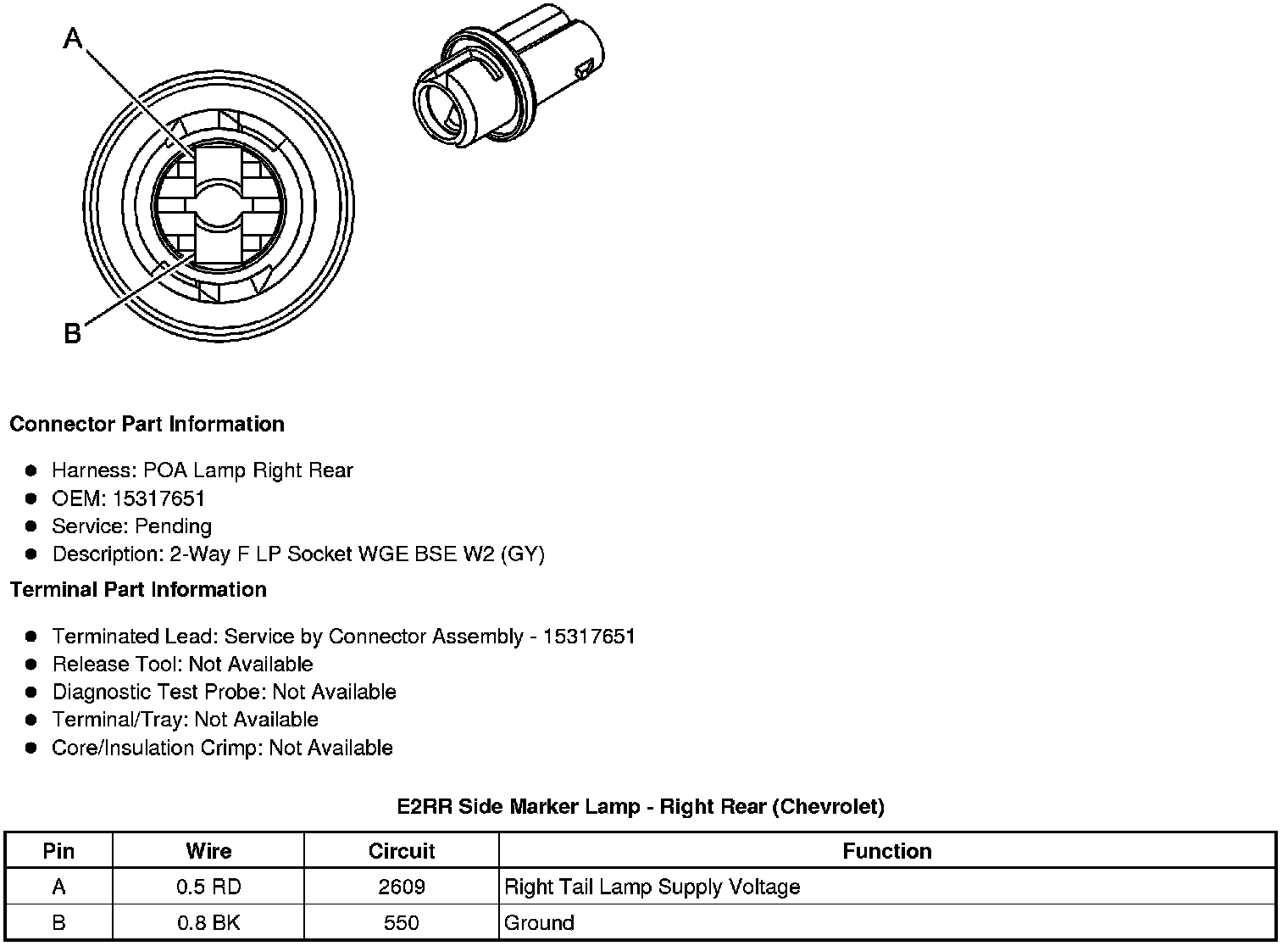

E2RR Side Marker Lamp - Right Rear (Chevrolet)
