Speaker




Component Connector End Views

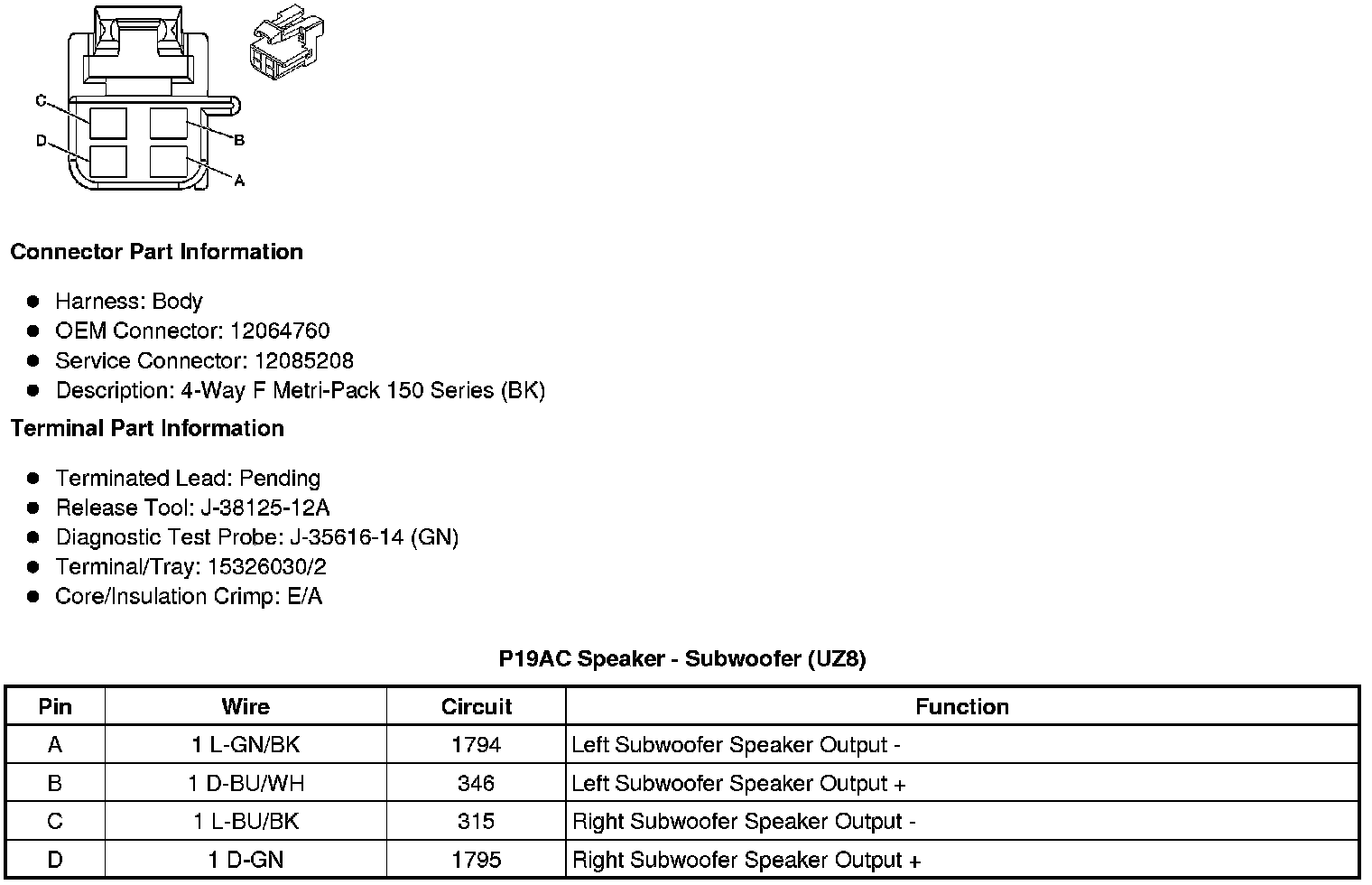

P19AC Speaker - Subwoofer (UZ8)





P19B Speaker - Center Instrument Panel (UZ8)

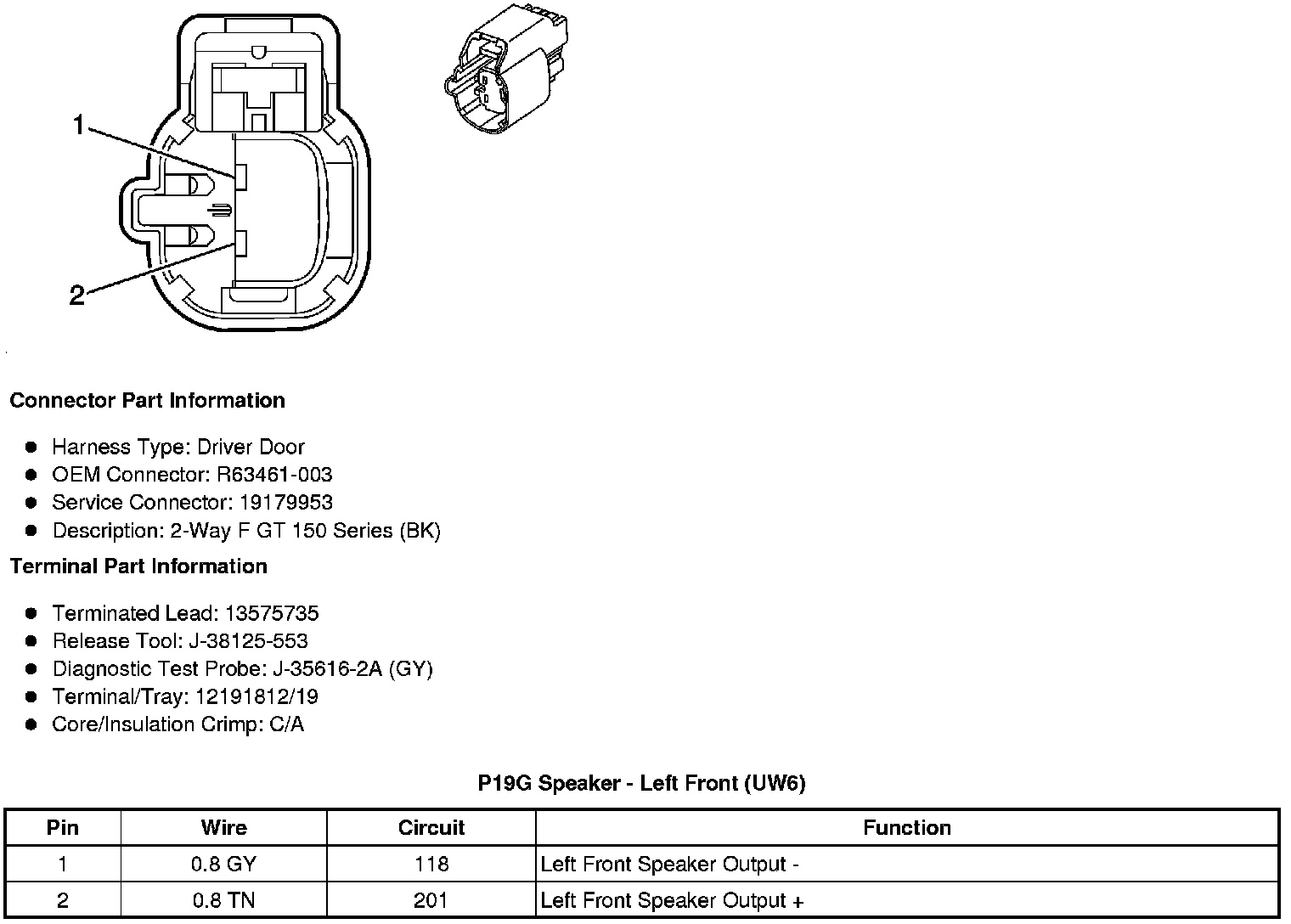

P19G Speaker - Left Front (UW6)

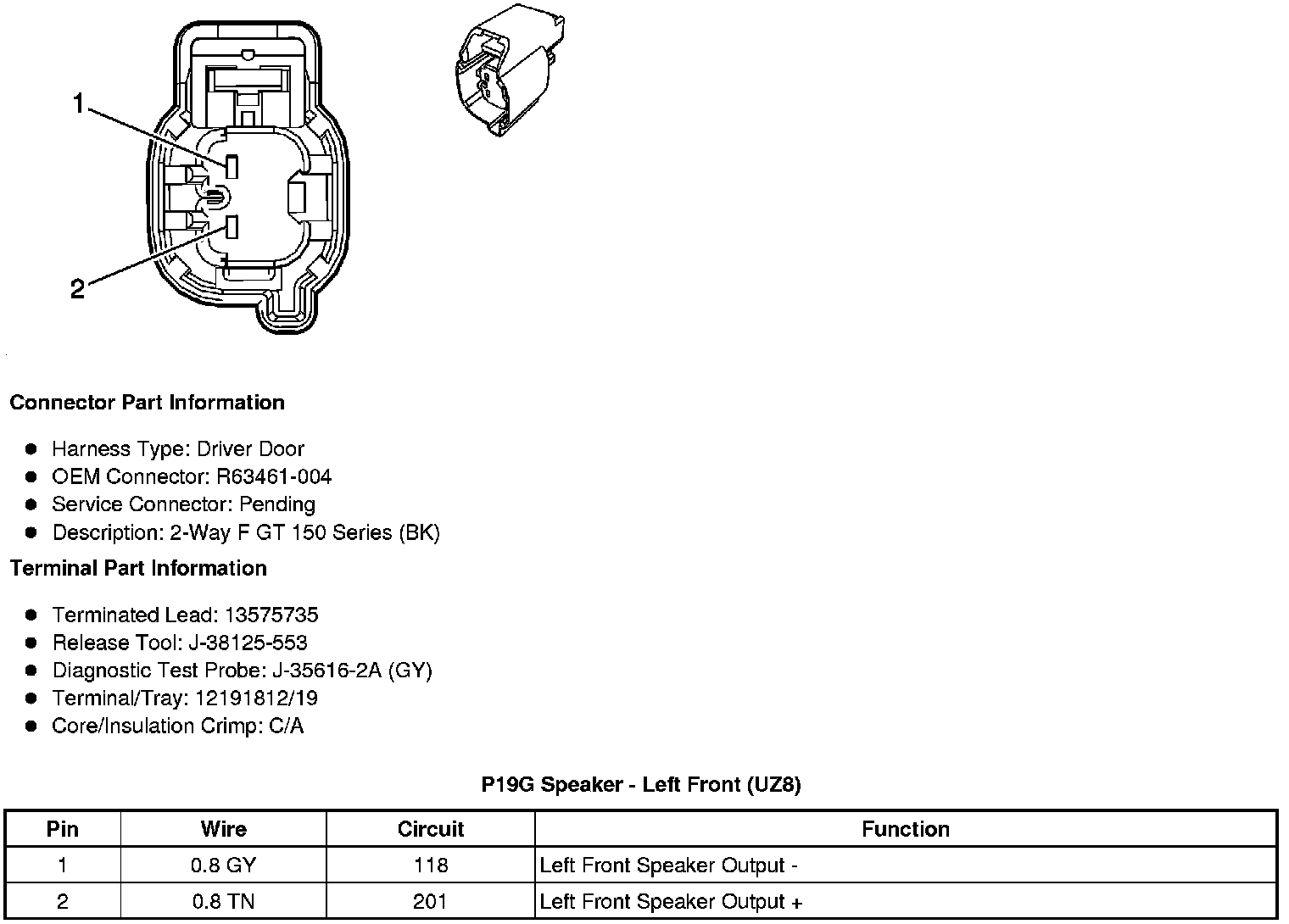

P19G Speaker - Left Front (UZ8)





P19H Speaker - Left Front Tweeter

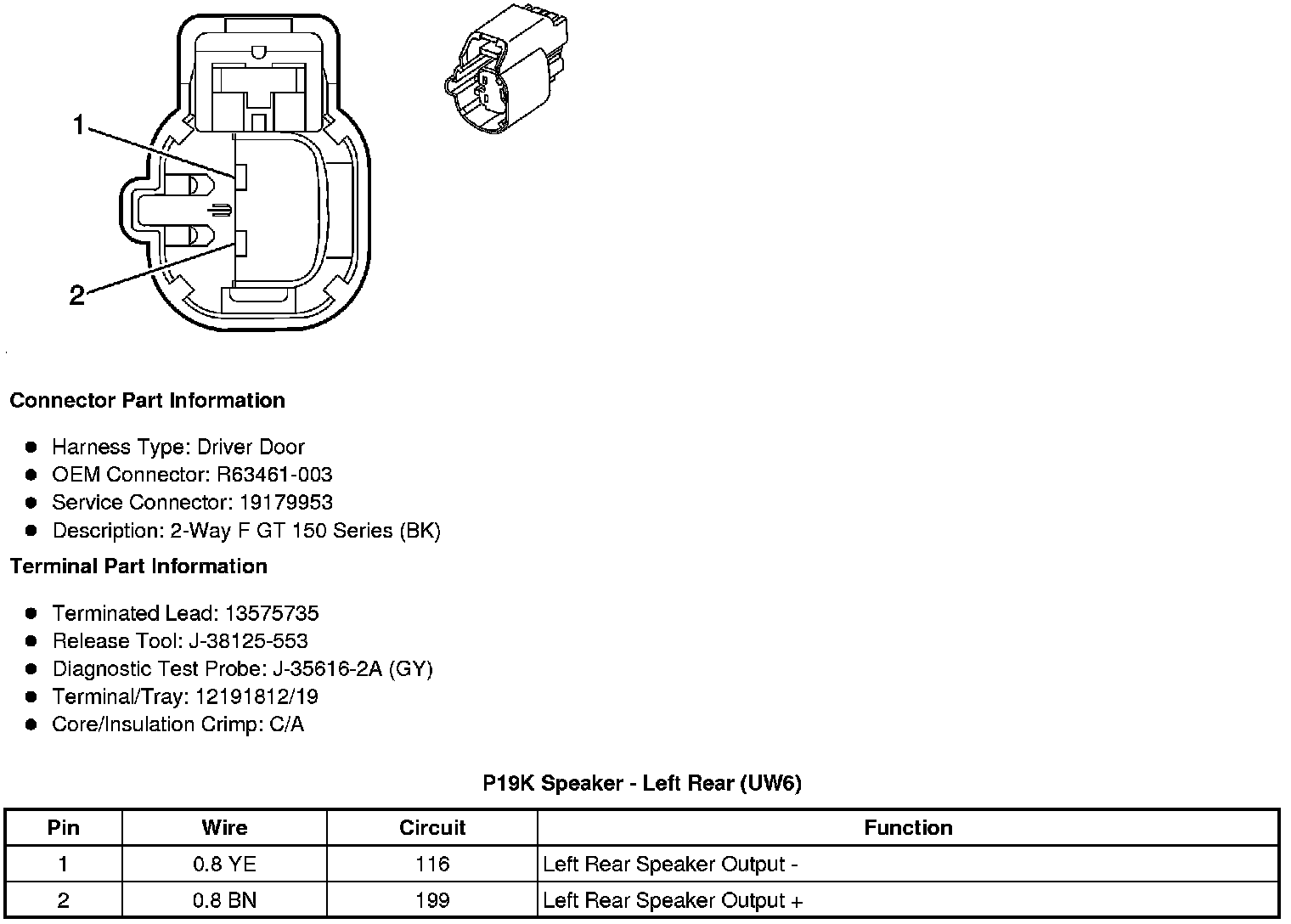

P19K Speaker - Left Rear (UW6)





P19K Speaker - Left Rear (UZ8)

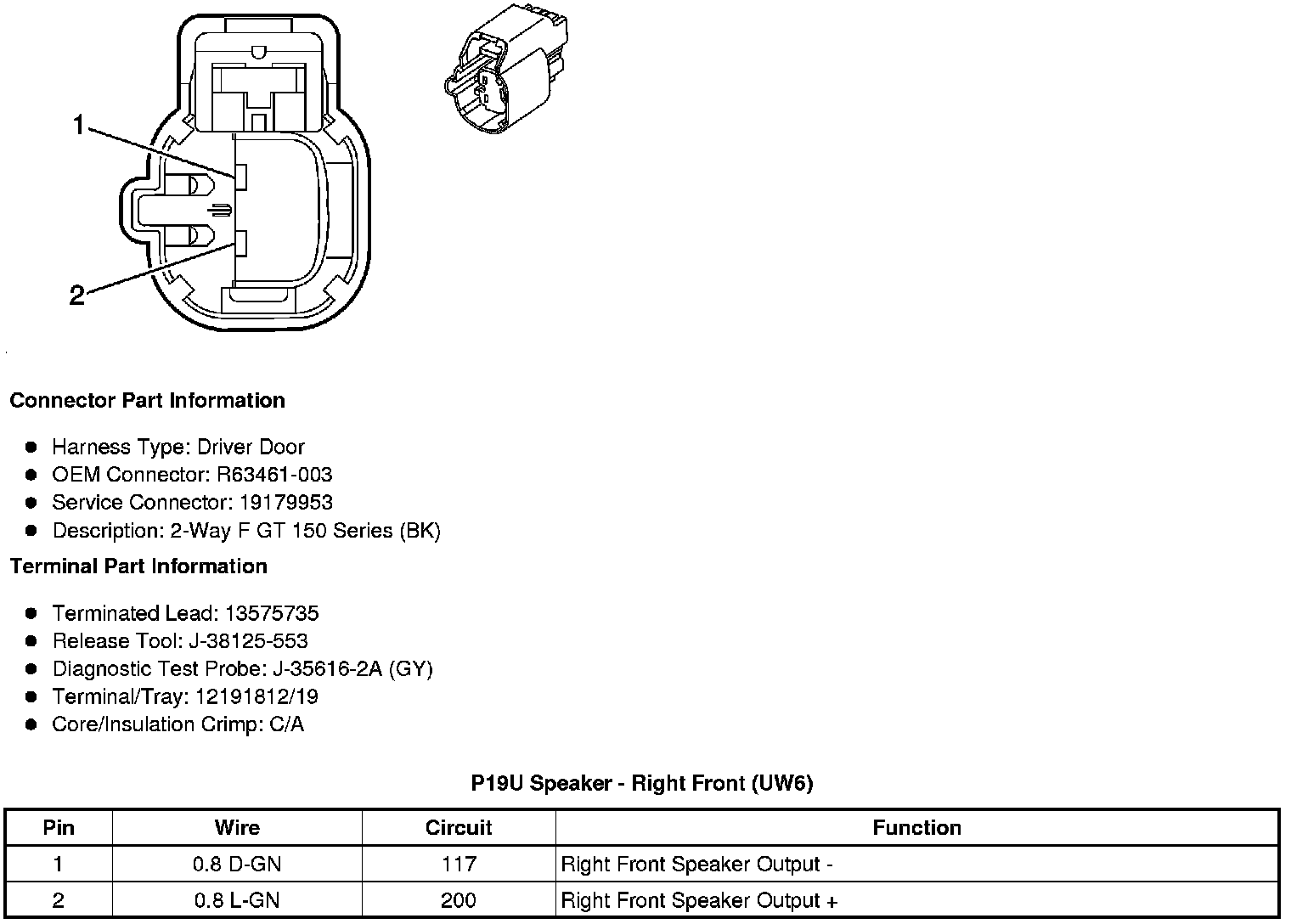

P19U Speaker - Right Front (UW6)

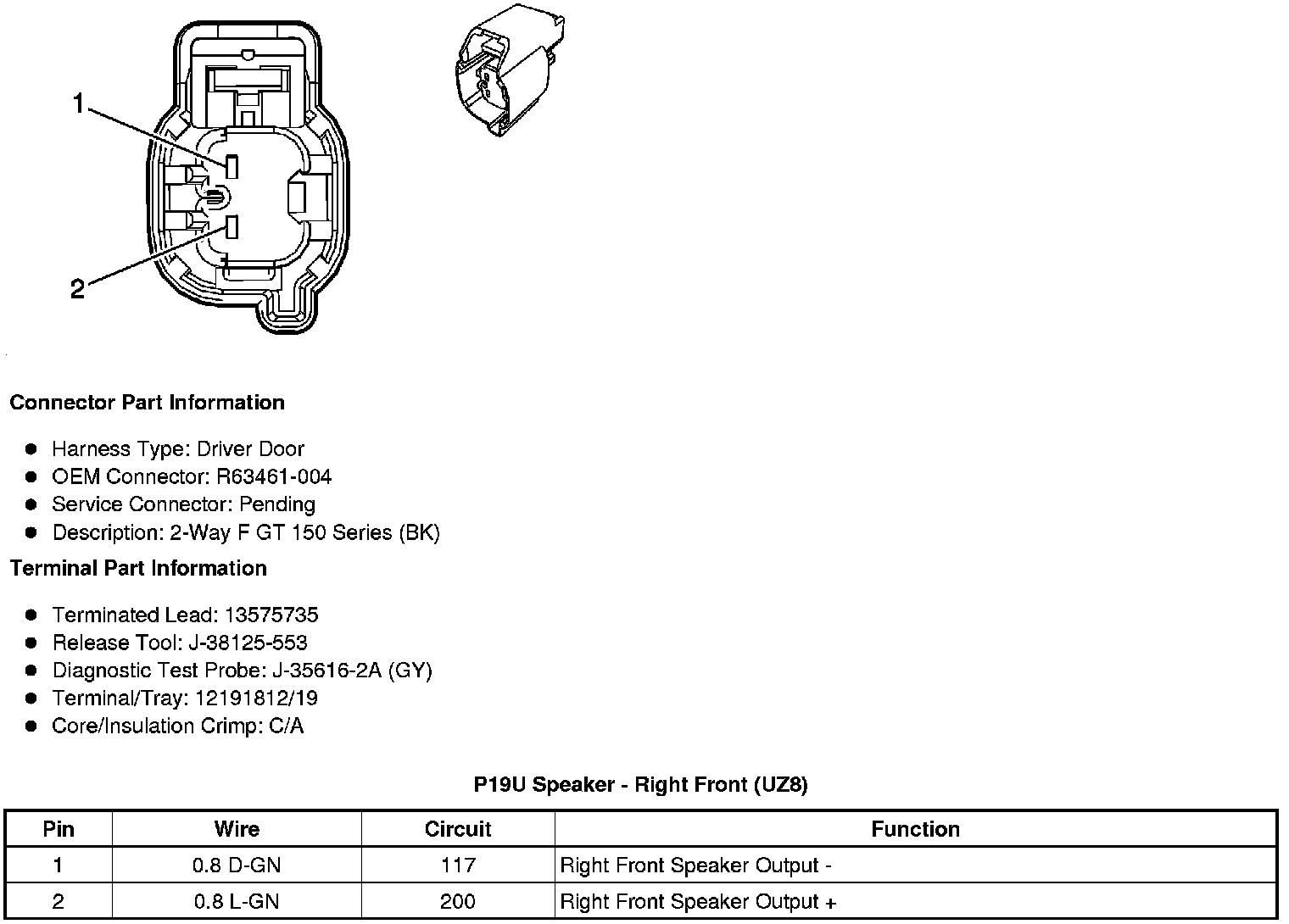

P19U Speaker - Right Front (UZ8)





P19V Speaker - Right Front Tweeter

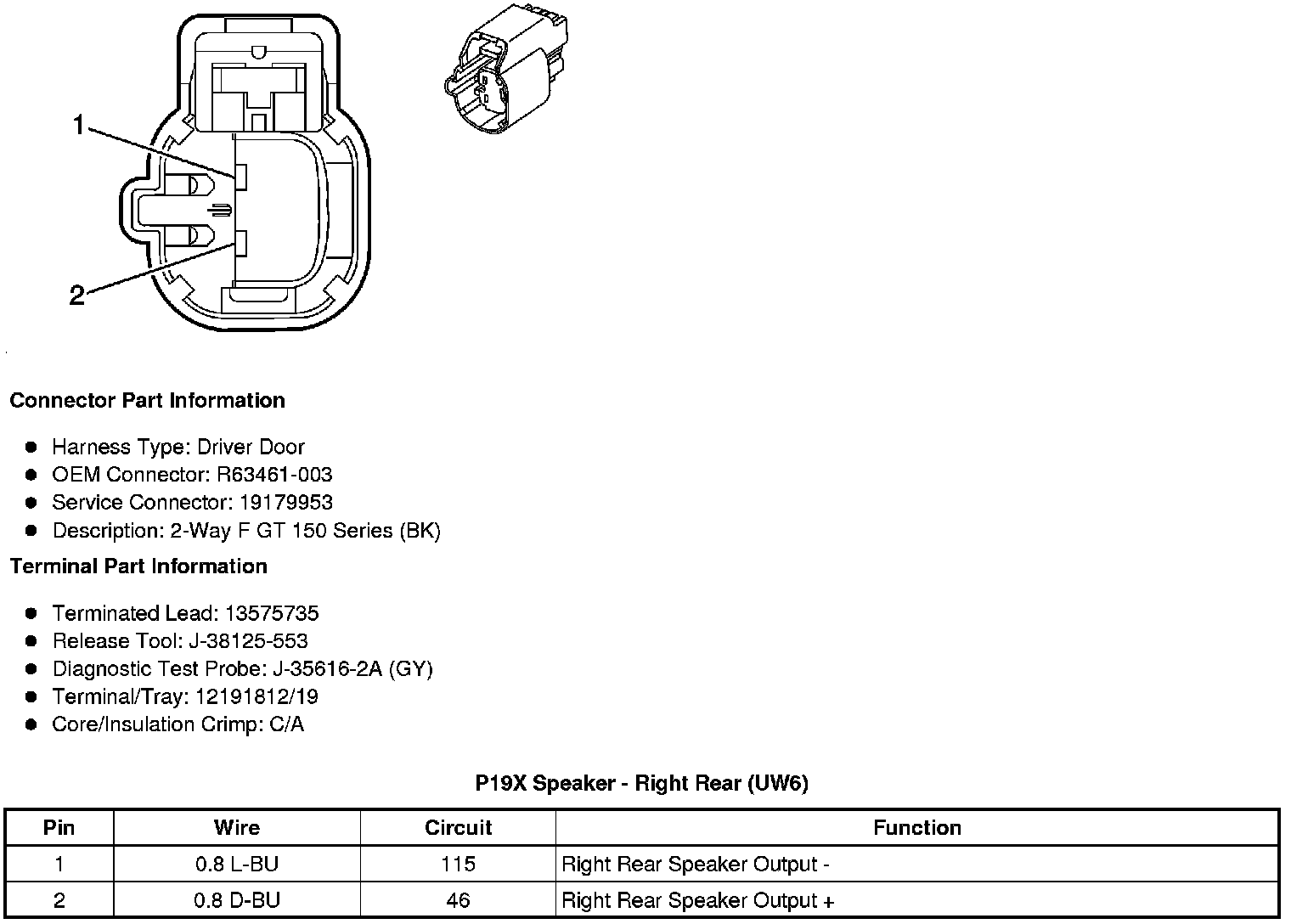

P19X Speaker - Right Rear (UW6)





P19X Speaker - Right Rear (UZ8)
