Steering Column Components

Instrument Panel/Center Console Component Views

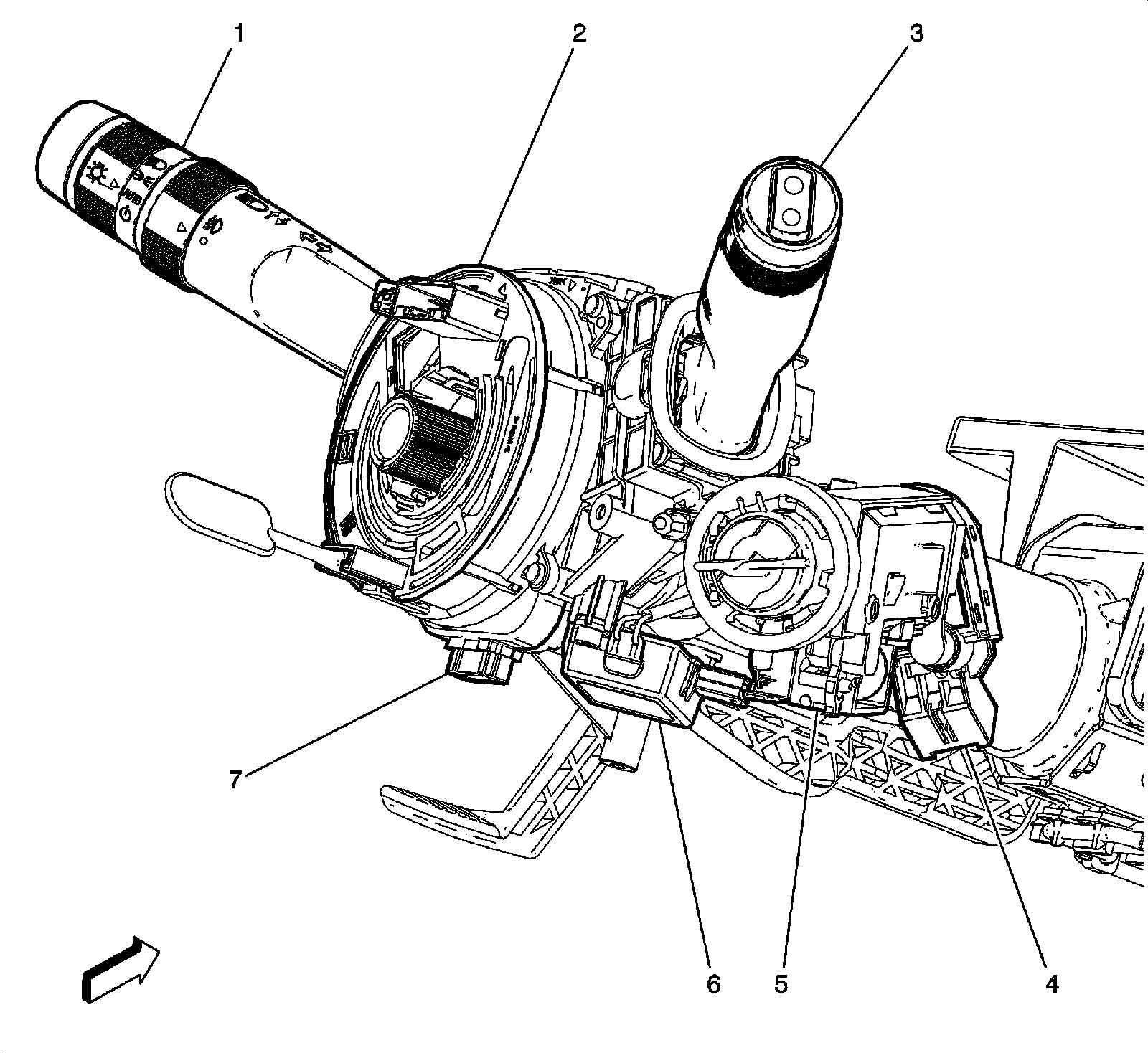

Steering Column Components




1 - S78 Turn Signal/Multifunction Switch
2 - X85 Steering Wheel Air Bag Coil
3 - S82 Windshield Wiper/Washer Switch
4 - S39 Ignition Switch
5 - M93 Ignition Cylinder Lock Control Solenoid Actuator
6 - B101 Immobilizer Antenna
7 - B99 Steering Wheel Angle Sensor
