Battery Current Sensor: Locations

Front of Vehicle/Engine Compartment Component Views

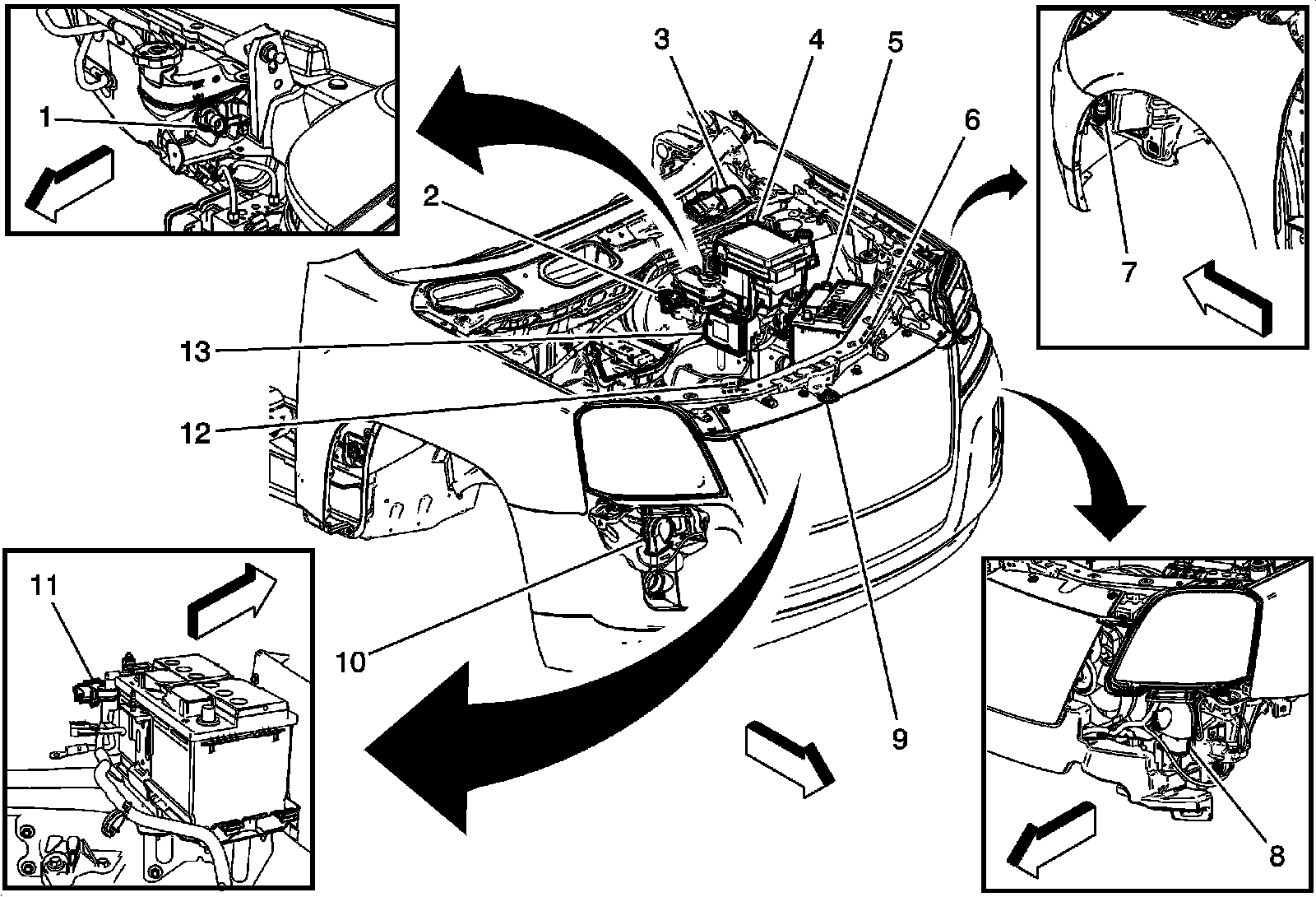

Engine Compartment Components (3 of 3)




1 - B20 Brake Fluid Level Switch
2 - B19B Brake Booster Vacuum Sensor
3 - M75 Windshield Wiper Motor
4 - X50A Fuse Block - Underhood
5 - C1 Battery
6 - B63LF Front Impact Sensor - Left
7 - G24 Windshield Washer Pump
8 - P12B Horn - Low Note
9 - B55 Hood Ajar Switch (BTV)
10 - P12A Horn - High Note
11 - B18 Battery Current Sensor
12 - B63RF Front Impact Sensor - Right
13 - K17 Electronic Brake Control Module
