Body Control Module: Diagrams

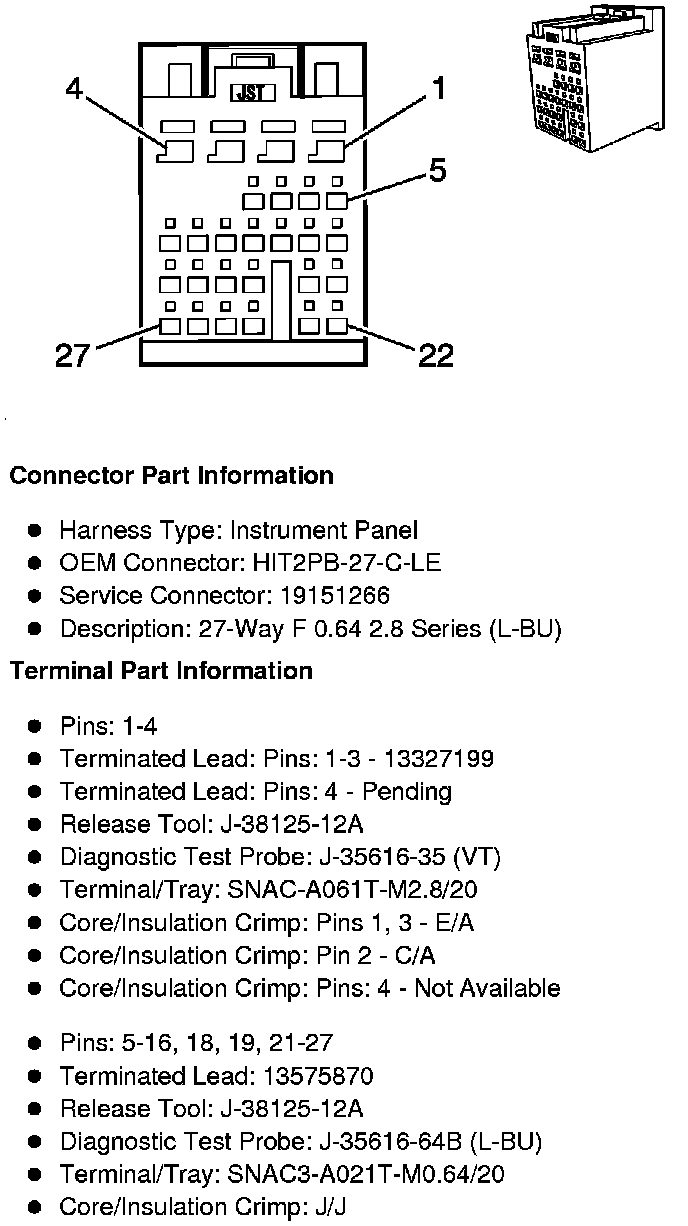

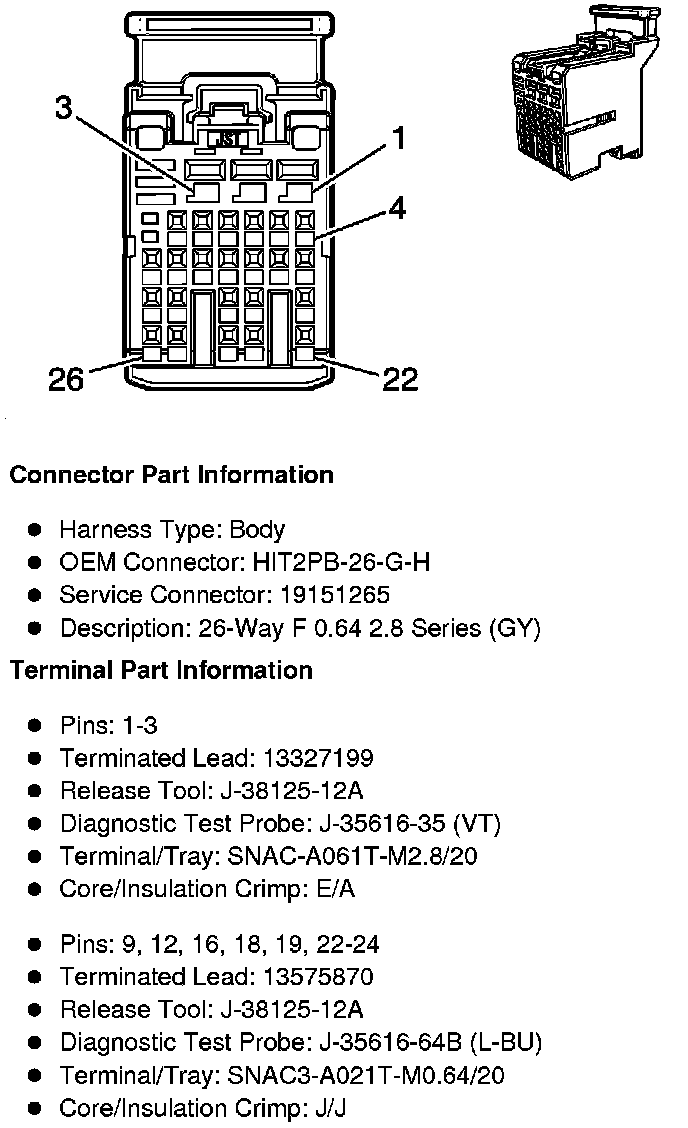

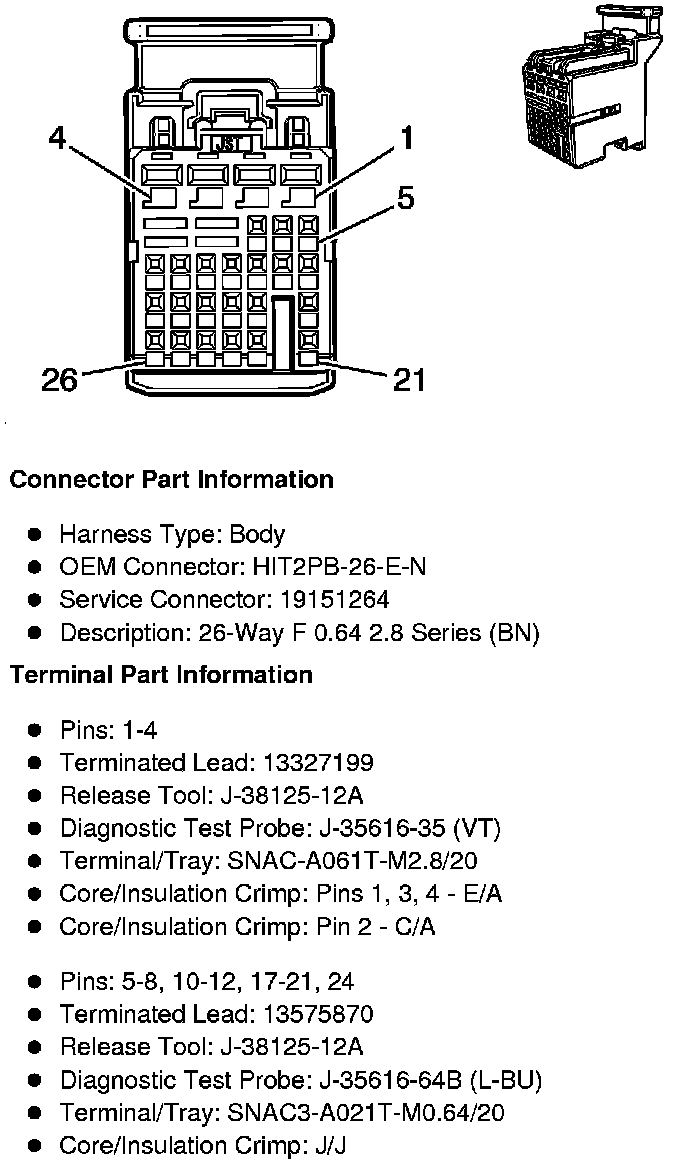

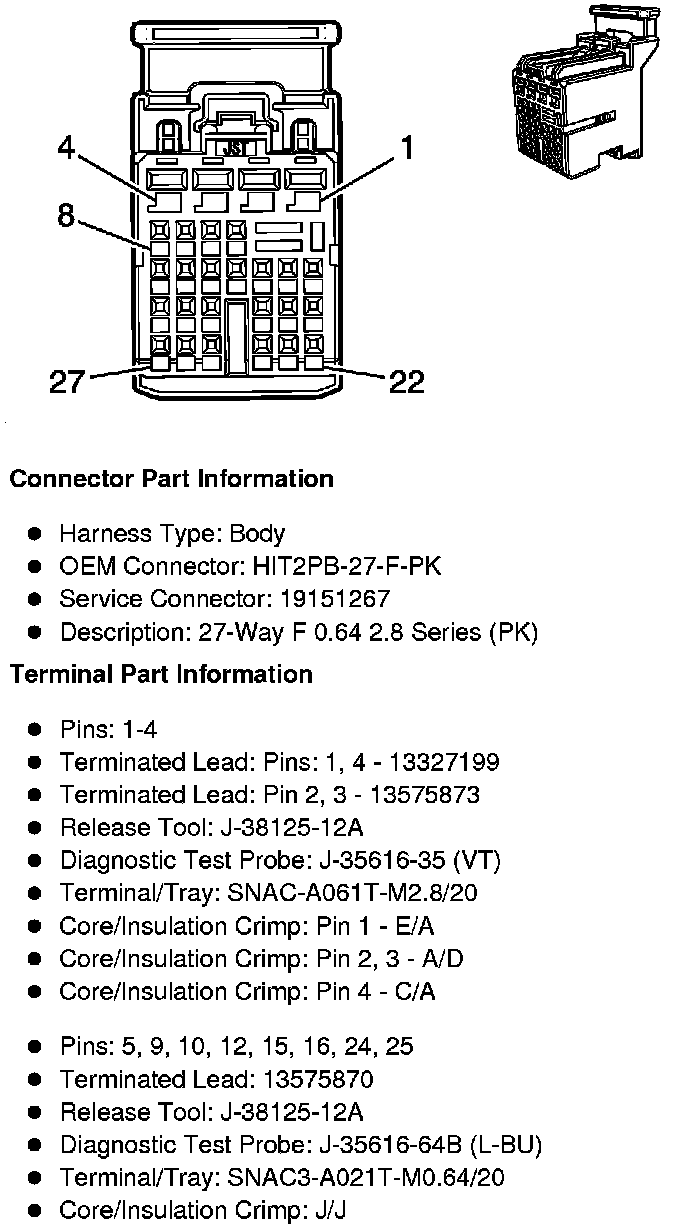

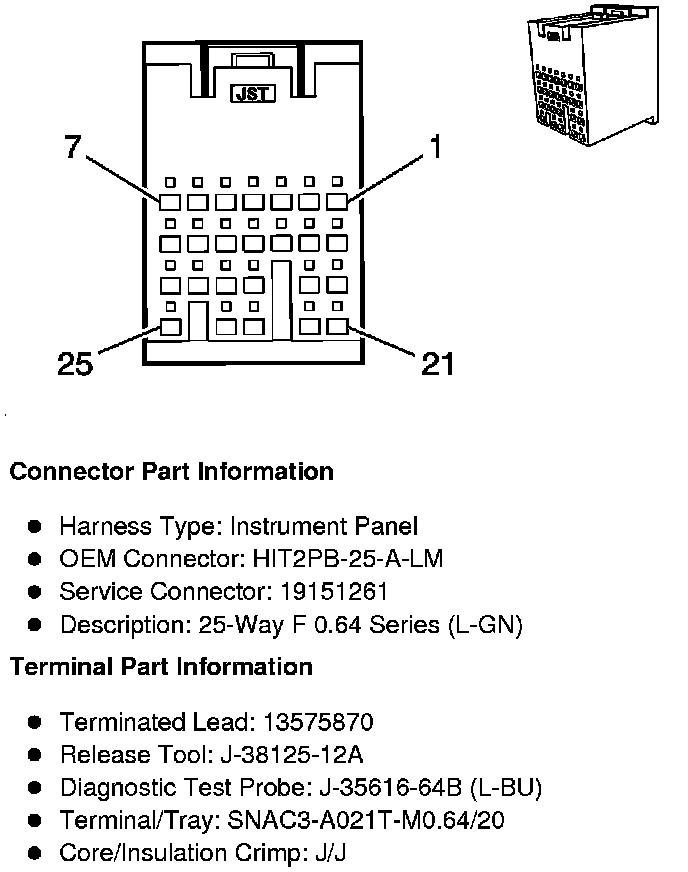

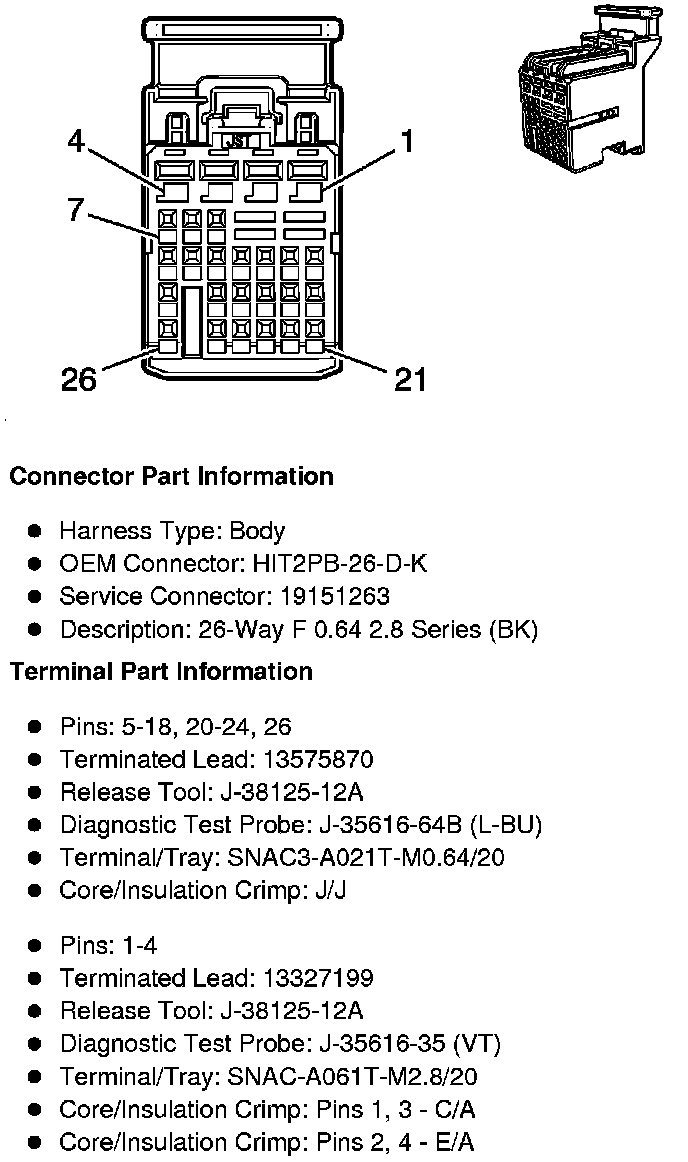

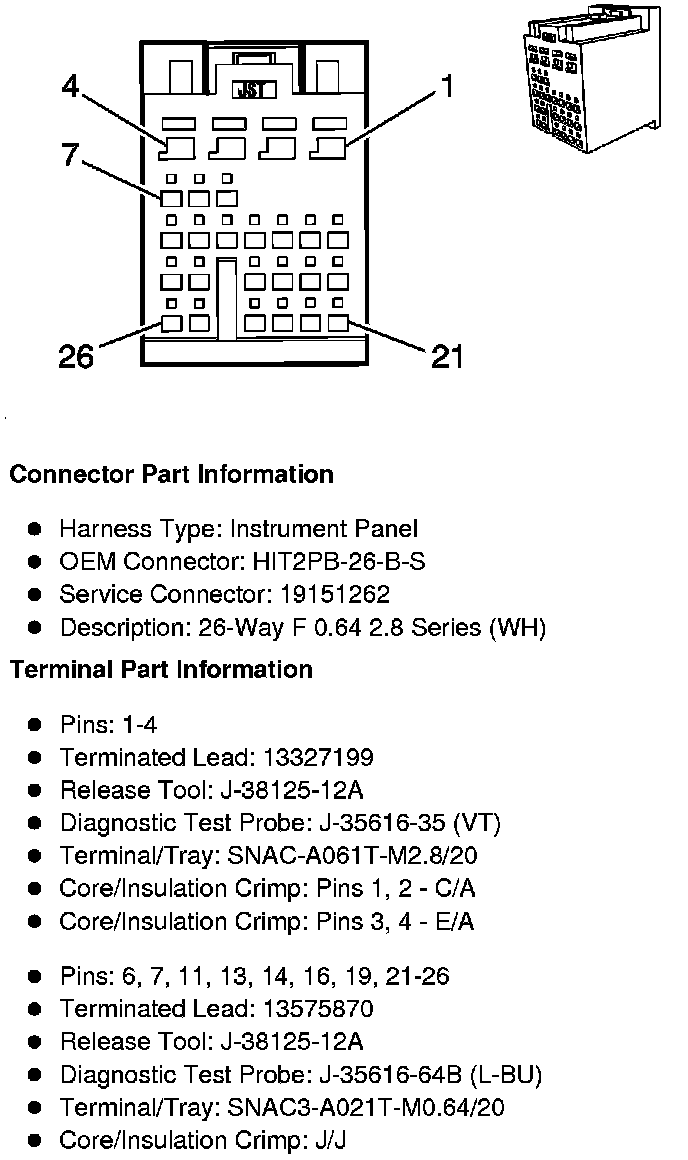

Component Connector End Views

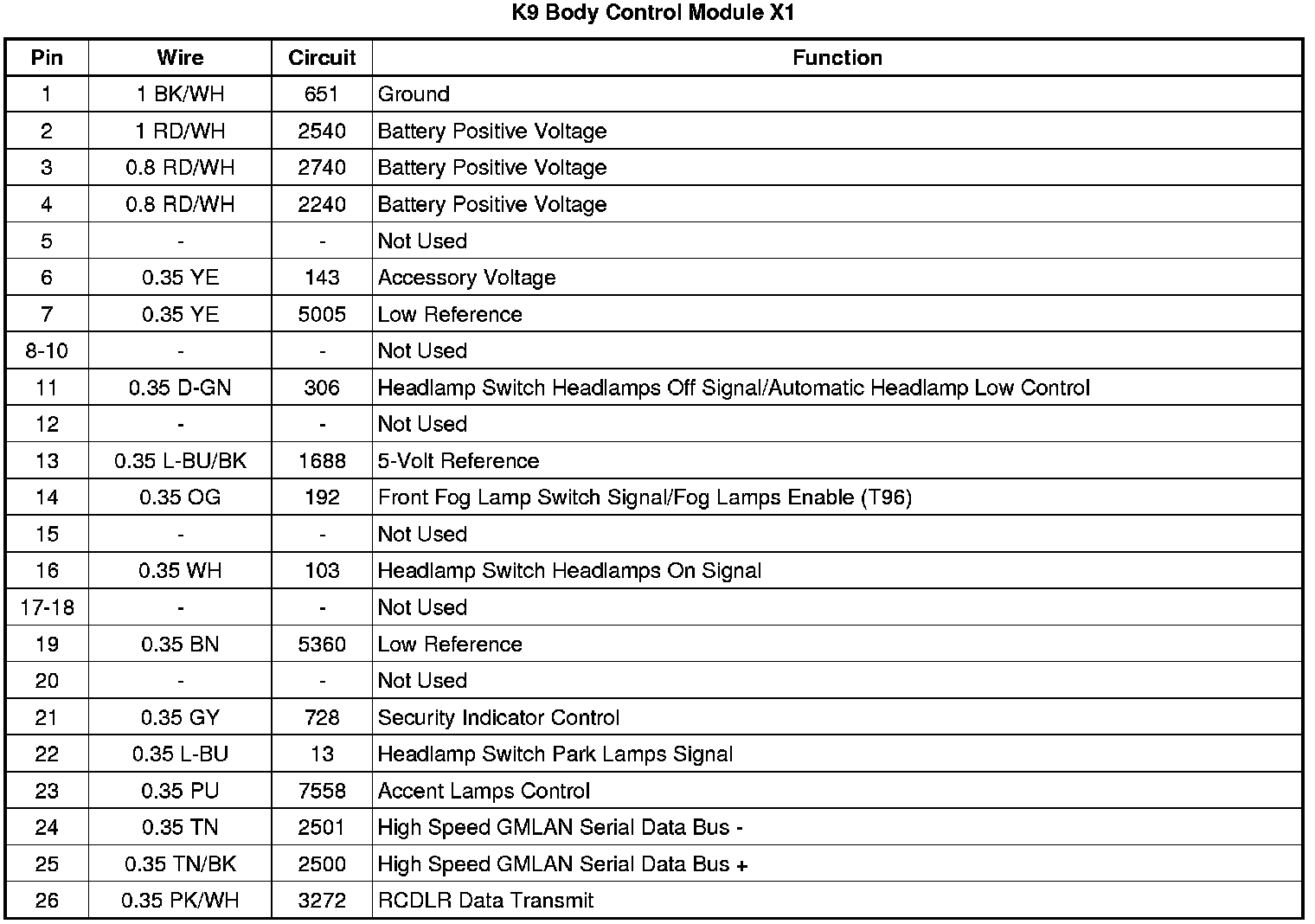

K9 Body Control Module X1

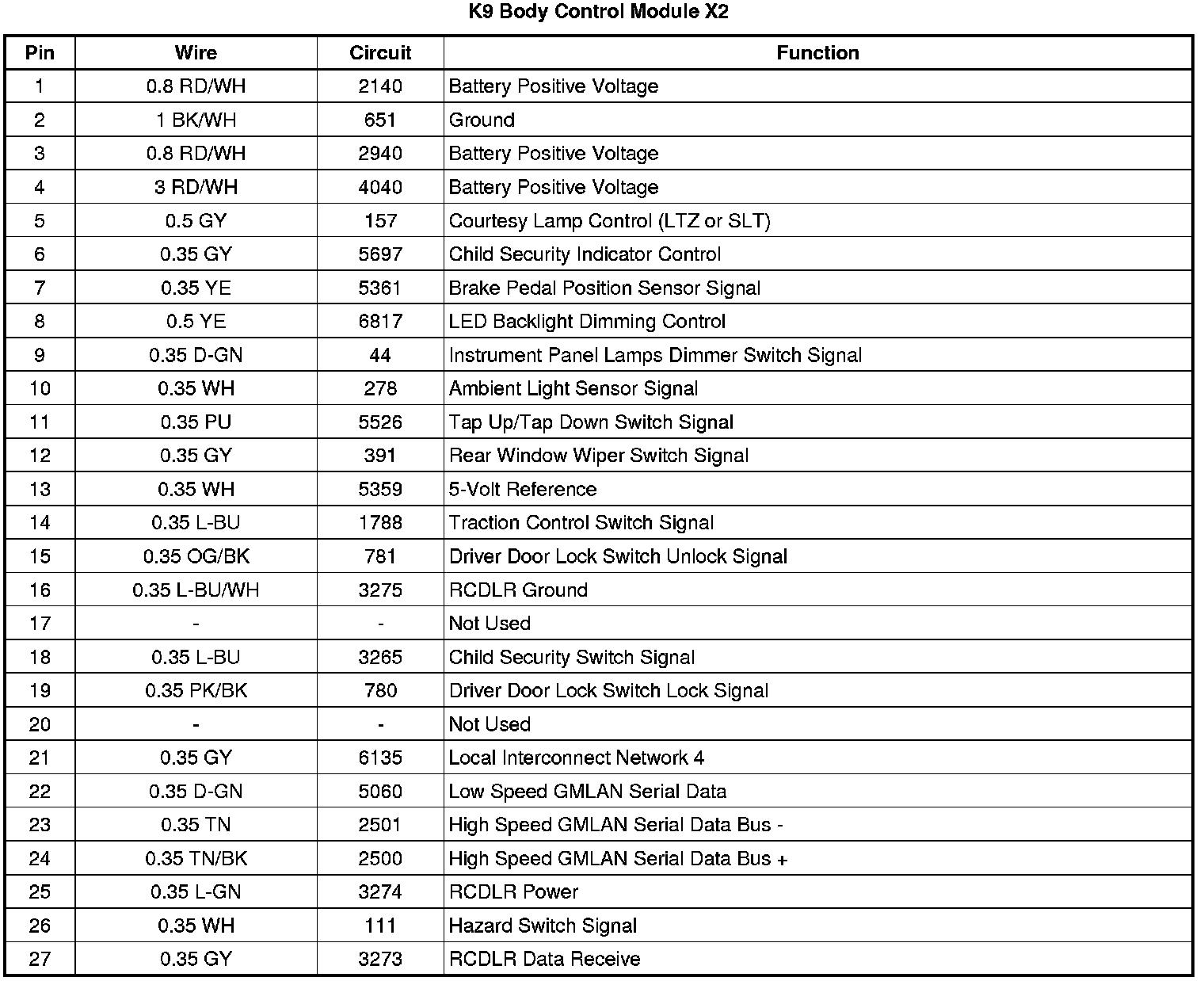

K9 Body Control Module X2

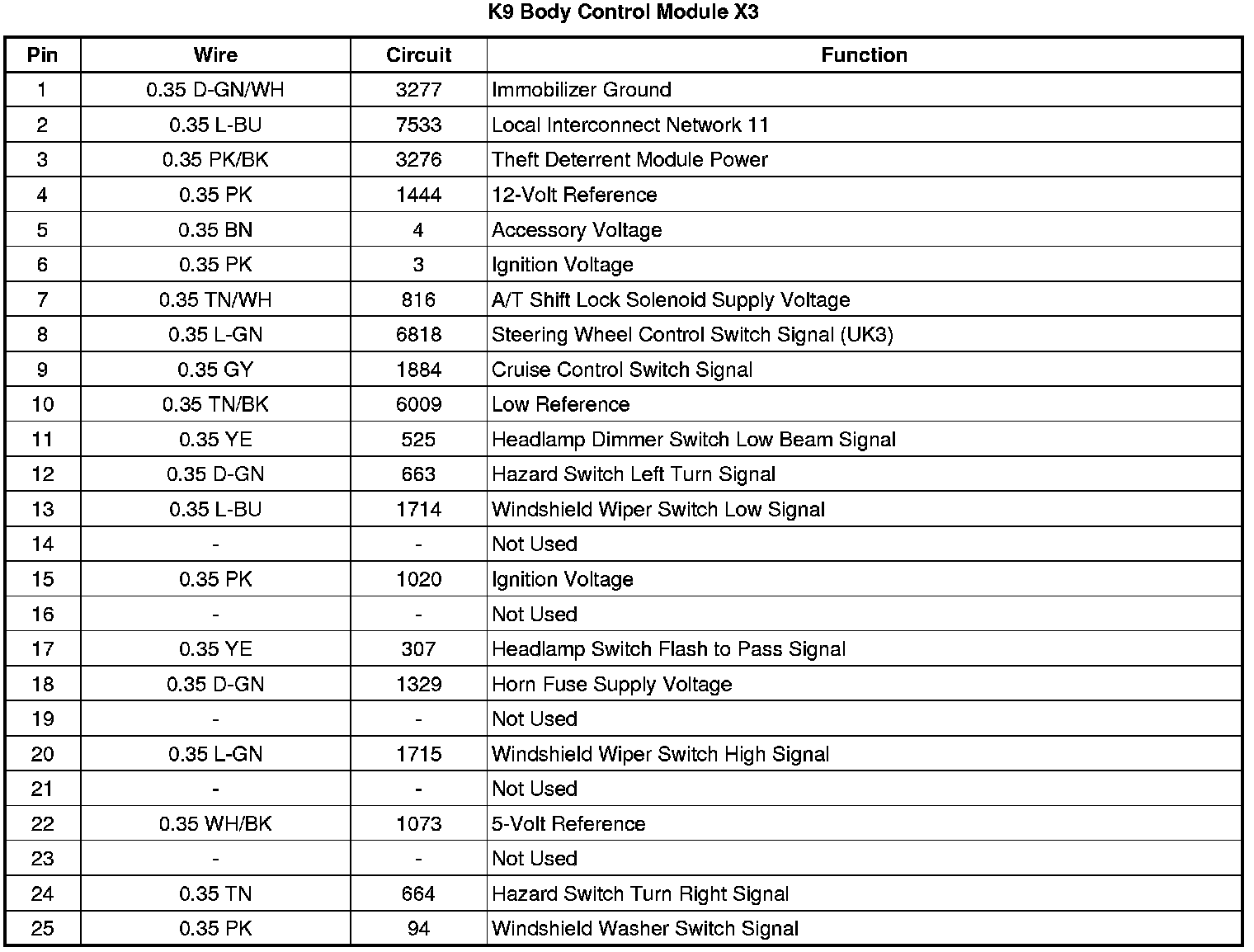

K9 Body Control Module X3

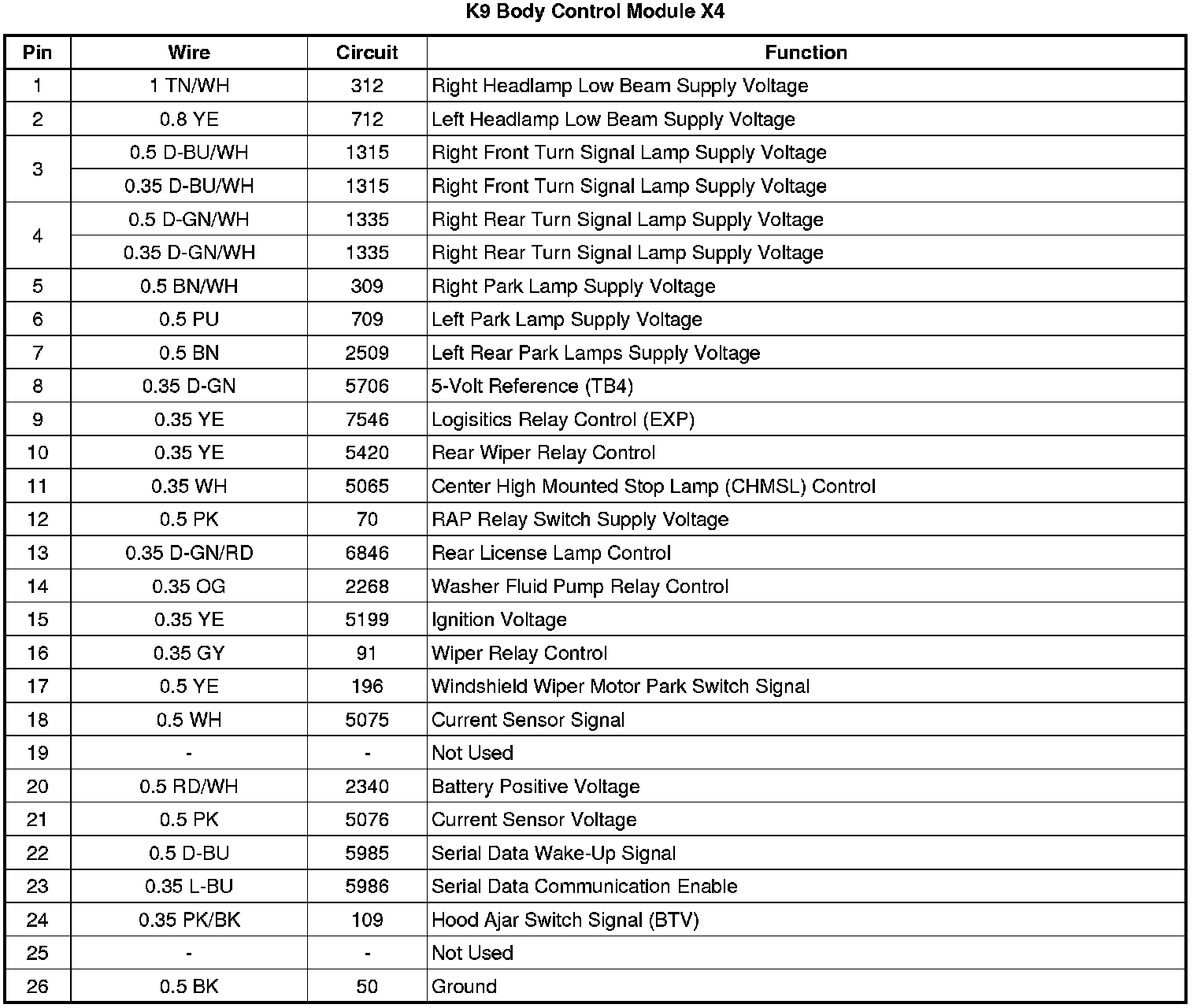

K9 Body Control Module X4

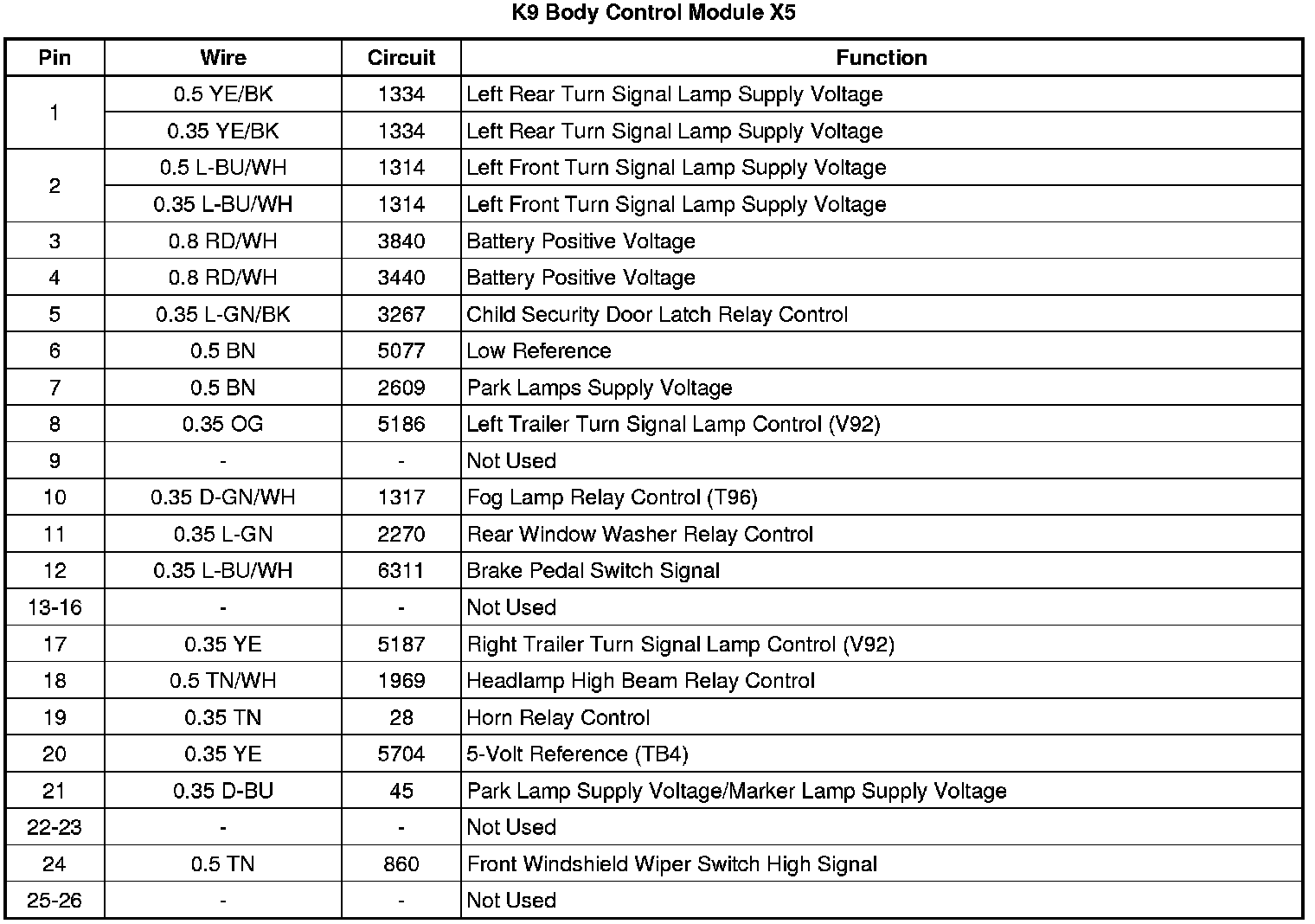

K9 Body Control Module X5

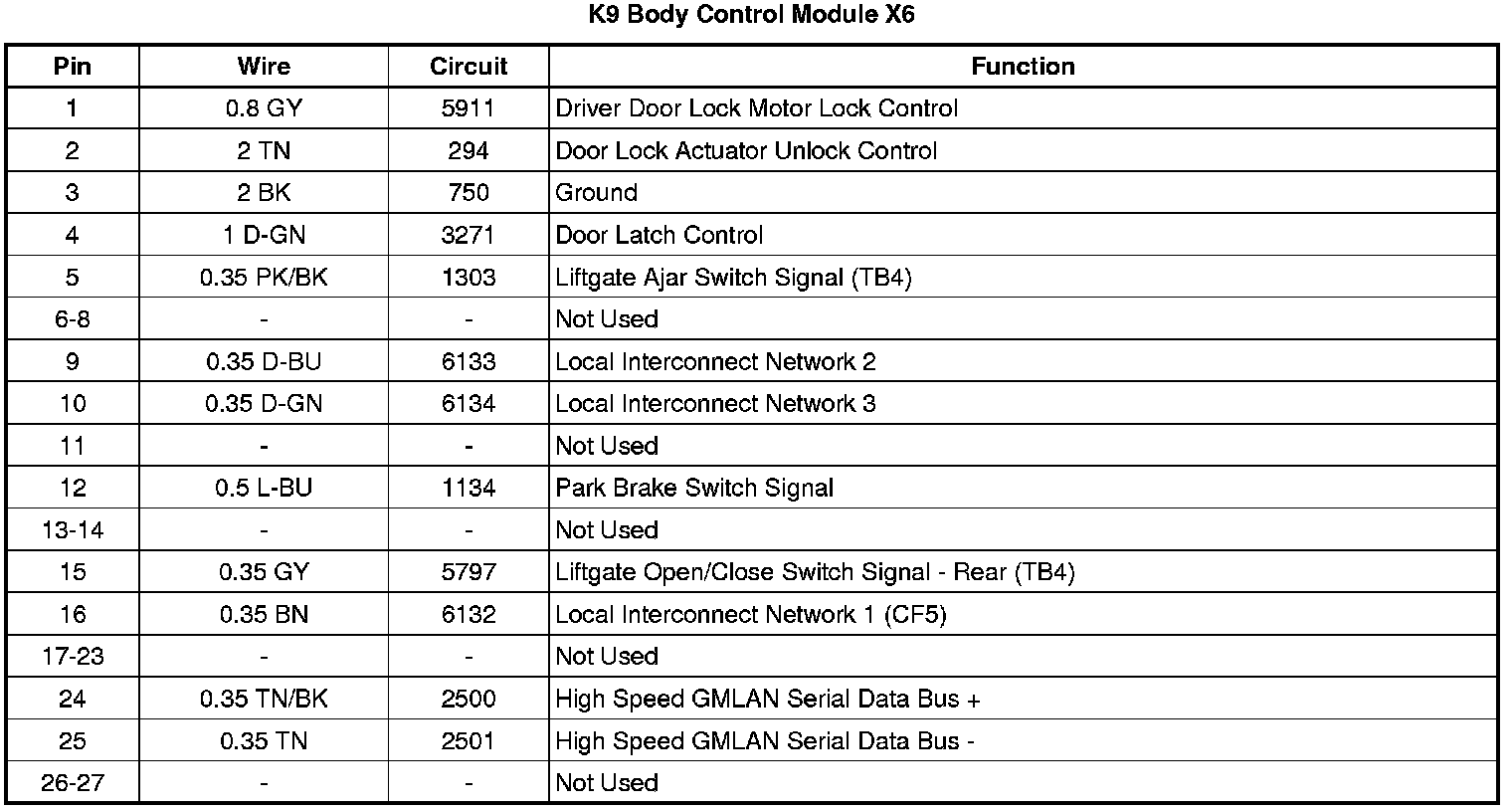

K9 Body Control Module X6

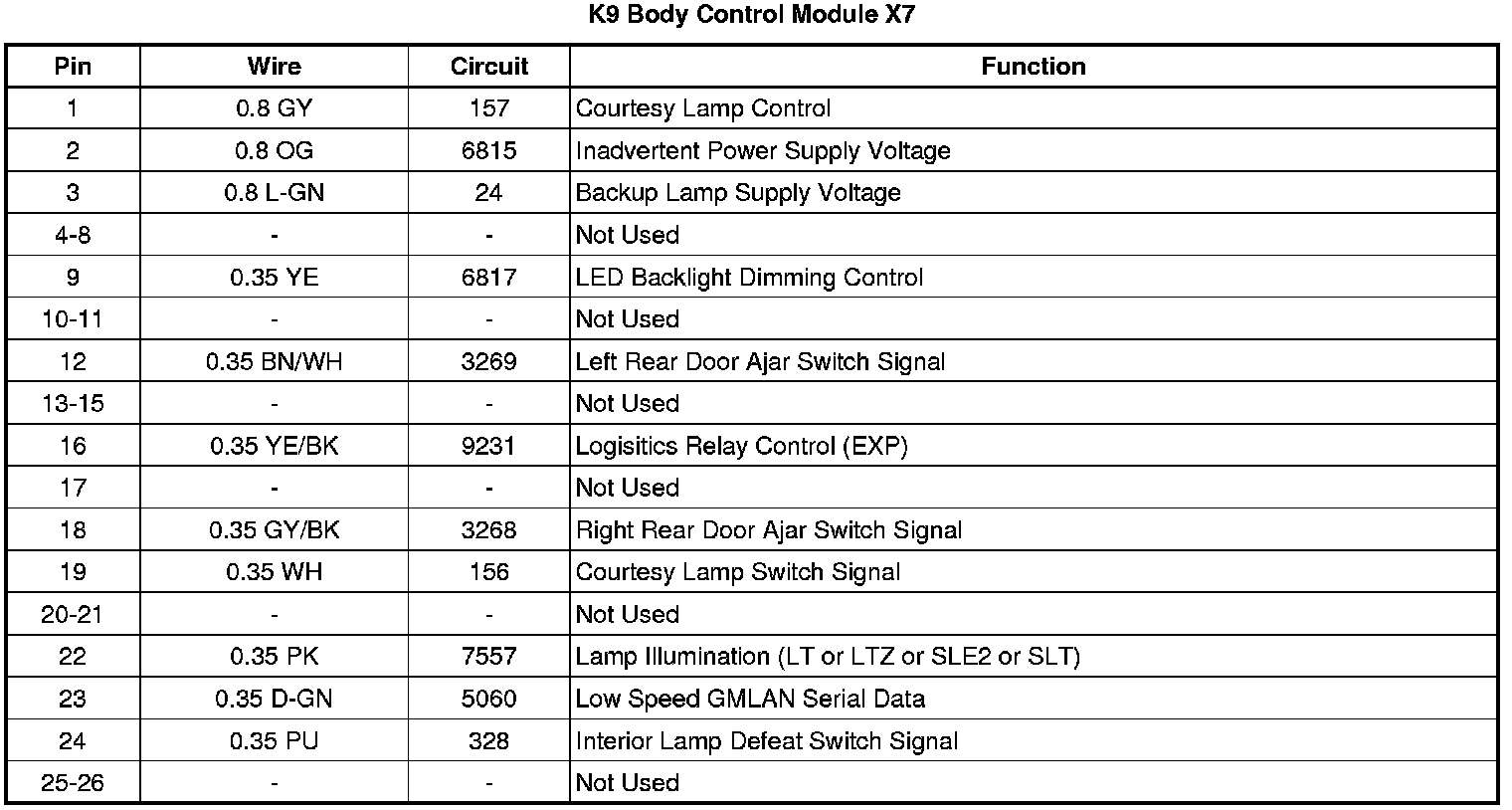

K9 Body Control Module X7
