Body Control Module: Locations

Instrument Panel/Center Console Component Views

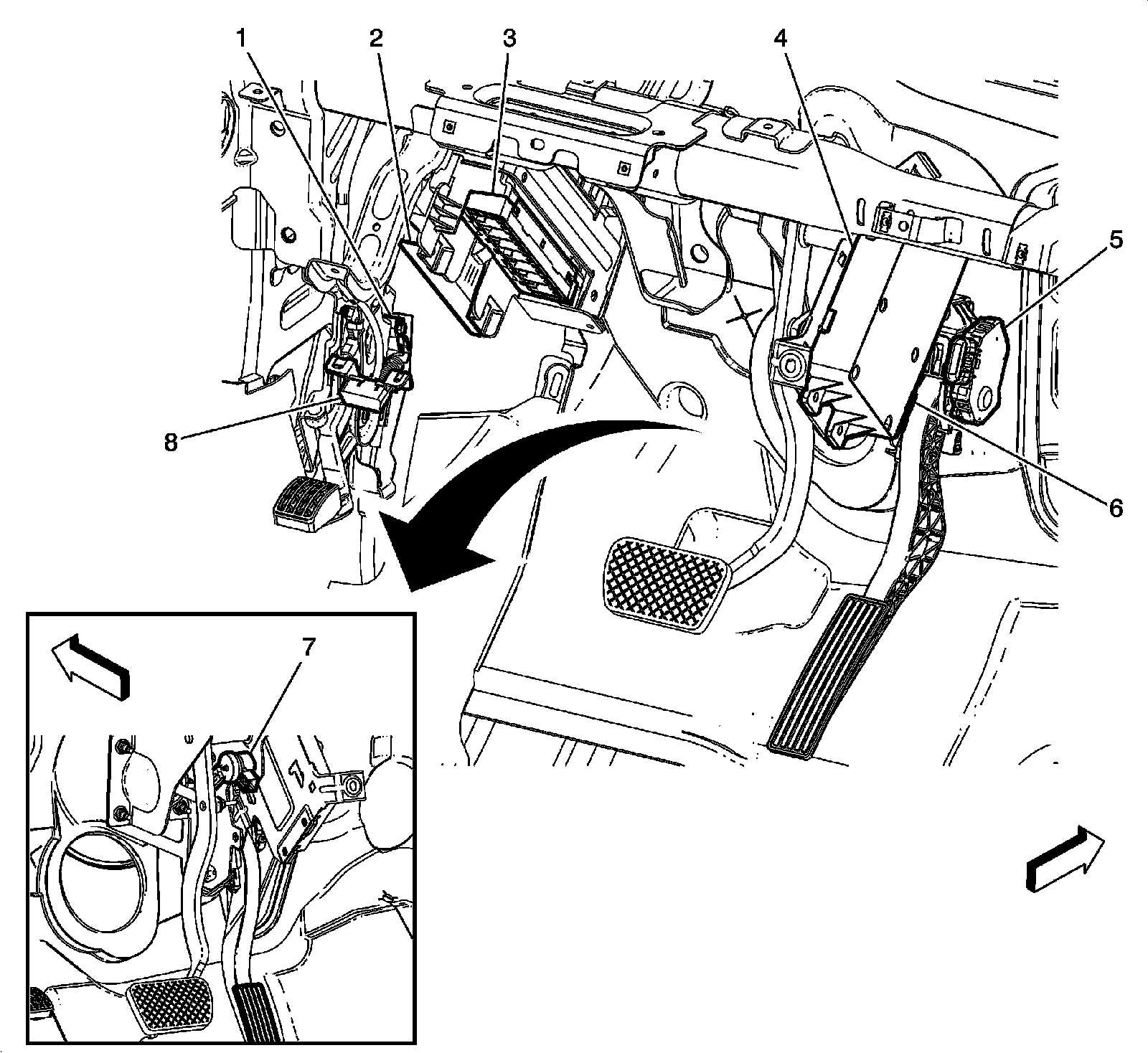

Lower Left of the Instrument Panel Components




1 - B80 Park Brake Switch
2 - T3 Audio Amplifier
3 - K9 Body Control Module
4 - K73 Telematics Communication Interface Control Module (UE1)
5 - B107 Accelerator Pedal Position Sensor
6 - T4S Wireless Communication Antenna - Bluetooth (UE1 with UPF)
7 - B22 Brake Pedal Position Sensor
8 - X84 Data Link Connector
