Steering Column Components

Instrument Panel/Center Console Component Views

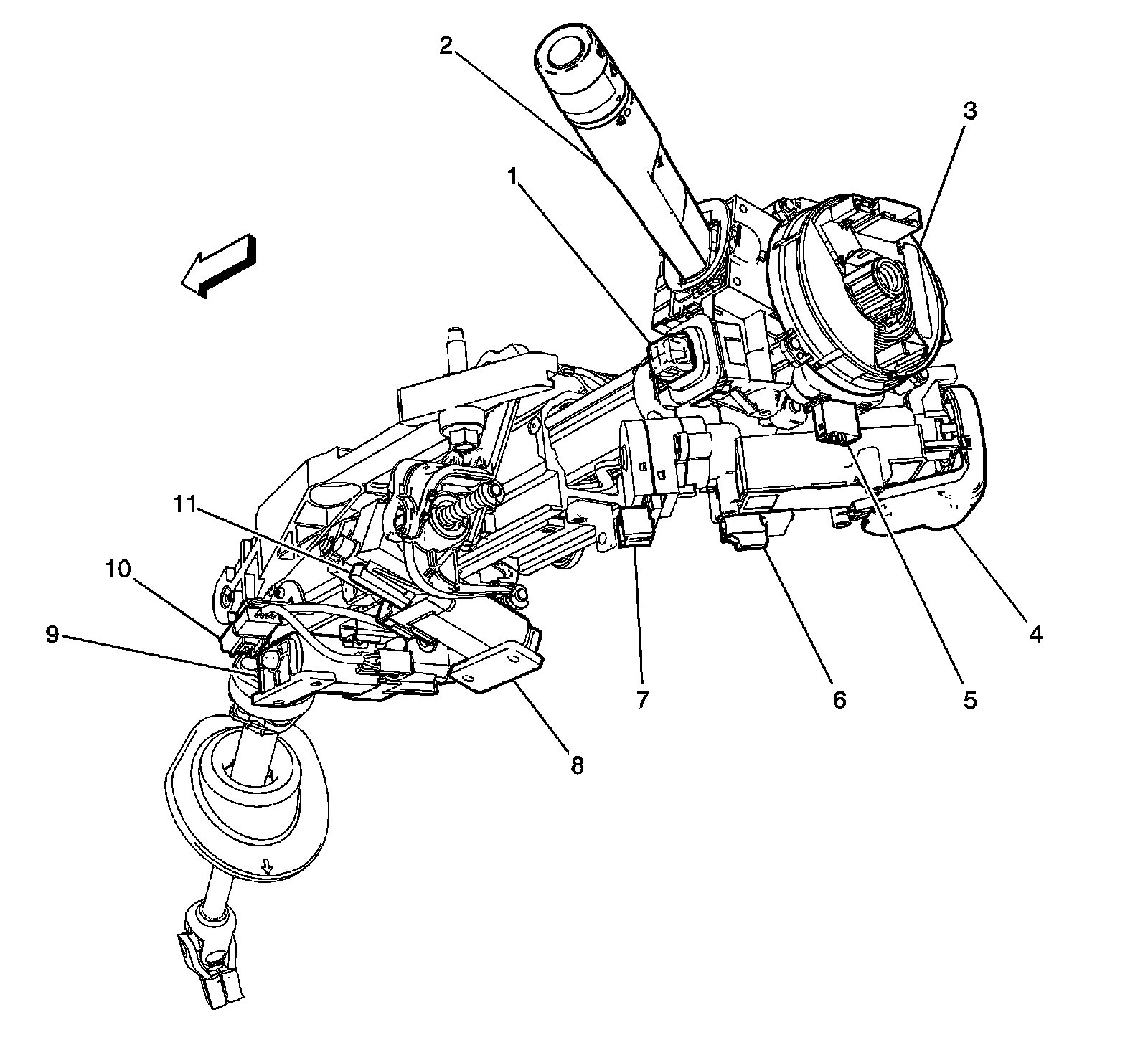

Steering Column Components





1 - Steering Wheel/Column Tilt/Telescope Switch (N38)

2 - Turn Signal/Multifunction Switch

3 - Inflatable Restraint Steering Wheel Module Coil

4 - Theft Deterrent Module (TDM)

5 - Steering Wheel Speed/Position Sensor

6 - Ignition Lock Cylinder Control Actuator

7 - Ignition Switch

8 - Steering Wheel Tilt Actuator (N38)

9 - Steering Column Telescope Actuator (N38)

10 - X295

11 - Steering Wheel Tilt Position Sensor (N38)
