Fuel Pump Flow Control Module Replacement

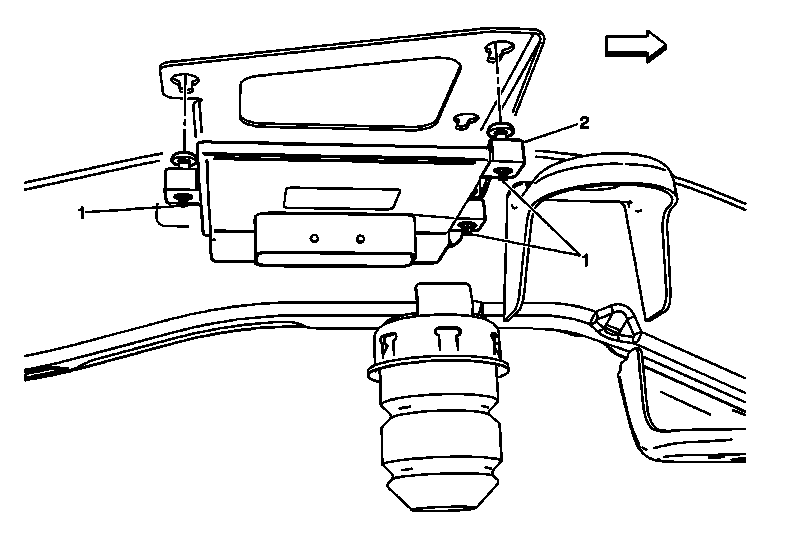

Fig 1: View Of Fuel Pump Flow Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Fuel Pump Flow Control Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution TIP: The bolts used are two headed and can be loosened from the module side, then maneuvered out of the slots. Tighten 9 N.m (80 lb in)
2	Fuel Pump Flow Control Module Procedure Disconnect the electrical connector. If replacing the fuel pump flow control module, program the control module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Fuel Pump Flow Control Module Fastener (Qty: 3)

CAUTION:

TIP: The bolts used are two headed and can be loosened from the module side, then maneuvered out of the slots.
Tighten
9 N.m (80 lb in)

Fuel Pump Flow Control Module

Procedure

Disconnect the electrical connector.
If replacing the fuel pump flow control module, program the control module. Refer to Control Module References .
