Rear of Radiator Support Components

Front of Vehicle/Engine Compartment Component Views

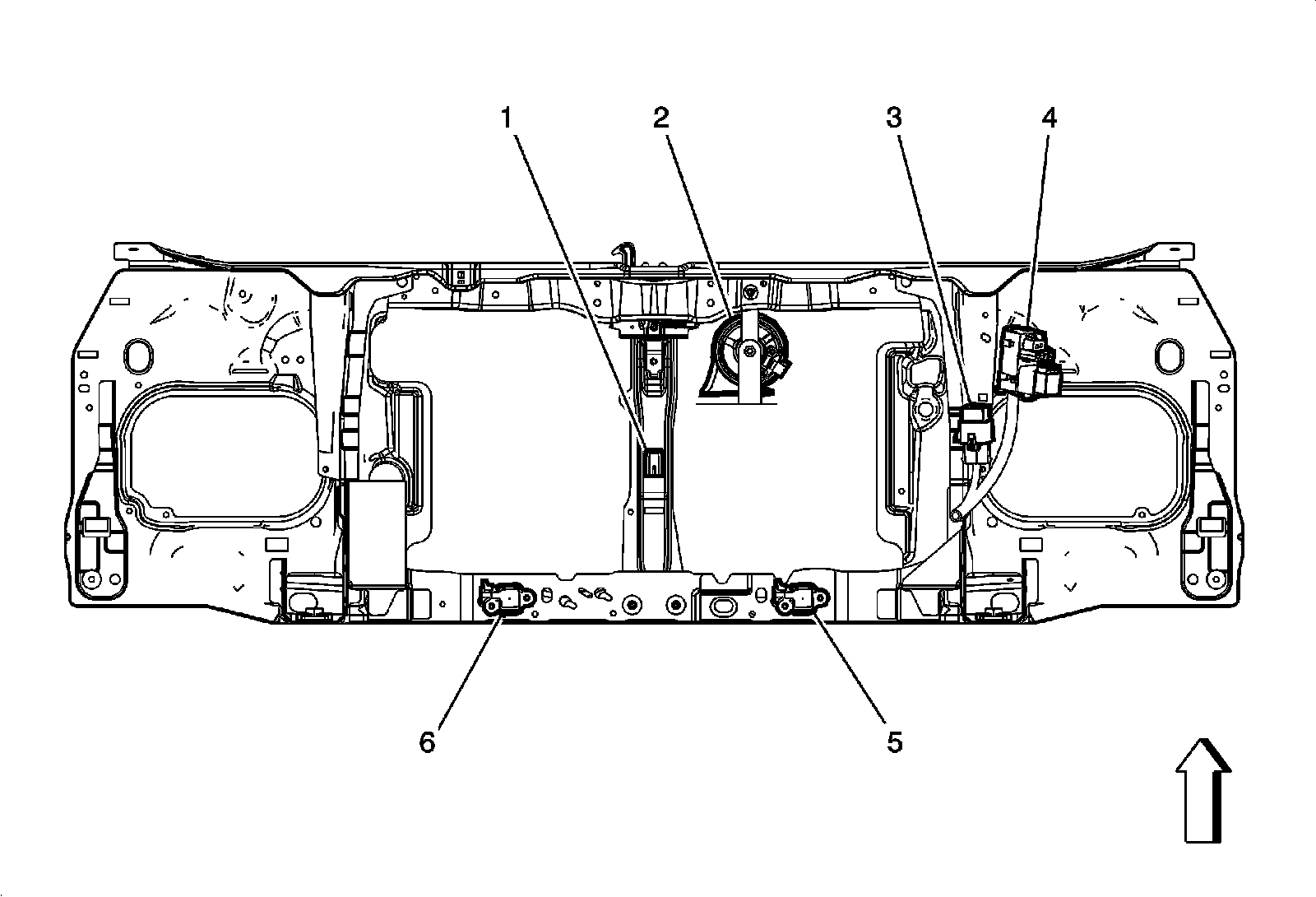

Rear of Radiator Support Components




1 - Ambient Air Temperature Sensor (DF5)
2 - Horn Assembly
3 - Secondary Air Injection (AIR) Pump Relay (K18)
4 - Fuse Block - Secondary Air Injection (AIR) Pump (K18)
5 - Inflatable Restraint Front End Sensor - Right
6 - Inflatable Restraint Front End Sensor - Left
