Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Position Sensor Replacement

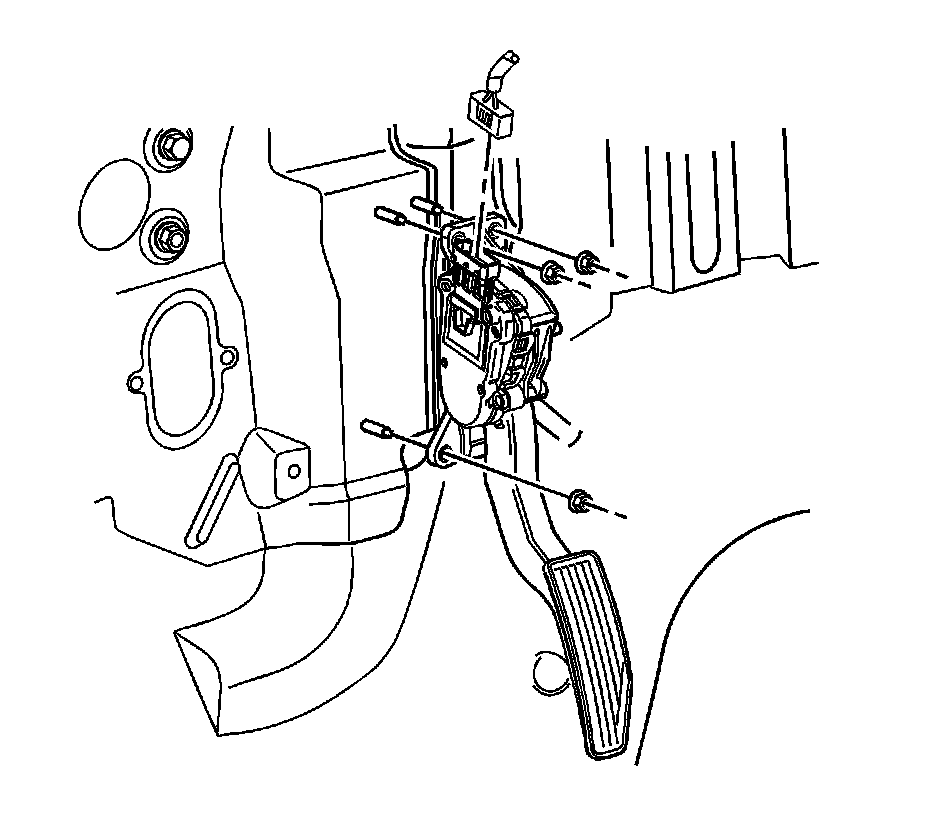

Removal Procedure




1. Disconnect the accelerator pedal position (APP) sensor electrical connector.
2. Remove the APP sensor nuts.
3. Remove the APP sensor from the vehicle.

Installation Procedure




1. Position the APP sensor over the studs.

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the APP sensor nuts.

Tighten the APP sensor mounting nuts to 9 Nm (80 lb in).

3. Connect the APP sensor electrical connector.
4. Inspect below the pedal for binding, to ensure full range of motion.
