Accelerator Pedal Position (APP) Sensor

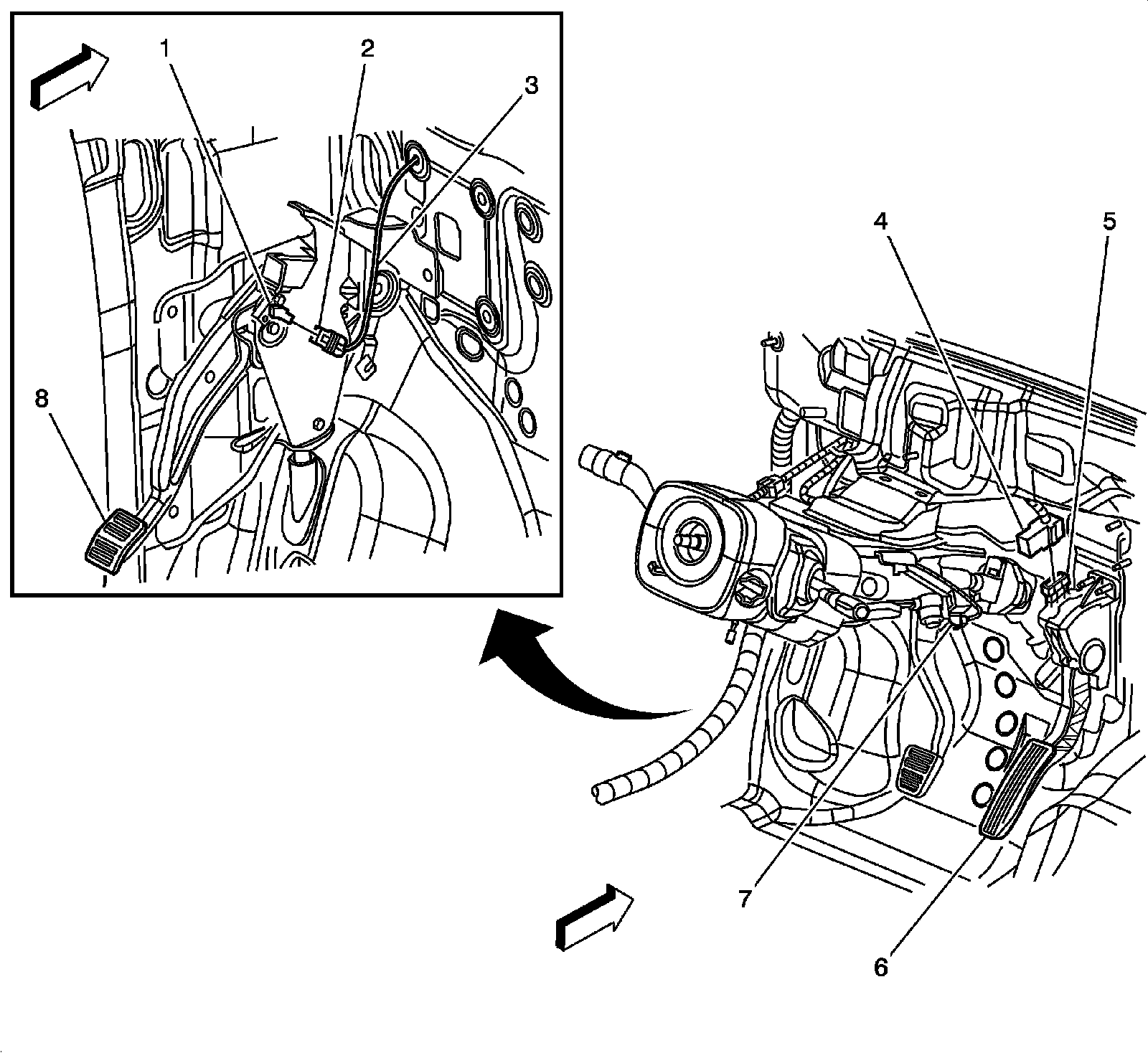

Instrument Panel/Center Console Component Views

Behind the Left Side of the I/P Components




1 - Park Brake Switch
2 - Park Brake Switch Connector
3 - Body Harness
4 - Accelerator Pedal Position (APP) Sensor Connector
5 - Accelerator Pedal Position (APP) Sensor
6 - Accelerator Pedal
7 - Automatic Transmission Shift Lock Control Solenoid (M30)
8 - Park Brake Lever
