Acceleration Sensor, Suspension Control

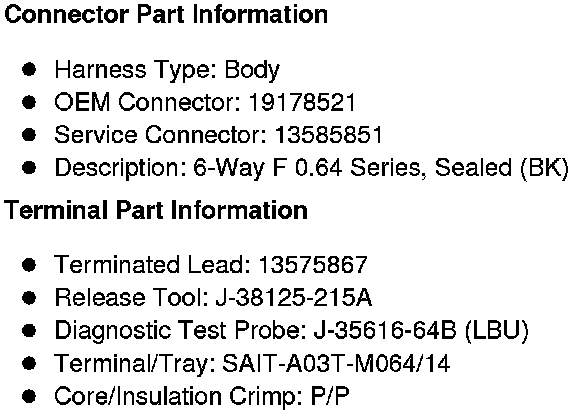

Component Connector End Views

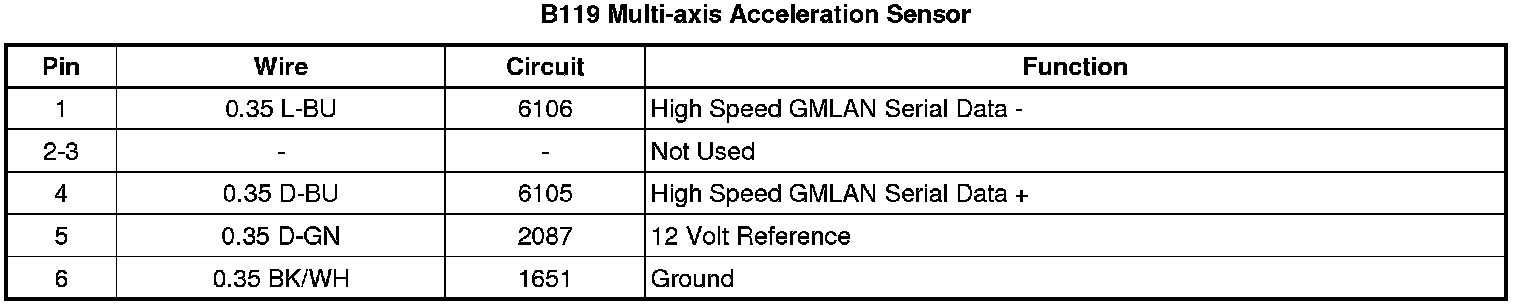

B119 Multi-axis
Acceleration Sensor
