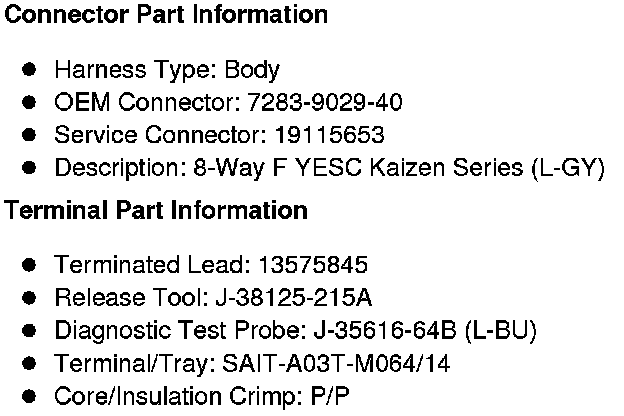

Rear Parking Assist Control Module X2 (UD7)

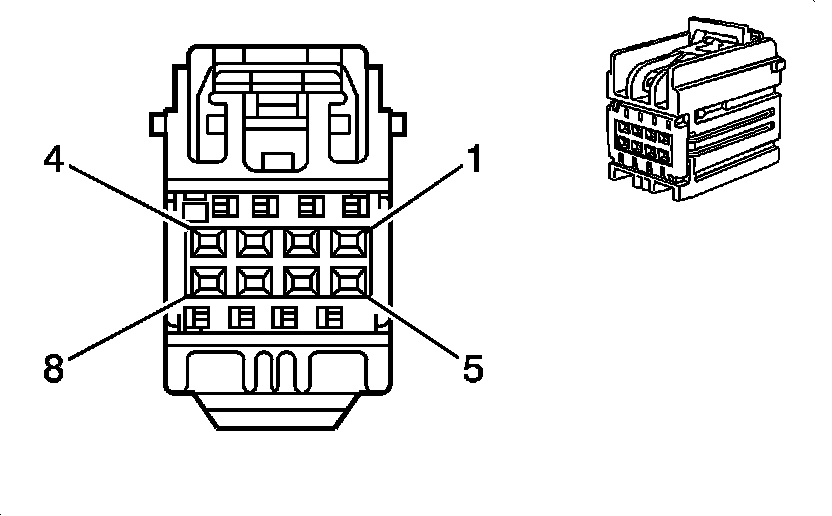

Component Connector End Views

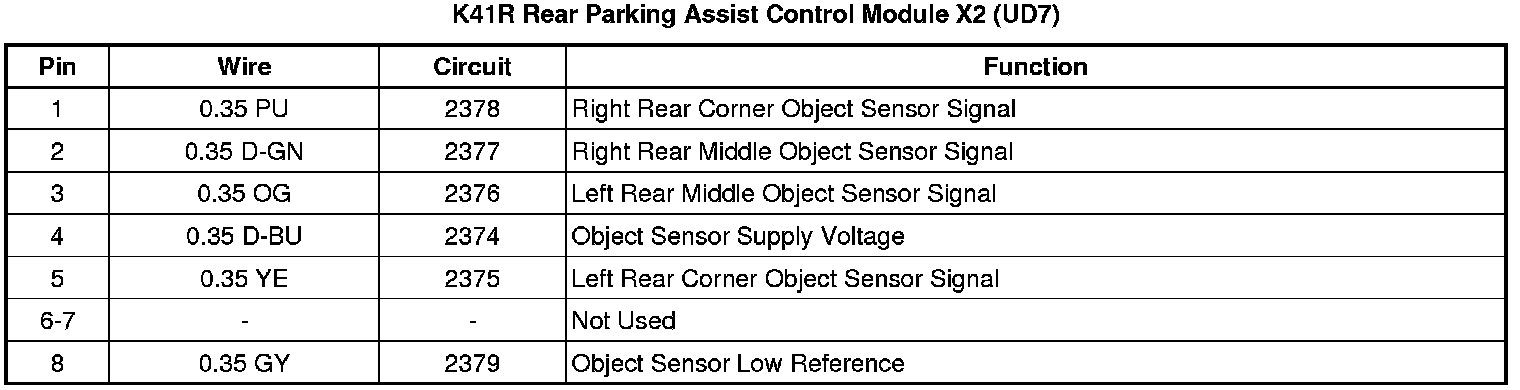

K41R Rear
Parking Assist Control Module
X2 (UD7)
