Seat Heating Control Module X1 (SPO Accessory)

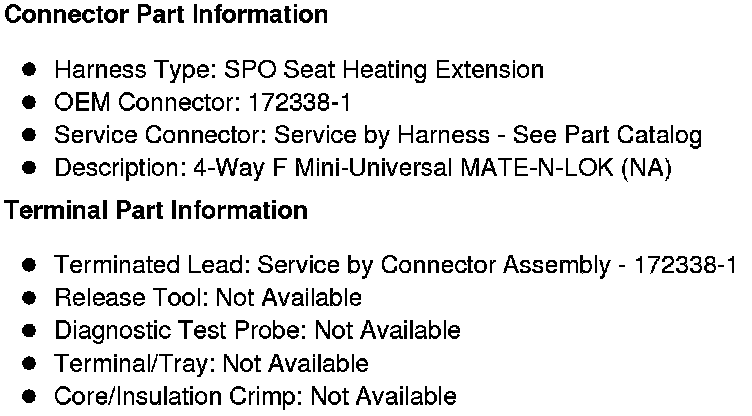

Component Connector End Views

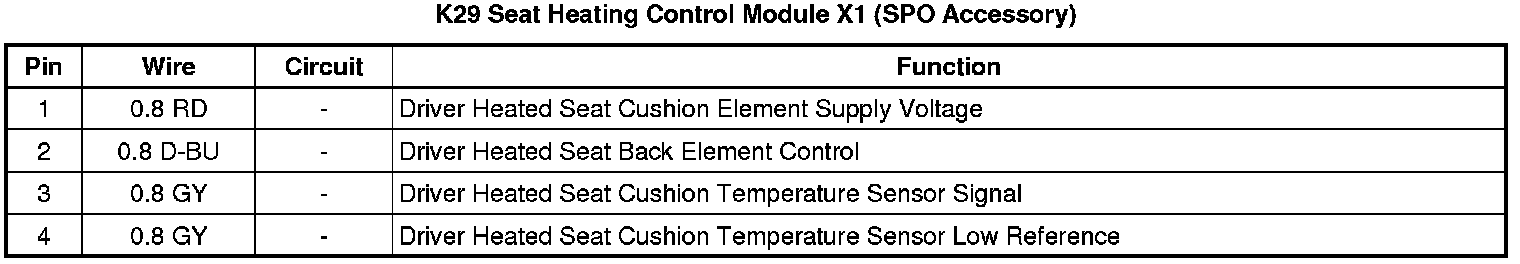

K29 Seat Heating Control Module X1 (SPO Accessory)
