Seat Heating Control Module X3 (KA1 without LTZ or SLT)

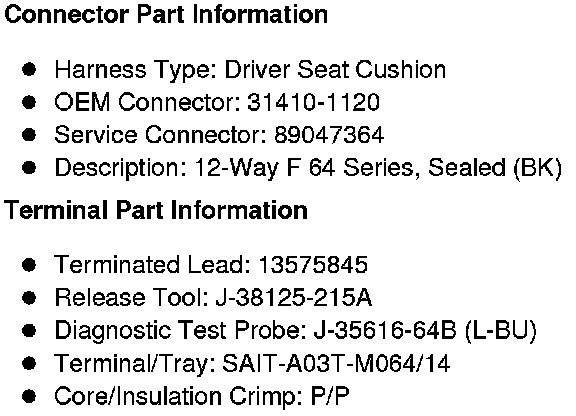

Component Connector End Views

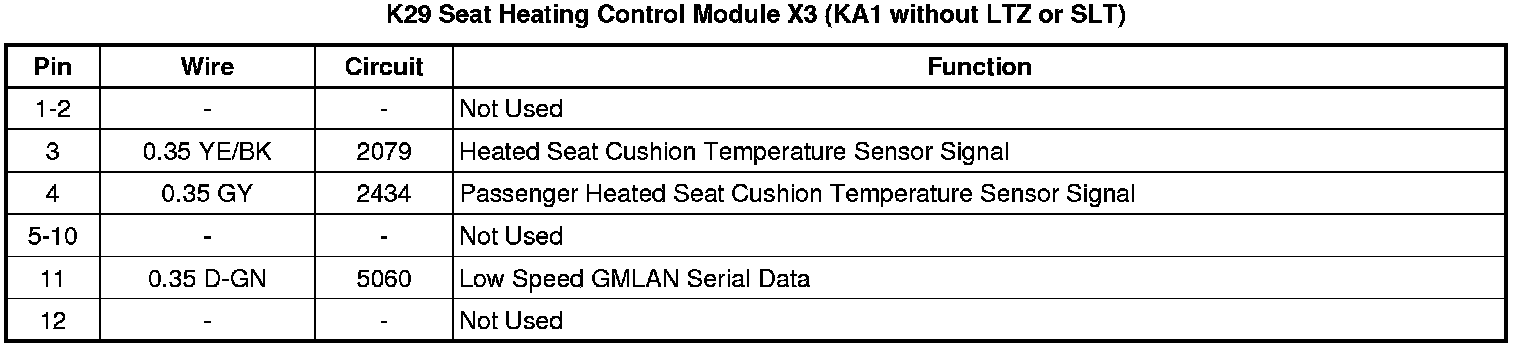

K29 Seat Heating Control Module X3 (KA1 without LTZ or SLT)
