Shifter A/T

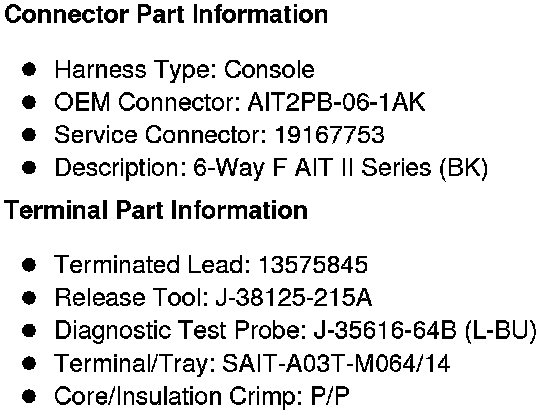

Component Connector End Views

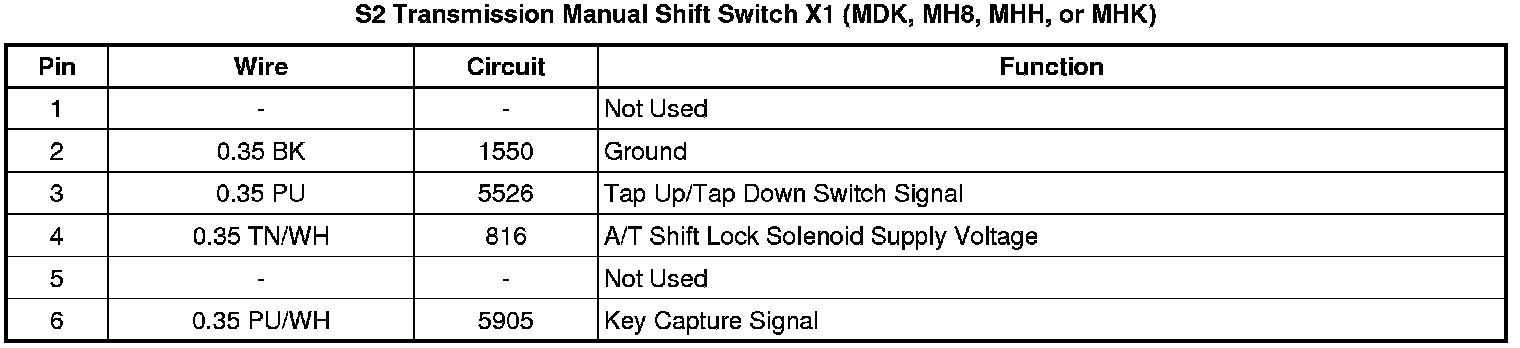

S2 Transmission Manual Shift Switch X1 (MDK, MH8, MHH, or MHK)
