Steering Wheel Controls Switch - Right

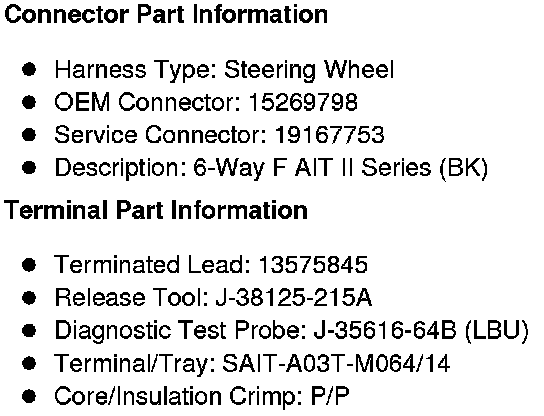

Component Connector End Views

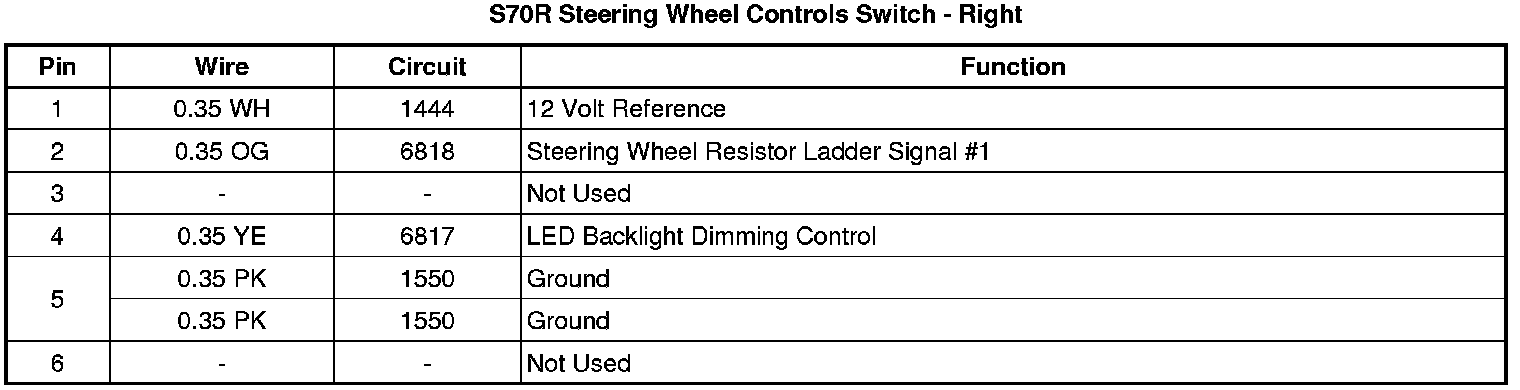

S70R Steering Wheel Controls Switch - Right
