Keyless Entry Transmitter

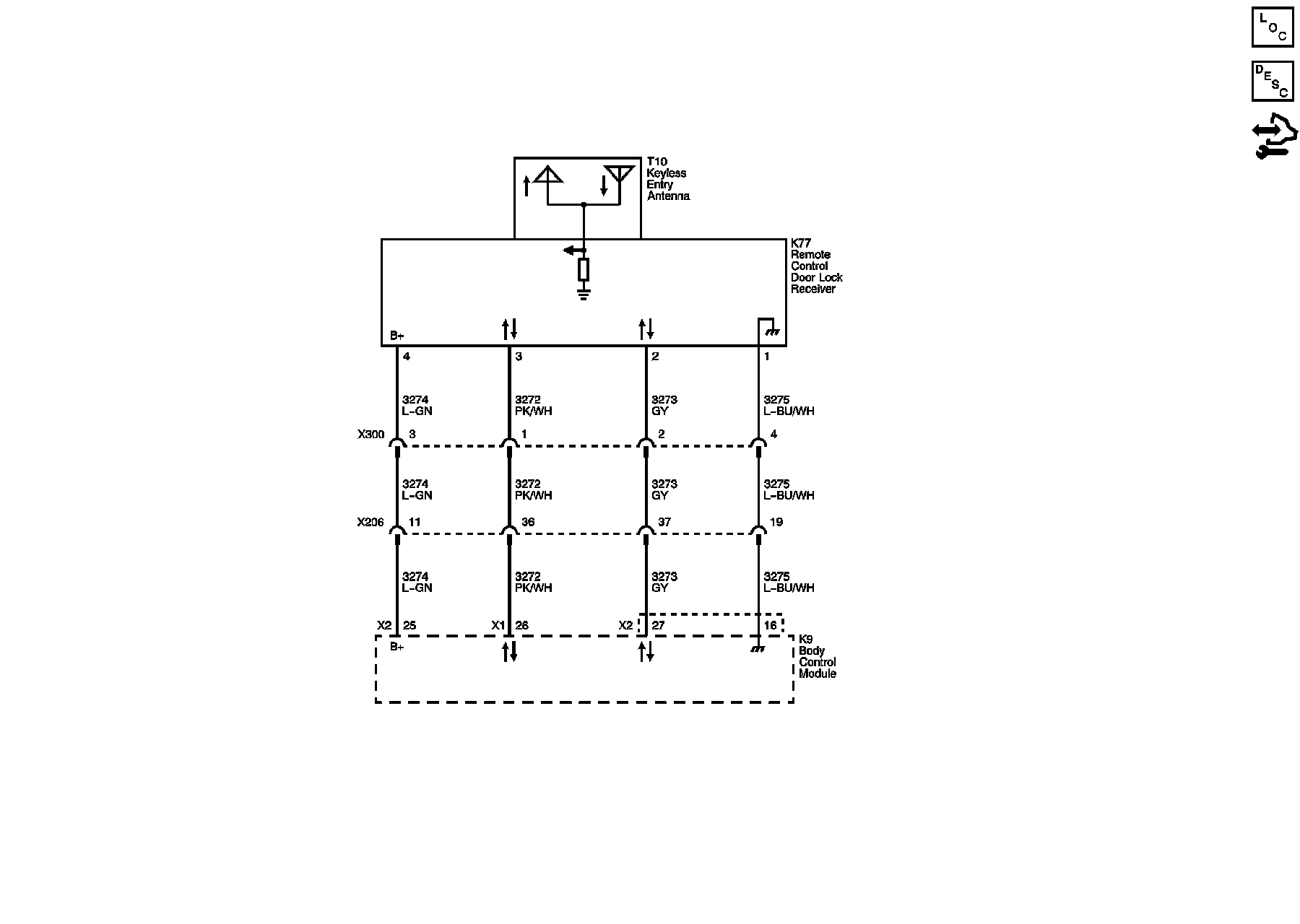

Remote Function Schematics

Keyless Entry





Master Electrical Component List
Keyless Entry System Description and Operation
Control Module References
