Throttle Position Sensor: Diagrams

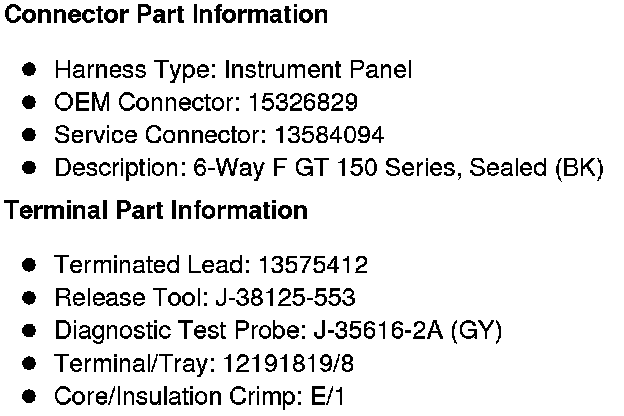

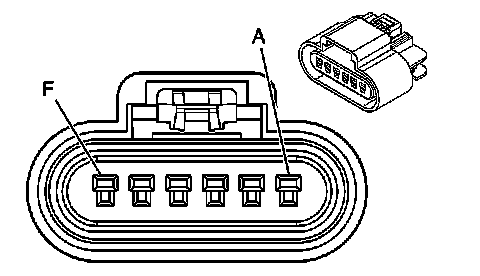

Component Connector End Views

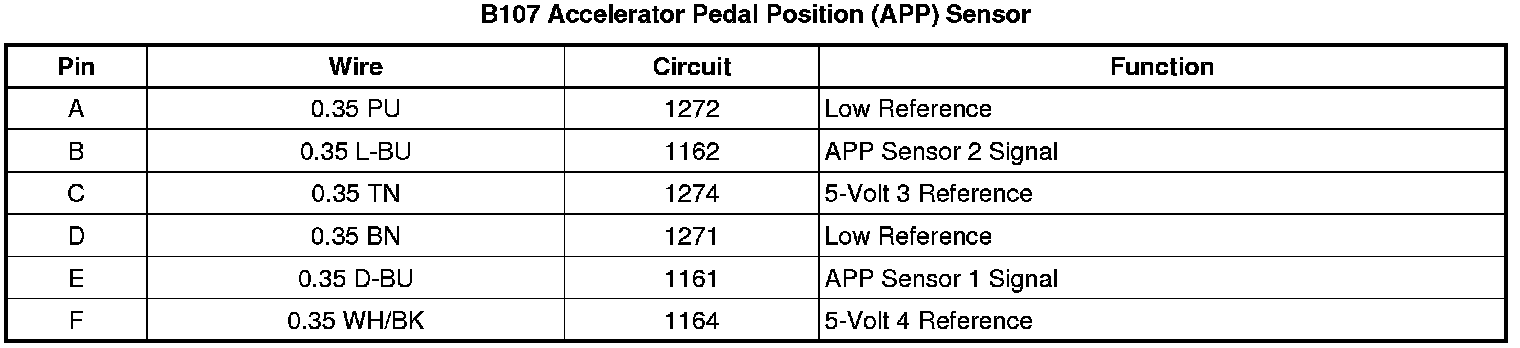

B107 Accelerator Pedal Position (APP) Sensor
