Exhaust System Components

Powertrain Component Views

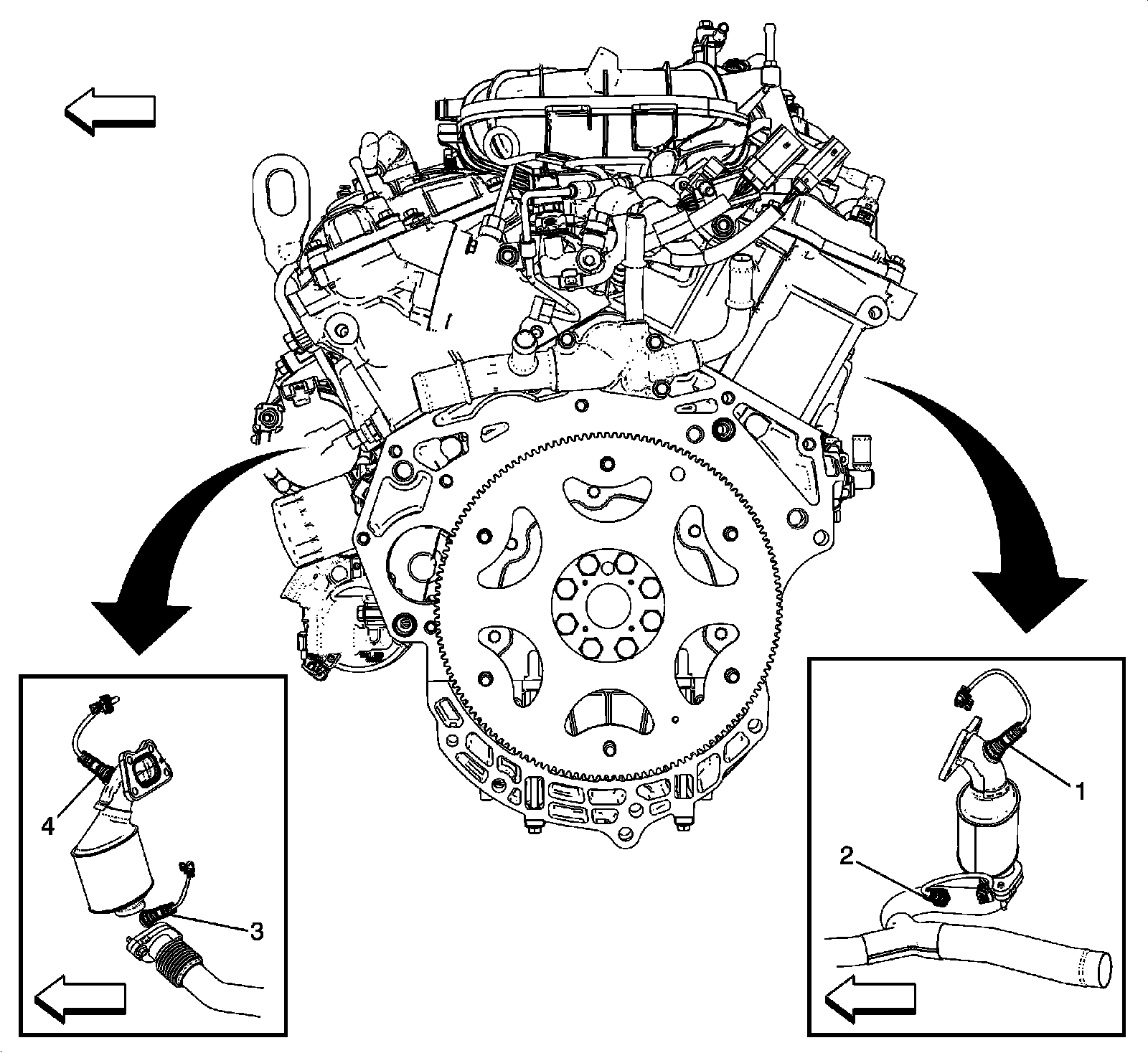

Exhaust System Components (LFW)





1 - B52C Heated Oxygen Sensor - Bank 1 Sensor 1

2 - B52D Heated Oxygen Sensor - Bank 1 Sensor 2

3 - B52F Heated Oxygen Sensor - Bank 2 Sensor 2

4 - B52E Heated Oxygen Sensor - Bank 2 Sensor 1
