Left Front Engine Components

Powertrain Component Views

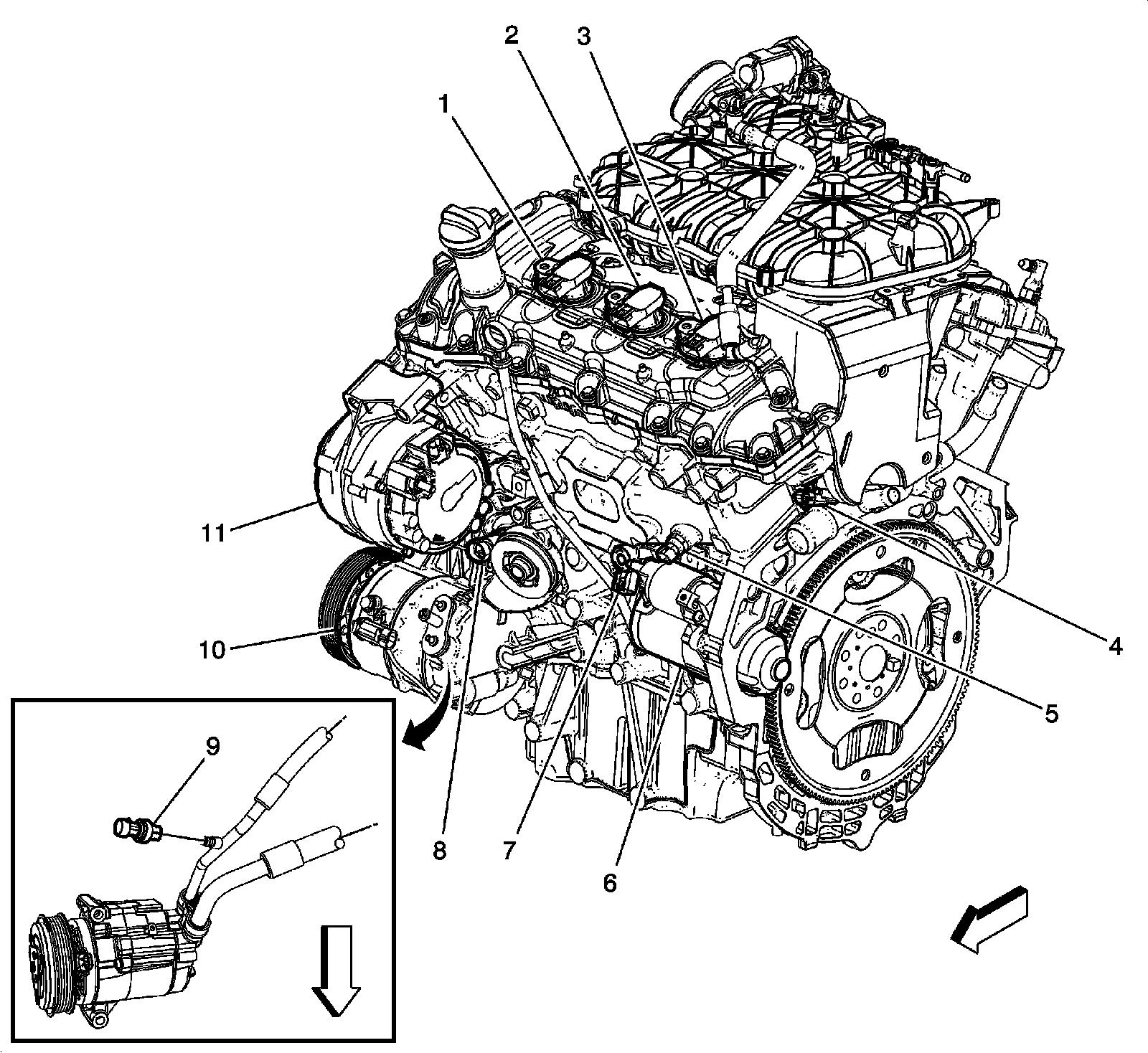

Left Front Engine Components (LFW)





1 - T8B Ignition Coil 2

2 - T8D Ignition Coil 4

3 - T8F Ignition Coil 6

4 - G18 High Pressure Fuel Pump

5 - B34 Engine Coolant Temperature Sensor

6 - M64 Starter Motor

7 - B68B Knock Sensor 2

8 - B37 Engine Oil Pressure Switch

9 - B1 A/C Refrigerant Pressure Sensor

10 - Q2 A/C Compressor Clutch

11 - G13 Generator
