Liftgate Control Module (TB5)

Luggage Compartment/Rear of Vehicle Component Views

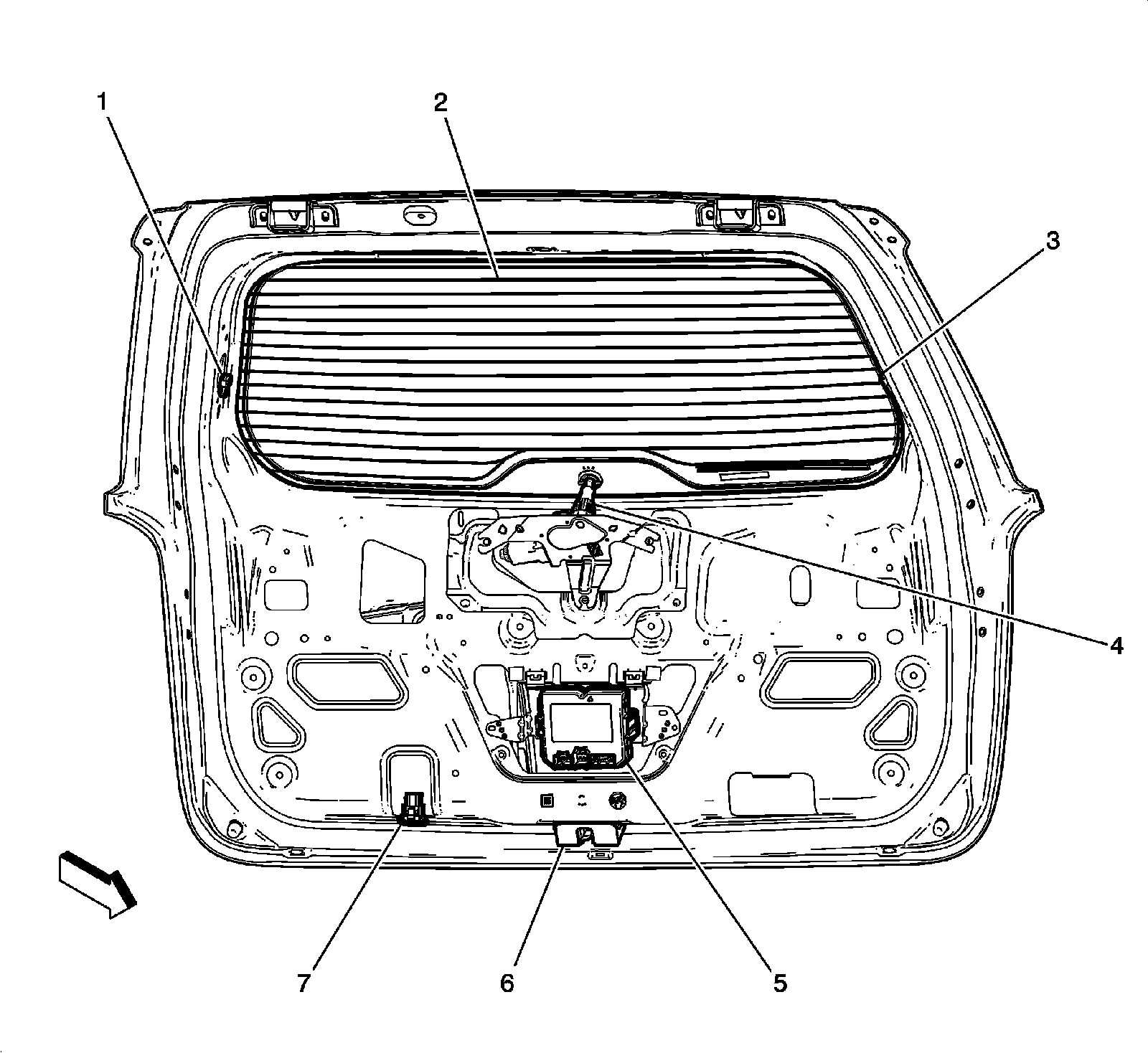

Liftgate Components





1 - B71R Liftgate Object Sensor - Right (TB5)

2 - E18 Rear Defogger Grid

3 - B71L Liftgate Object Sensor - Left (TB5)

4 - M45 Rear Wiper Motor

5 - K39 Liftgate Control Module (TB5)

6 - A23C Liftgate Latch Assembly

7 - B70 Liftgate Close Switch (TB5)
