Cellular Phone Microphone

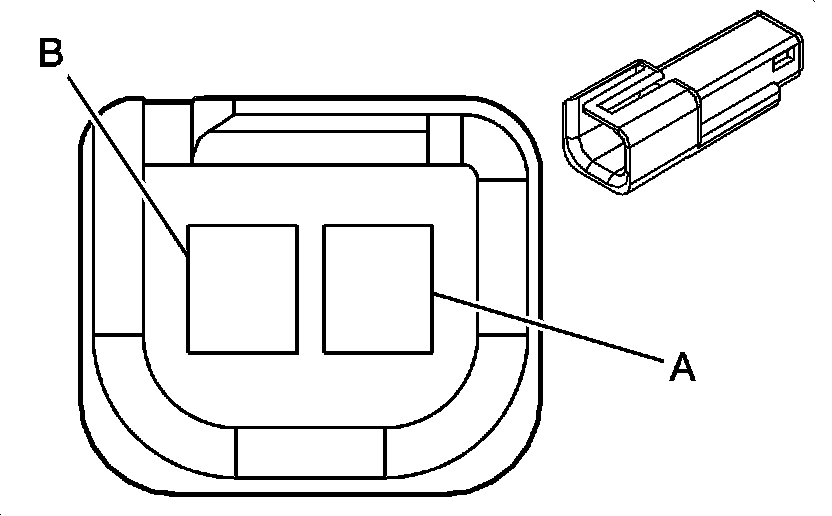

Component Connector End Views

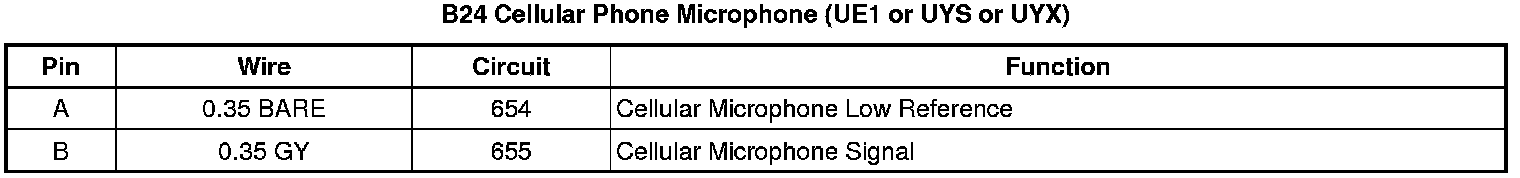

B24
Cellular Phone Microphone
(UE1 or UYS or UYX)
