Power Mirror Control Module

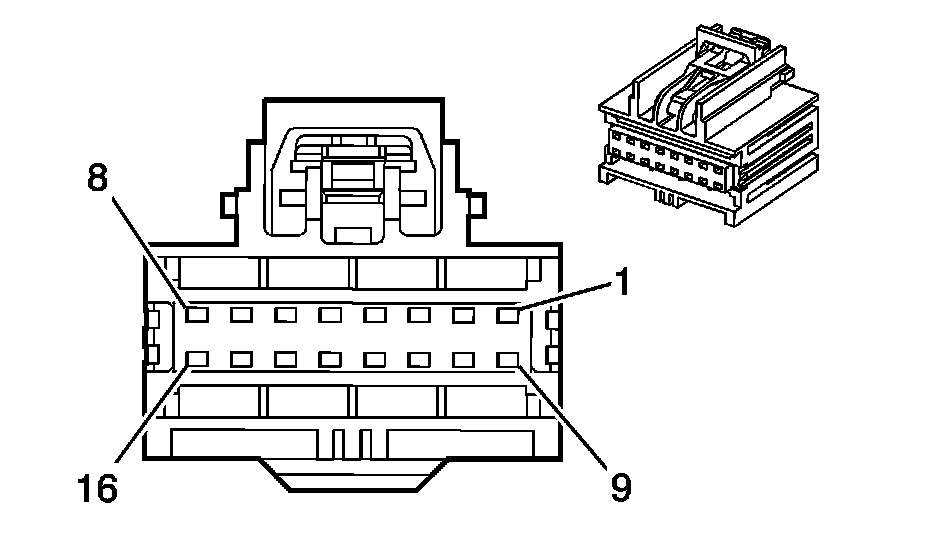

Component Connector End Views

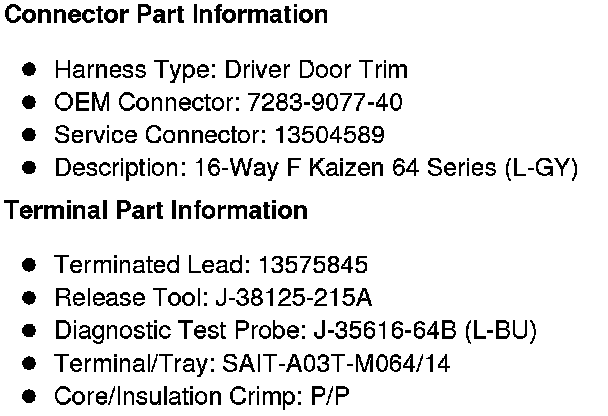

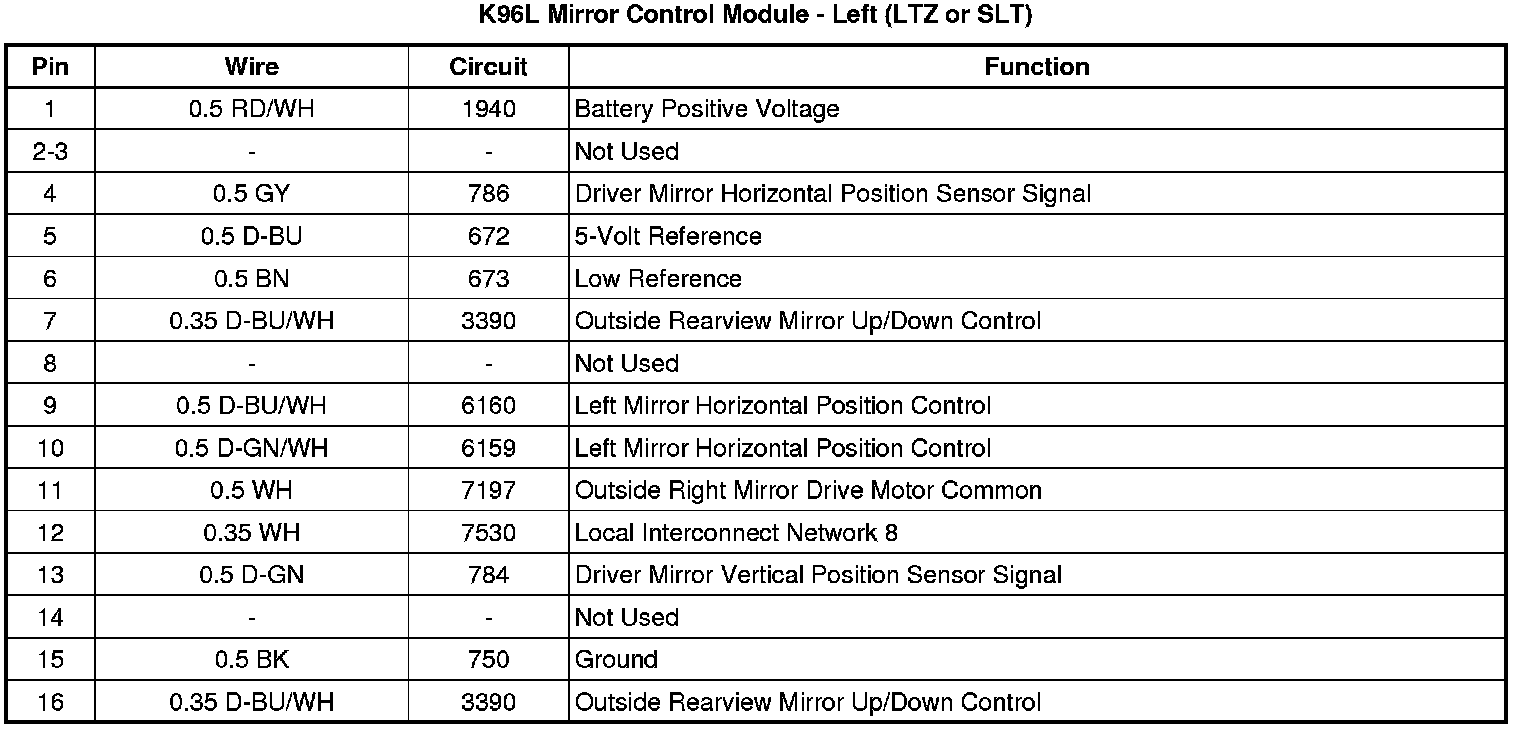

K96L Mirror Control Module - Left (LTZ or SLT)
