Power Trunk / Liftgate Control Module

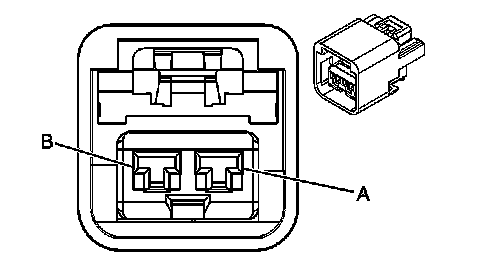

Component Connector End Views

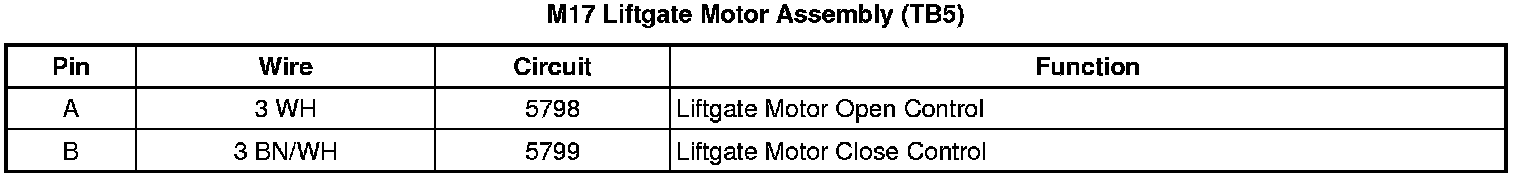

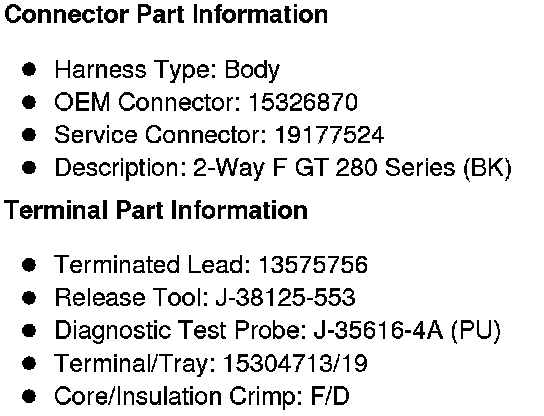

M17 Liftgate Motor Assembly (TB5)
