Power Steering Control Module X1

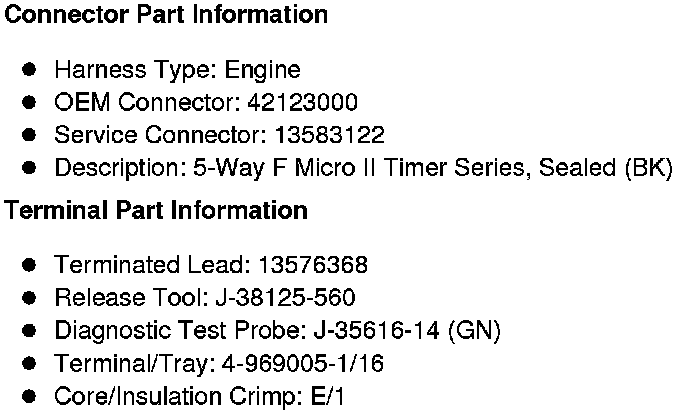

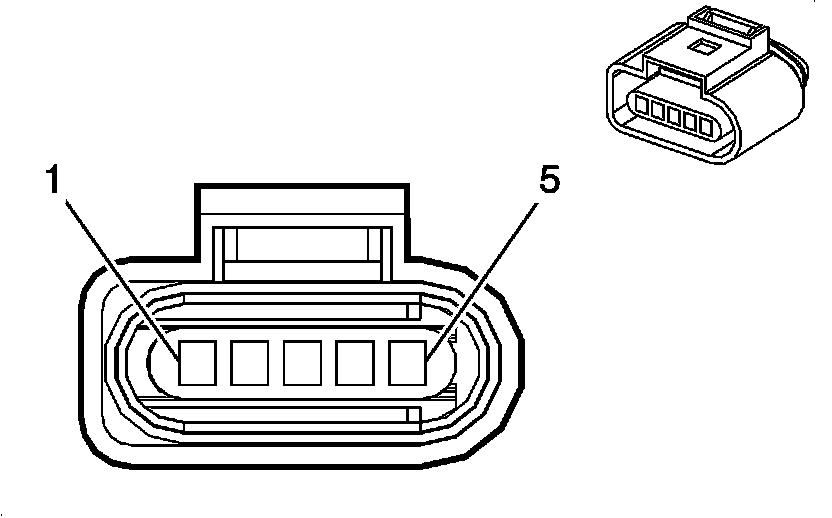

Component Connector End Views

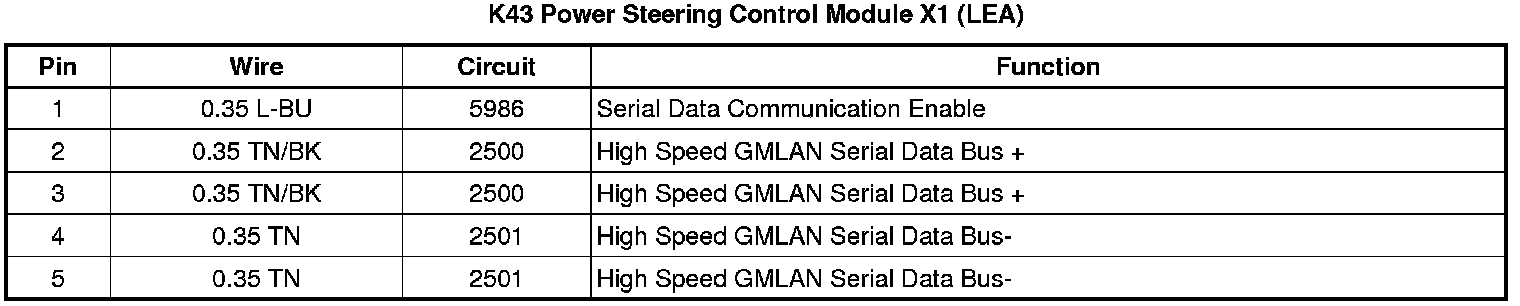

K43 Power Steering Control Module X1 (LEA)
