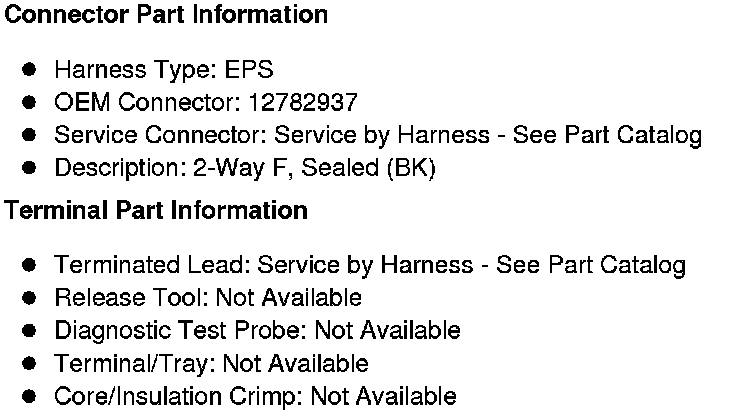

Power Steering Control Module X2

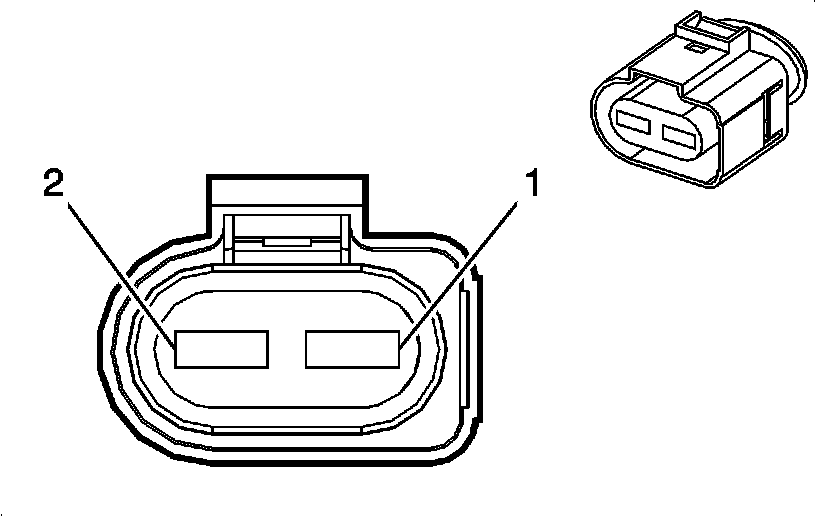

Component Connector End Views

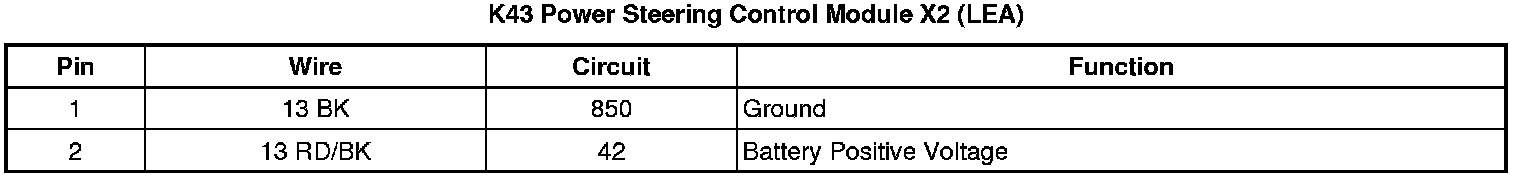

K43 Power Steering Control Module X2 (LEA)
