Blower Motor Control Module

Instrument Panel/Center Console Component Views

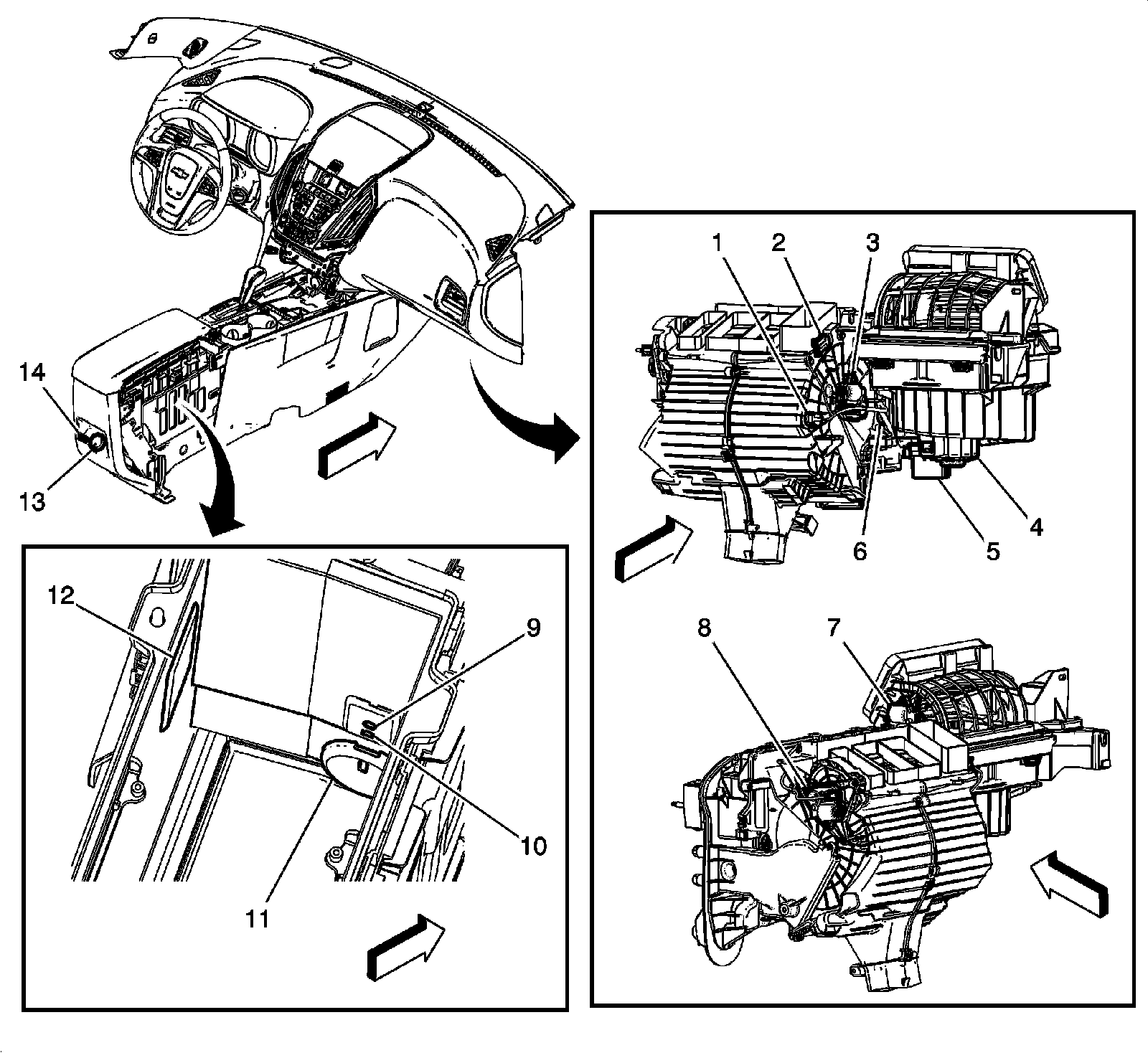

HVAC System and Center Console Components





1 - B7E Air Temperature Sensor - Duct Right Lower

2 - B7J Air Temperature Sensor - Duct Right Upper

3 - M6 Air Temperature Door Actuator

4 - M8 Blower Motor

5 - K8 Blower Motor Control Module

6 - B39 A/C Evaporator Temperature Sensor

7 - M46 Air Recirculation Door Actuator

8 - M37 Mode Door Actuator

9 - X83 Auxiliary Audio Input X1 (without UWG)

10 - X83 Auxiliary Audio Input X2 (without UWG)

11 - X80A Accessory Power Receptacle - Center Console 1

12 - E28 Center Console Compartment Lamp (LT, LTZ, SLE2, or SLT)

13 - X80B Accessory Power Receptacle - Center Console 2

14 - X82 Audio/Video Input Adapter (UWG)
