Left Front Engine Components

Powertrain Component Views

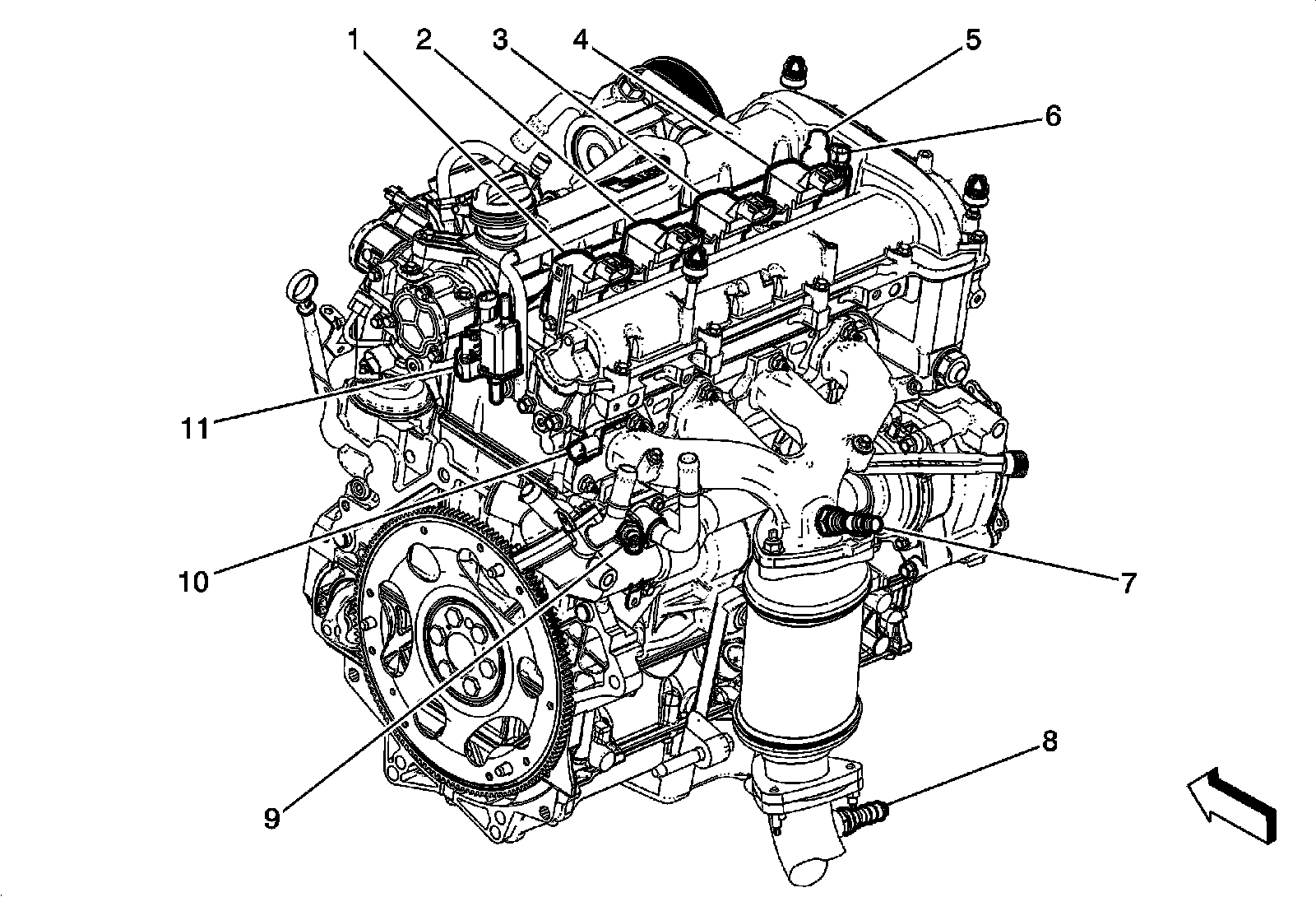

Left Rear Engine Components (LEA)





1 - T8D Ignition Coil 4

2 - T8C Ignition Coil 3

3 - T8B Ignition Coil 2

4 - T8A Ignition Coil 1

5 - Q6F Camshaft Position Actuator Solenoid Valve - Intake

6 - Q6E Camshaft Position Actuator Solenoid Valve - Exhaust

7 - B52A Heated Oxygen Sensor 1

8 - B52B Heated Oxygen Sensor 2

9 - B34 Engine Coolant Temperature Sensor

10 - B23E Camshaft Position Sensor - Exhaust

11 - Q12 Evaporative Emission Purge Solenoid Valve
