Knock Sensor: Locations

Powertrain Component Views

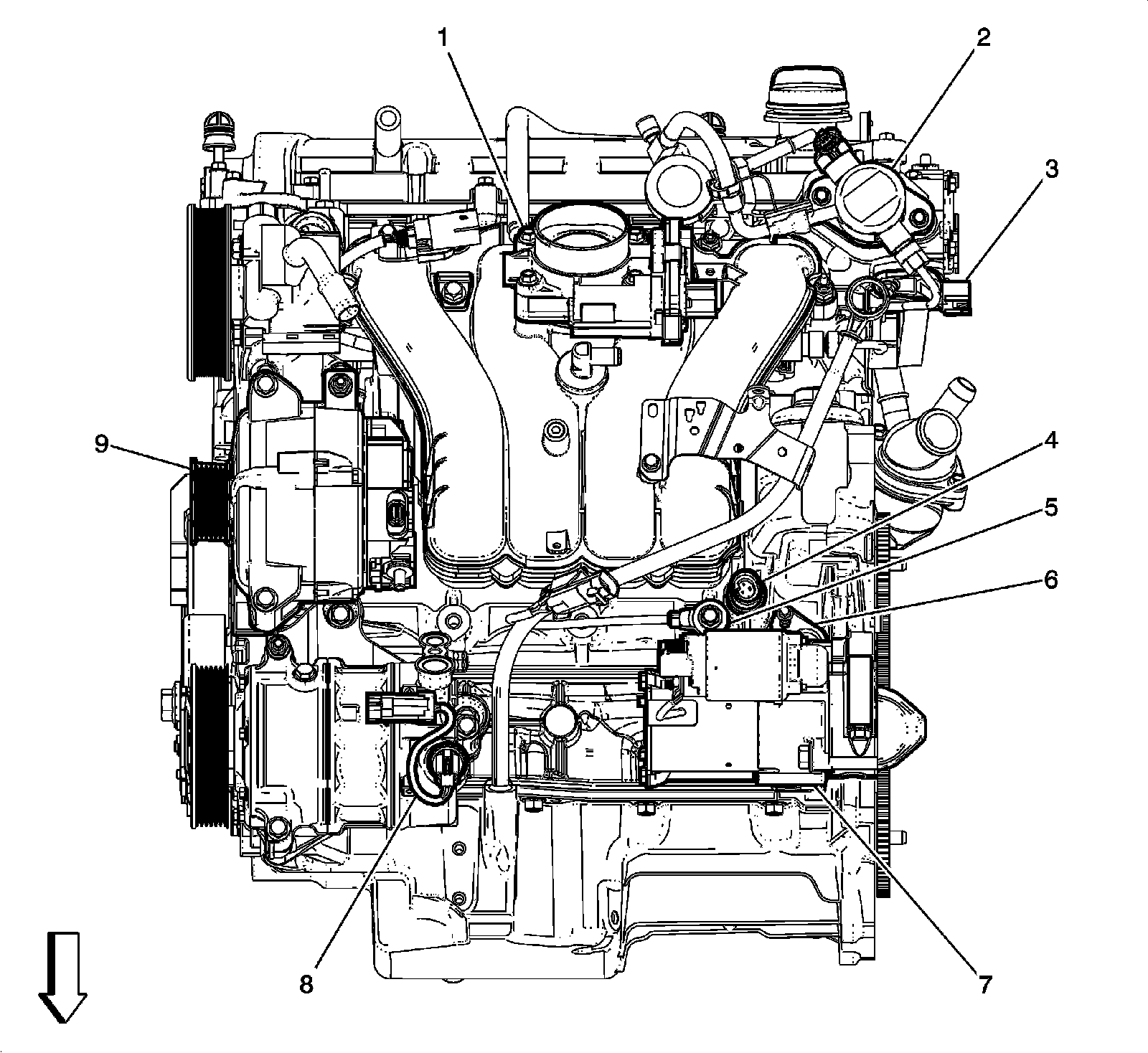

Front Engine Components (LEA 1 of 2)





1 - Q38 Throttle Body

2 - G18 High Pressure Fuel Pump

3 - B23F Camshaft Position Sensor - Intake

4 - B37 Engine Oil Pressure Switch

5 - B68 Knock Sensor

6 - B26 Crankshaft Position Sensor

7 - M64 Starter Motor

8 - Q2 A/C Compressor Clutch

9 - G13 Generator
