Throttle Position Sensor: Locations

Instrument Panel/Center Console Component Views

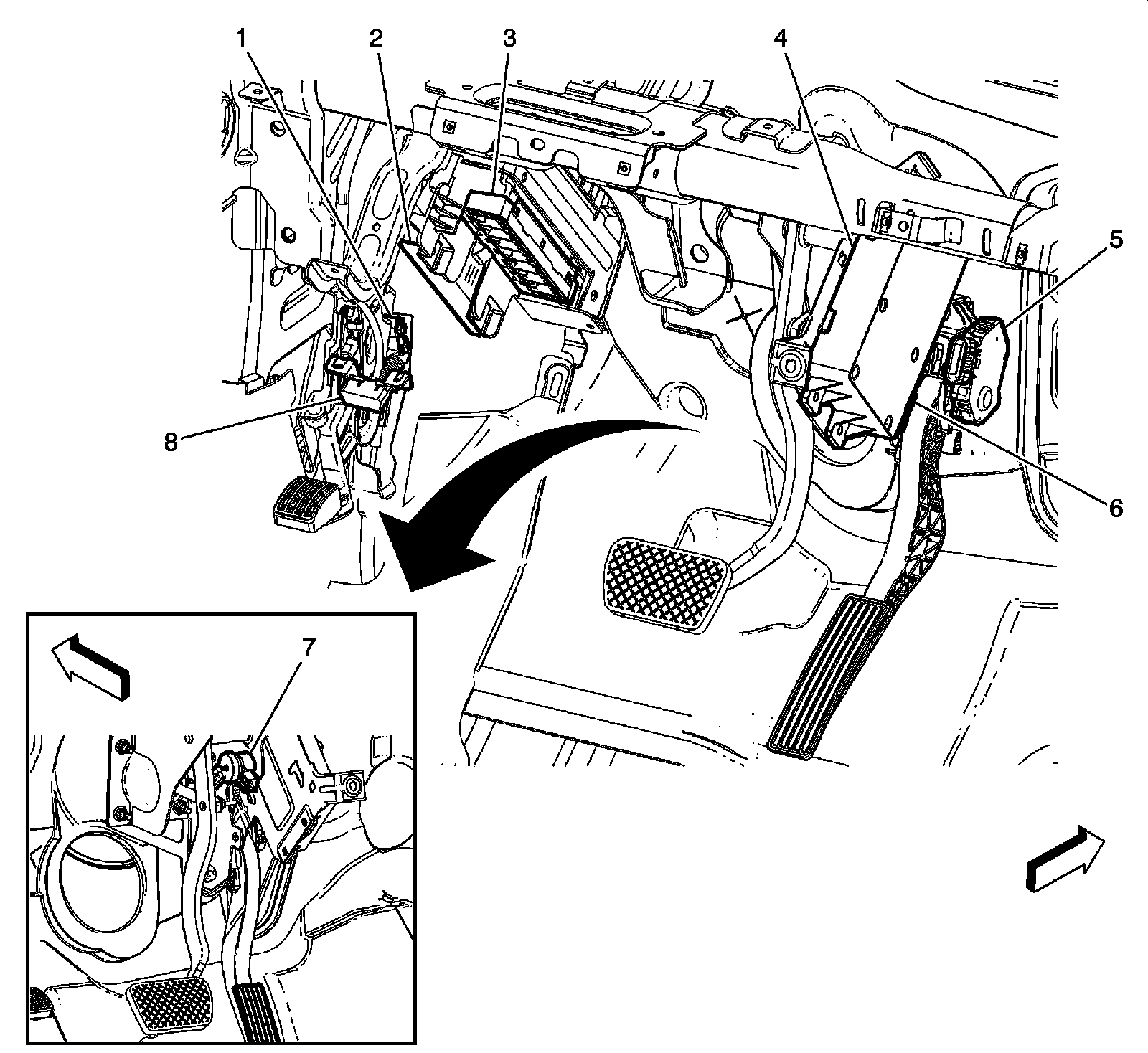

Lower Left of the Instrument Panel Components





1 - B80 Park Brake Switch

2 - T3 Audio Amplifier

3 - K9 Body Control Module

4 - K73 Telematics Communication Interface Control Module (UE1)

5 - B107 Accelerator Pedal Position Sensor

6 - T4S Wireless Communication Antenna - Bluetooth (UE1 with UPF)

7 - B22 Brake Pedal Position Sensor

8 - X84 Data Link Connector
