Auxiliary Body Control Module Replacement (Export)

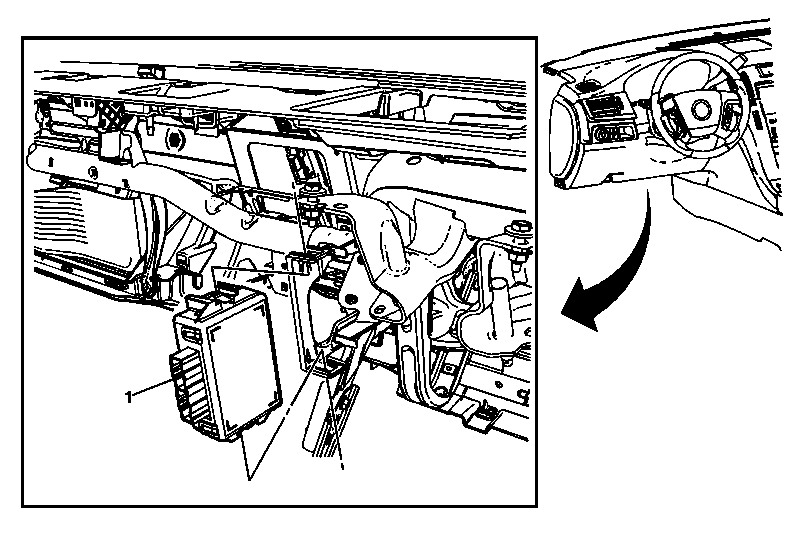

Fig 1: Auxiliary Body Control Module (Export)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the knee bolster. Refer to Knee Bolster Replacement (Except Cadillac) , Knee Bolster Replacement (Cadillac)
1	Auxiliary Body Control Module Procedure Disconnect the electrical connectors. Press on the tabs to release the auxiliary body control module. If a replacement module is installed, program the module. Refer to Control Module References .

Callout

Component Name

Auxiliary Body Control Module

Procedure

Disconnect the electrical connectors.
Press on the tabs to release the auxiliary body control module.
If a replacement module is installed, program the module. Refer to Control Module References .
