Subsystem References (2 Of 3)

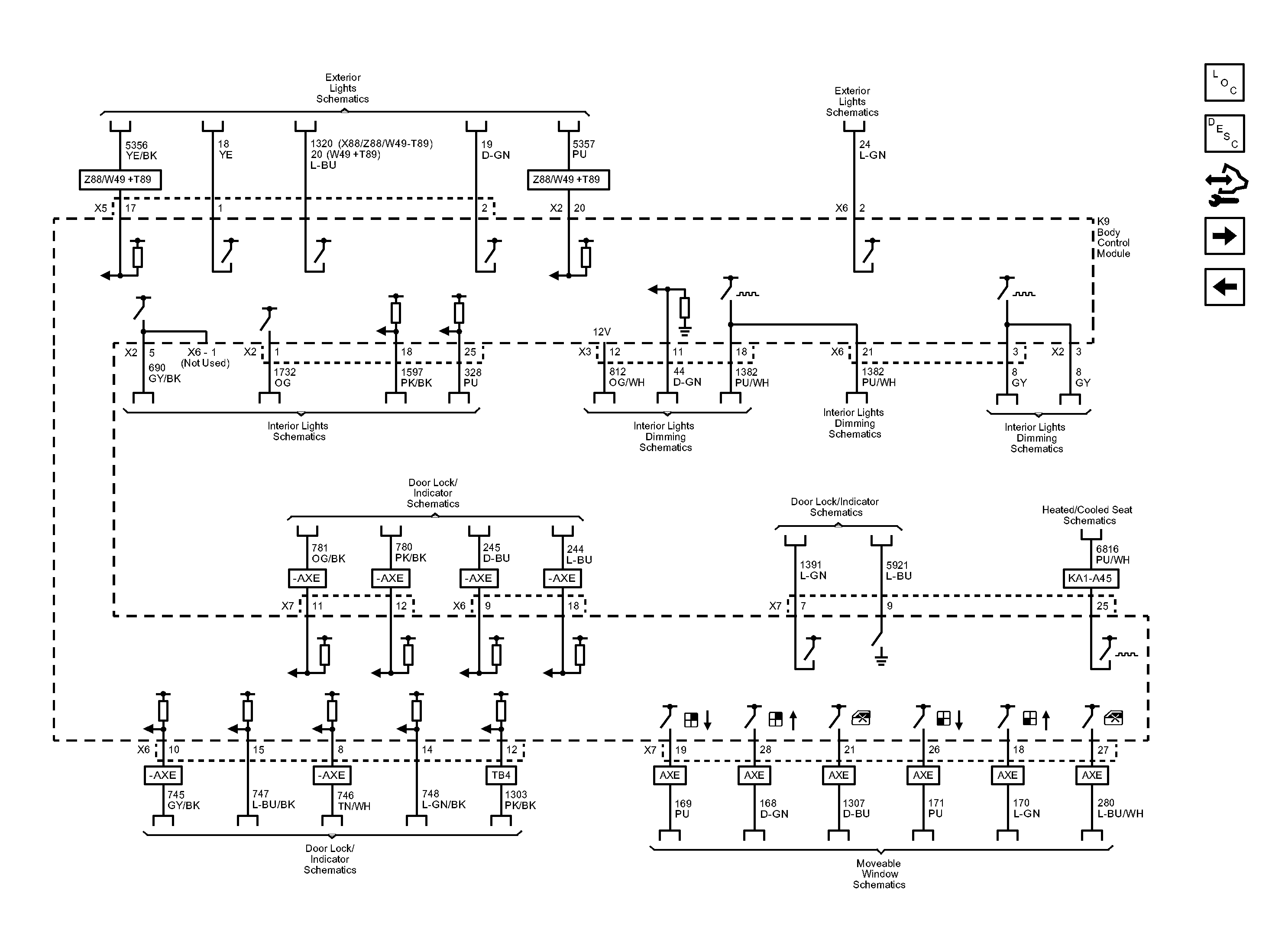

Fig 1: Subsystem References Wiring Schematic (2 Of 3)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
