Rear Differential Clutch Control Module X2 (F46)

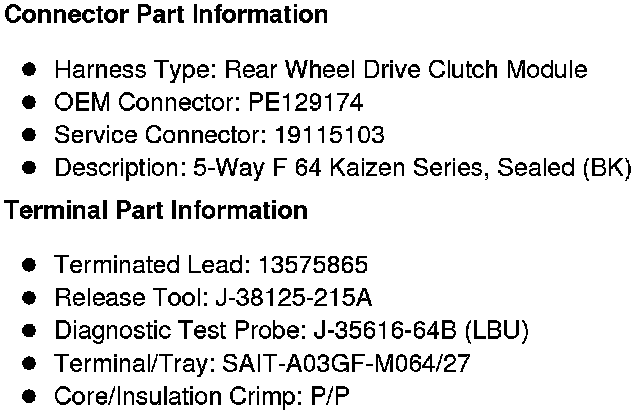

Component Connector End Views

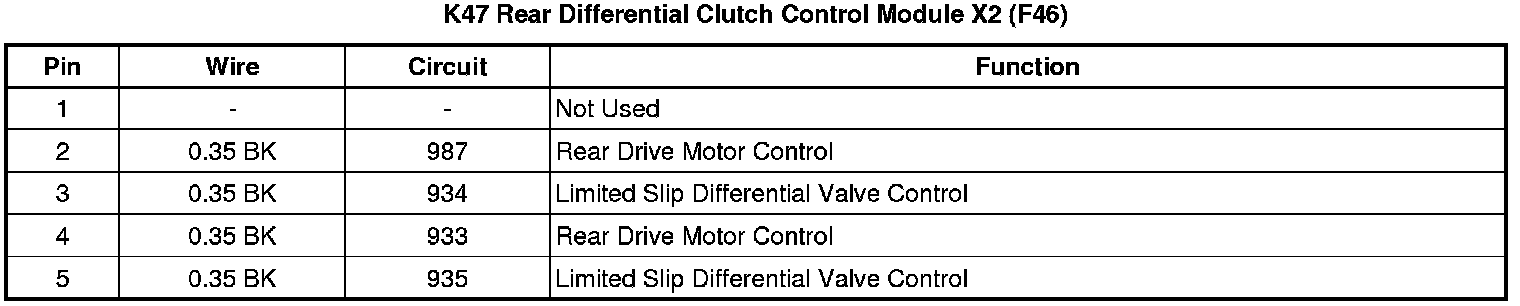

K47 Rear Differential Clutch Control Module X2 (F46)
