Temperature Versus Resistance - Intake Air Temperature Sensor (Hitatchi Sensor)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

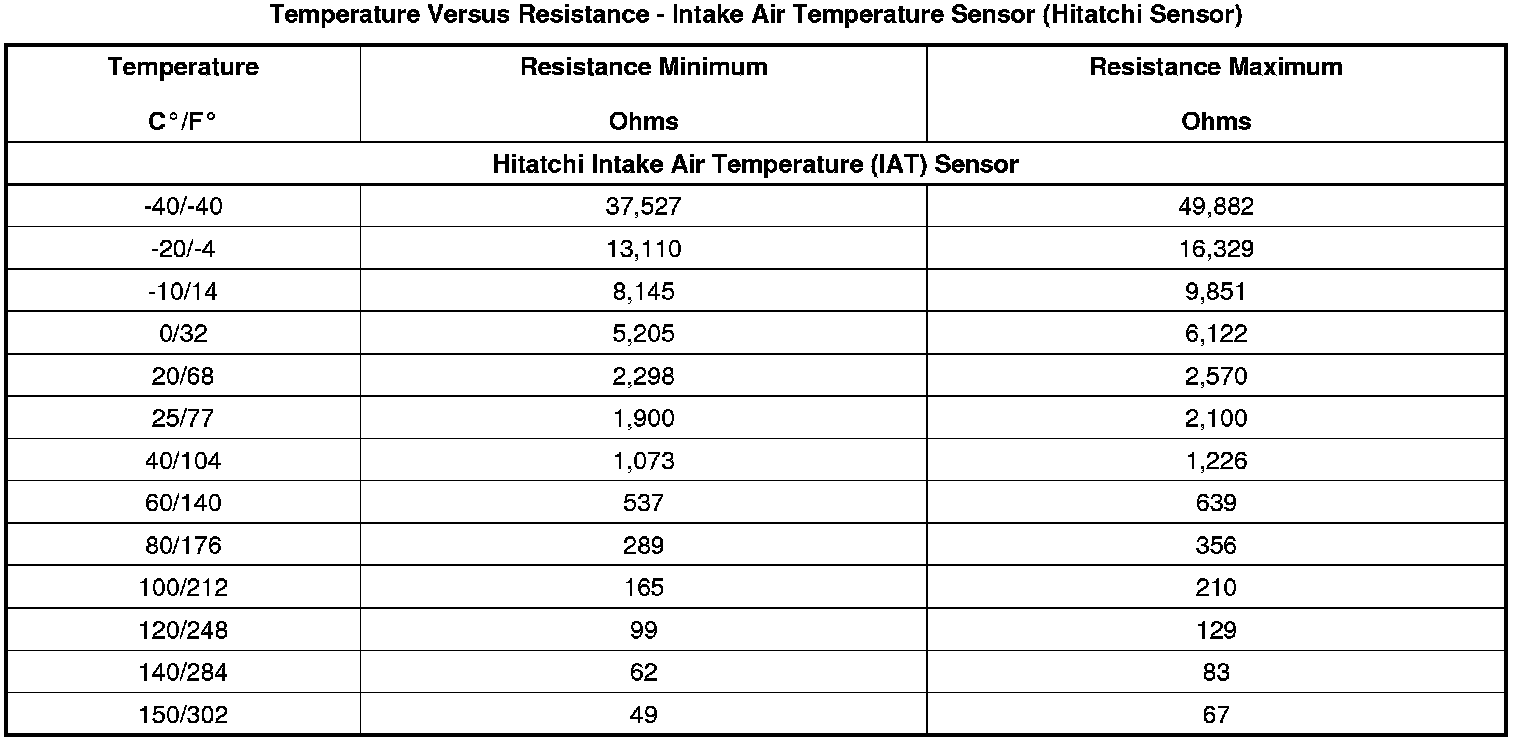

Temperature Versus Resistance - Intake Air Temperature Sensor (Hitatchi Sensor)
Temperature Versus Resistance - Intake Air Temperature Sensor (Hitatchi Sensor)
