Camshaft Gear/Sprocket

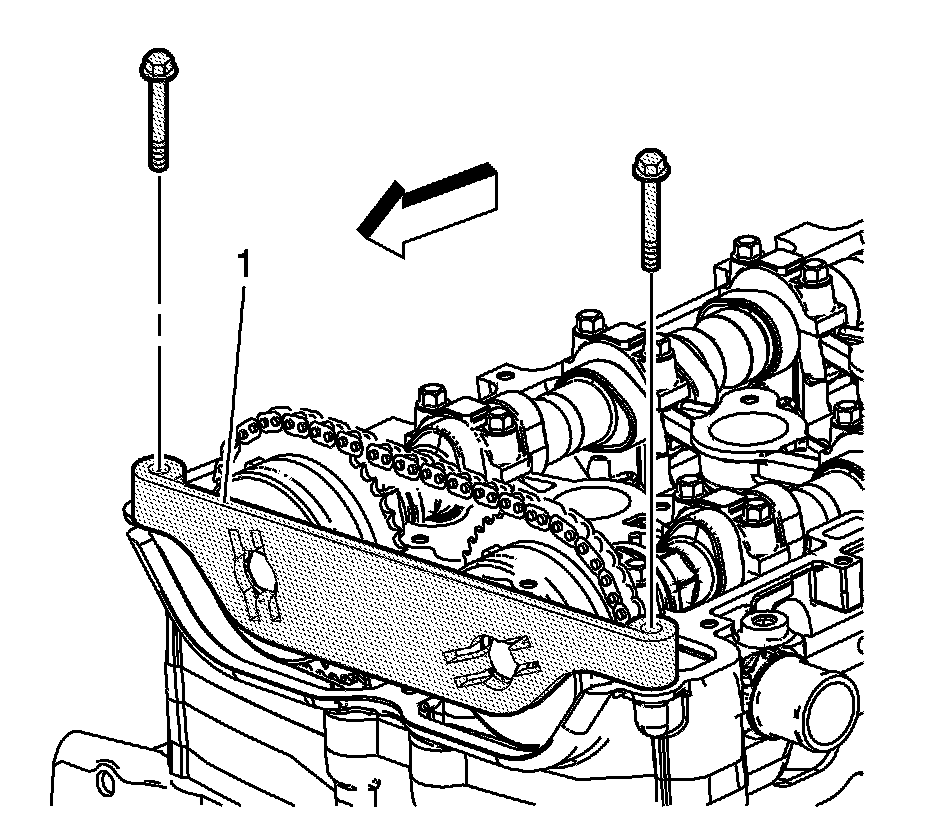

Install EN-48953 - locking tool (1) and tighten the bolts into the cylinder head to 10 Nm (89 lb in).
Using a torque wrench, tighten the intake camshaft actuator bolt to 30 Nm (22 lb ft), plus 100 degrees using the EN 45059 - meter.
Using a torque wrench, tighten the exhaust camshaft actuator bolt to 30 Nm (22 lb ft), plus 100 degrees using the EN 45059 - meter.
