Intake Manifold

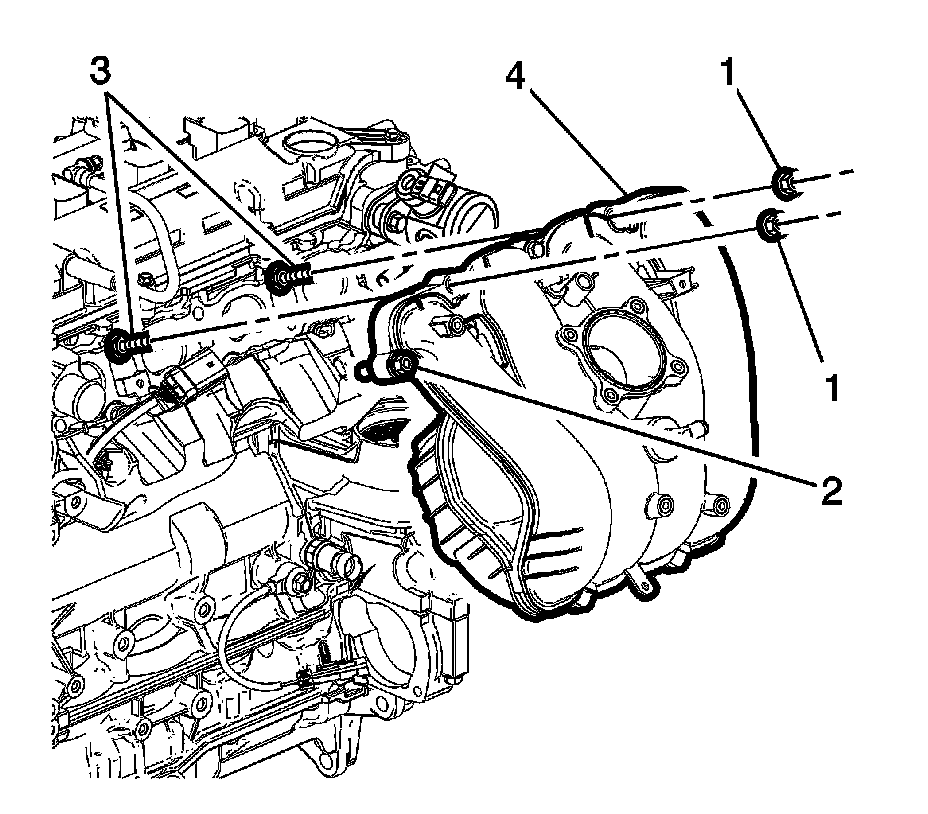

Position the intake manifold (4) and hand start the bolts (2).
Install the intake manifold studs (3) and tighten to 6 Nm (53 lb in).
Tighten the bolts (2) and nuts (1) in sequence to 10 Nm (89 lb in).
Position the intake manifold (4) and hand start the bolts (2).
Install the intake manifold studs (3) and tighten to 6 Nm (53 lb in).
Tighten the bolts (2) and nuts (1) in sequence to 10 Nm (89 lb in).
