Side Object Sensor Module - Left (UFT)

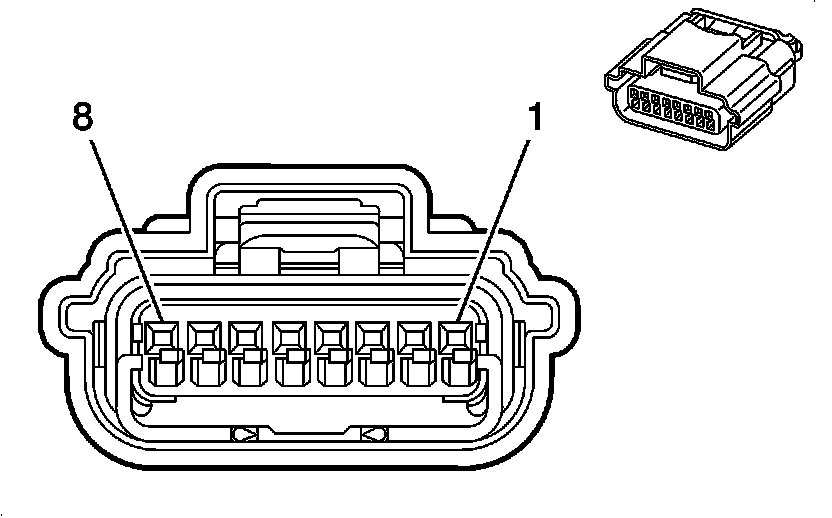

Component Connector End Views

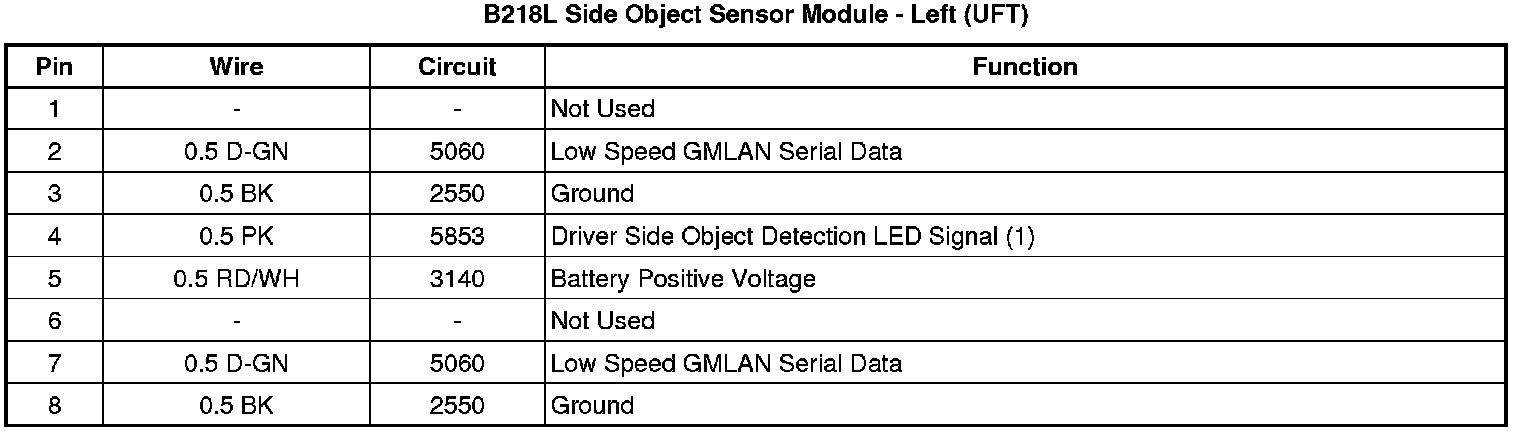

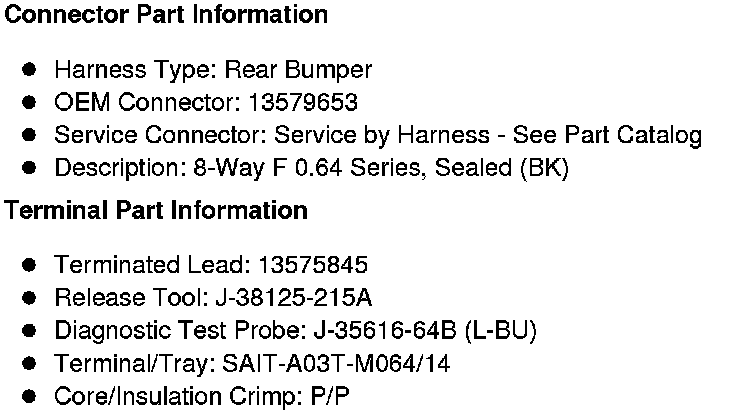

B218L Side Object Sensor Module - Left (UFT)
