Exterior Light References

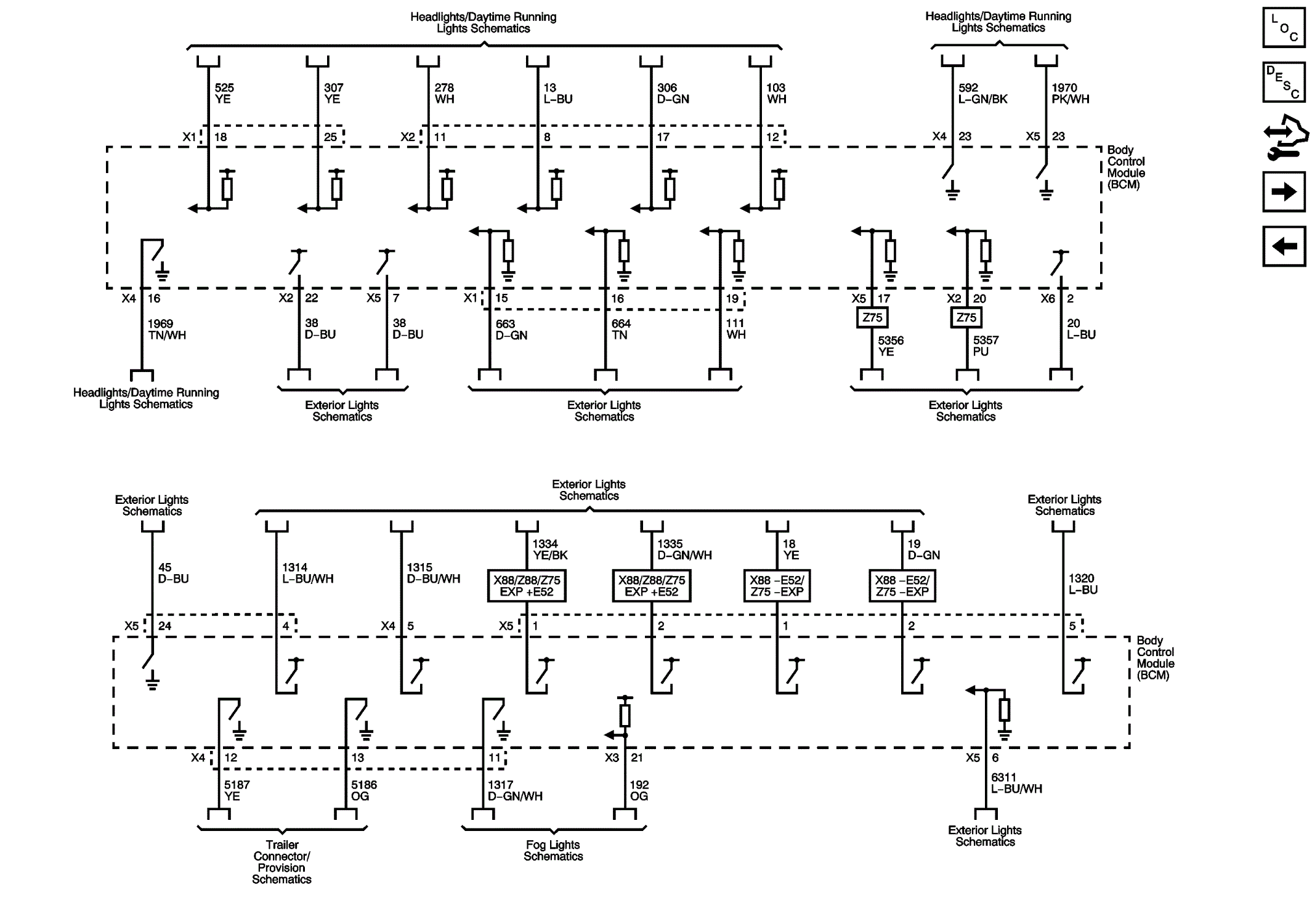

Fig 1: Exterior Light References
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
