Enable Serial Data Wiring Schematics

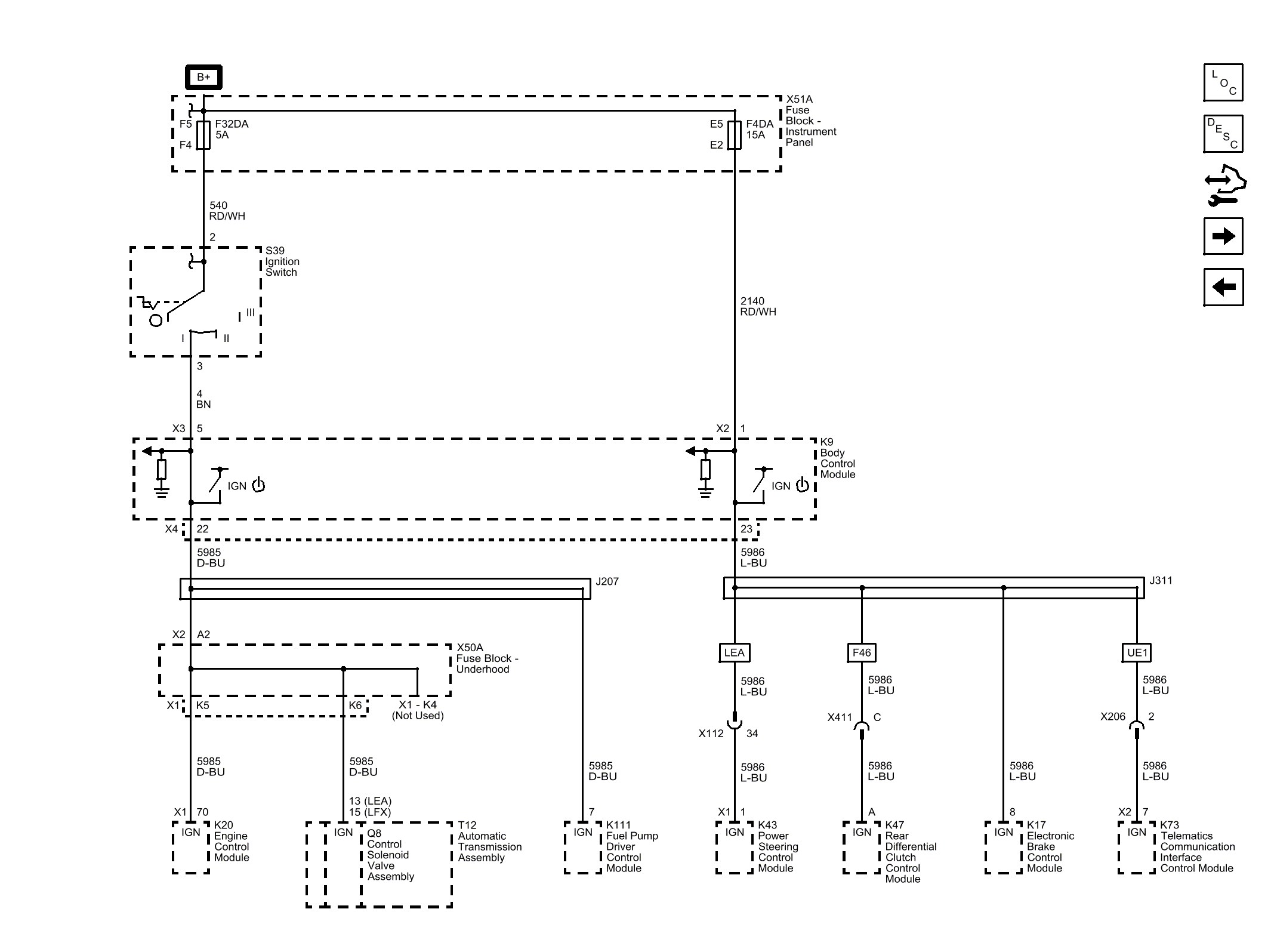

Fig 1: Enable Serial Data Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
