Powertrain Expansion Bus Wiring Schematics

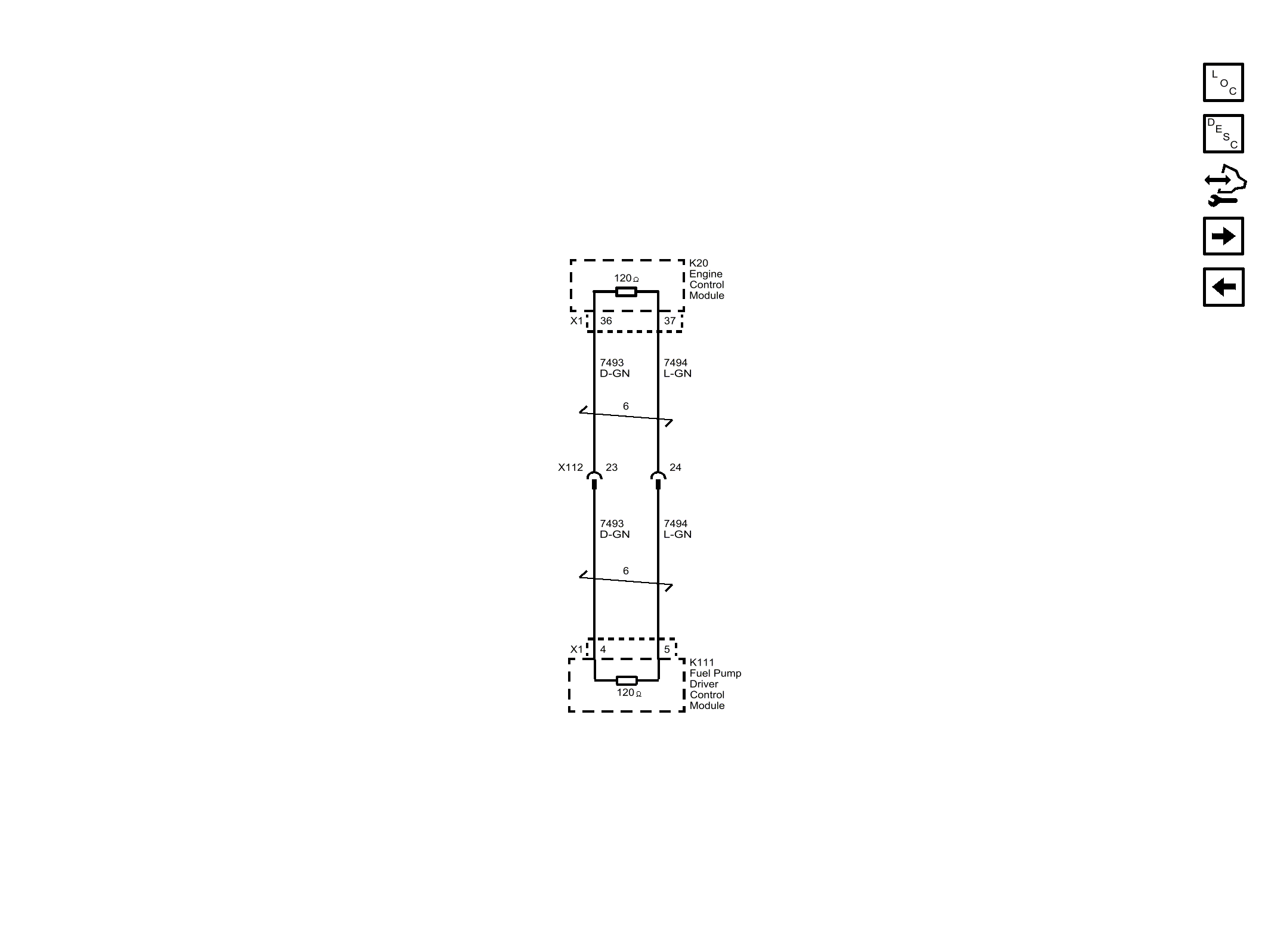

Fig 1: Powertrain Expansion Bus Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
