Data Communication Wiring Schematics
>>
High Speed GMLAN
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
High Speed GMLAN

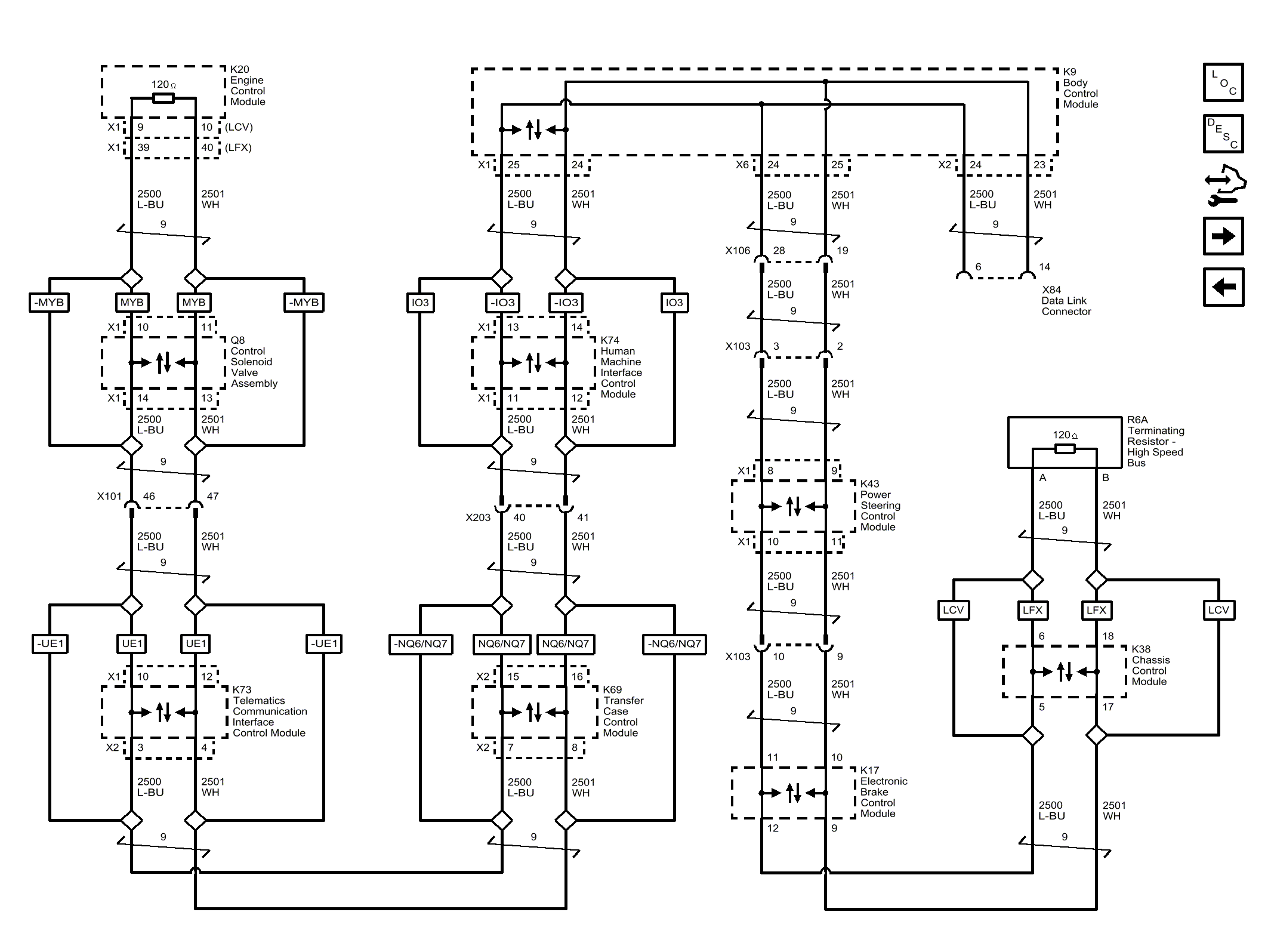

Fig 1: High Speed GMLAN
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
