Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove Spare Tire.
  3. Disconnect the electrical connector.

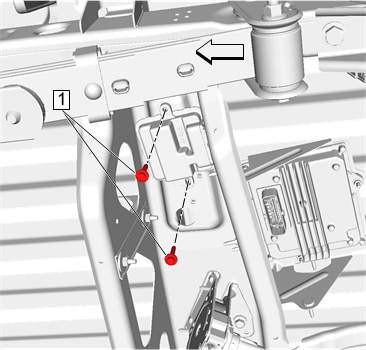

    4. Fig 1: Trailer Brake Power Control Module Bolt
    GM4500339Courtesy of GENERAL MOTORS COMPANY
  4. Remove Trailer Brake Power Control Module Bolt (1).

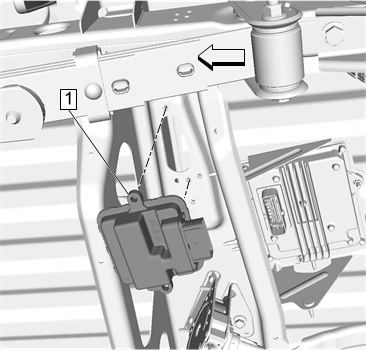

    5. Fig 2: Trailer Brake Power Control Module
    GM4500353Courtesy of GENERAL MOTORS COMPANY
  5. Remove Trailer Brake Power Control Module (1).
