Body Control Module Replacement

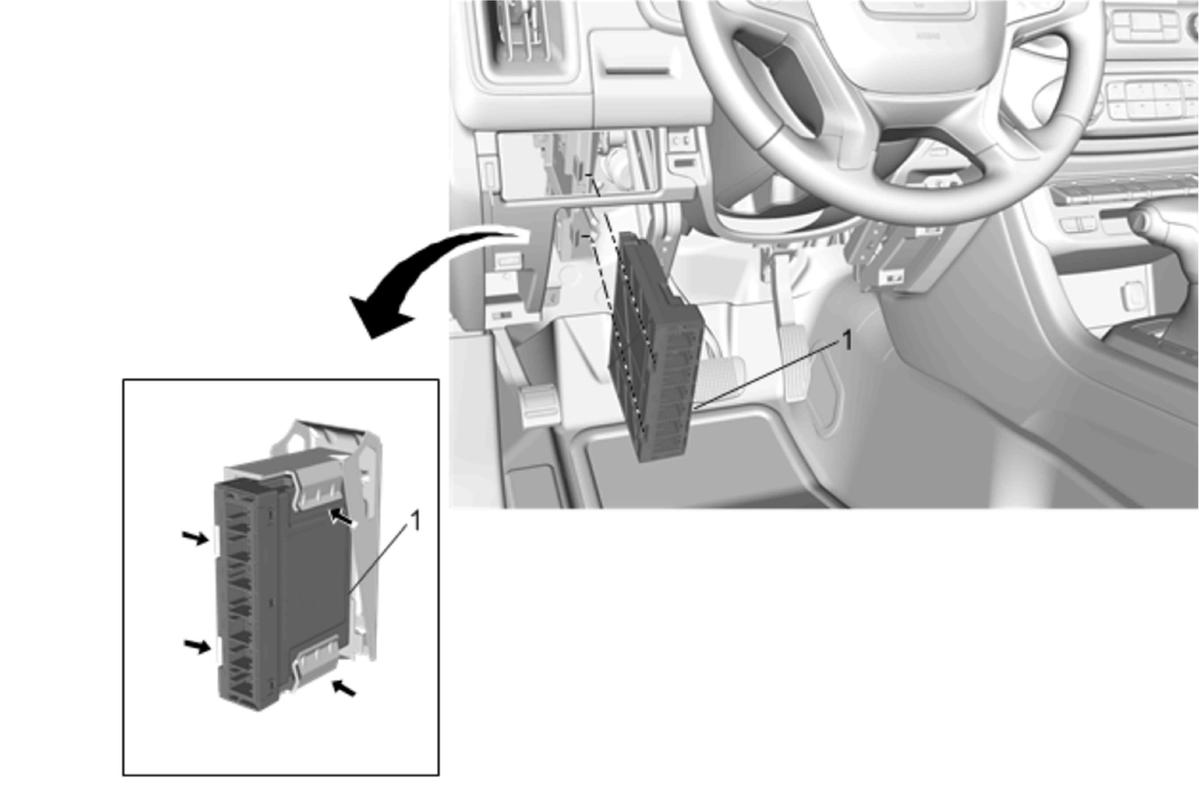

Fig 1: Body Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel knee bolster outer deflector. Refer to Instrument Panel Knee Bolster Deflector Replacement .
1	Body Control Module Procedure Disconnect the electrical connectors. Press on the tabs to release the body control module from the bracket. If a replacement module is installed, program the module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the instrument panel knee bolster outer deflector. Refer to Instrument Panel Knee Bolster Deflector Replacement .

Body Control Module

Procedure

Disconnect the electrical connectors.
Press on the tabs to release the body control module from the bracket.
If a replacement module is installed, program the module. Refer to Control Module References .
