Linear Interconnect Network
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Linear Interconnect Network

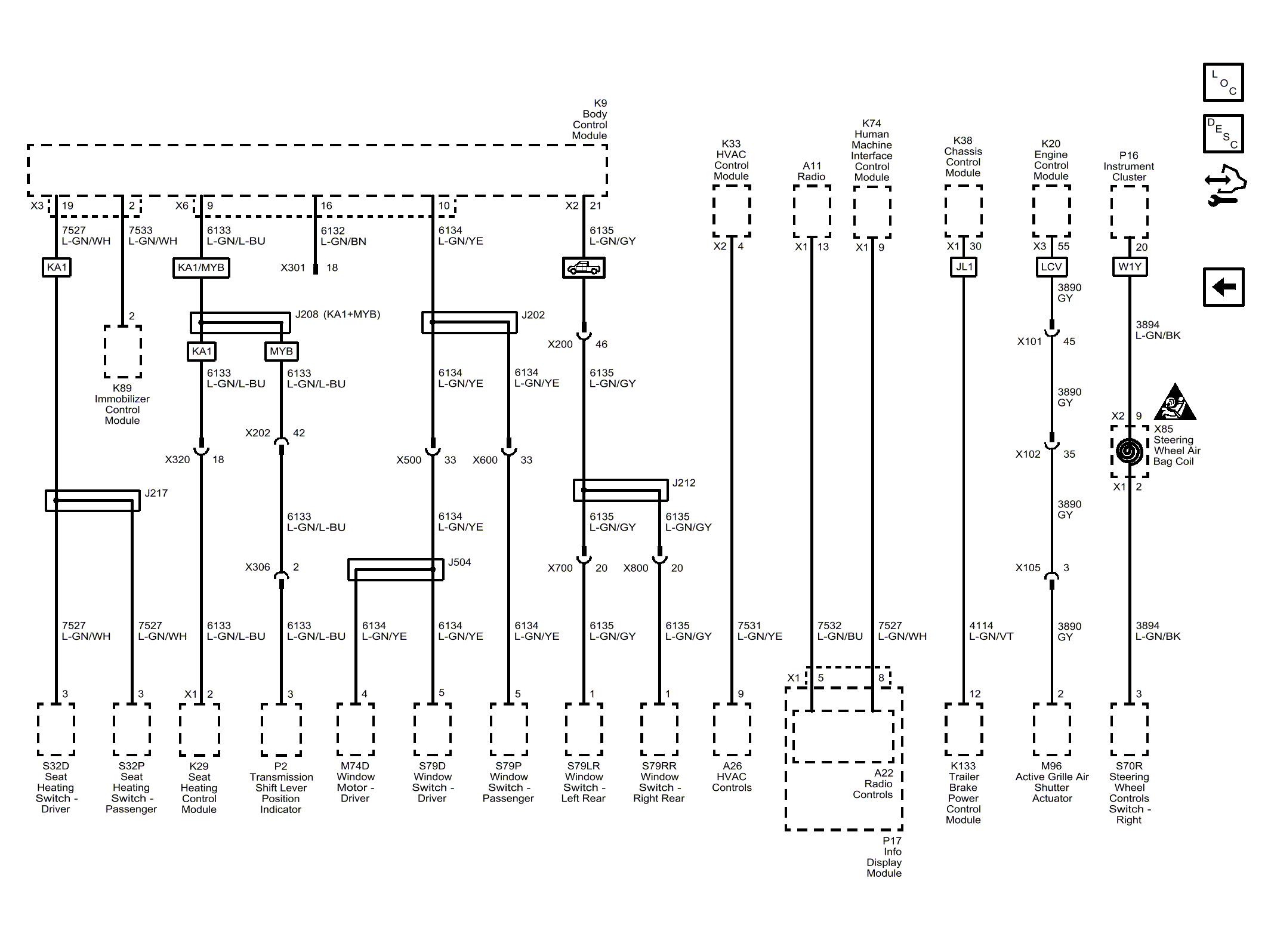

Fig 1: Linear Interconnect Network
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
